Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32758G2306K000CAP FILM 30UF 10% 500VDC RADIAL |
5,747 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 3.1 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
|
EFDKS1AJ306F024DHCAP EFDKS 1000VDC 30UF J 4LEADS |
5,423 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 9.8 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | - |
|
|
B32676E3306K000CAP FILM 30UF 10% 300VDC RADIAL |
7,873 |
|
Datasheet |
Radial | 30 µF | ±10% | - | 300V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|

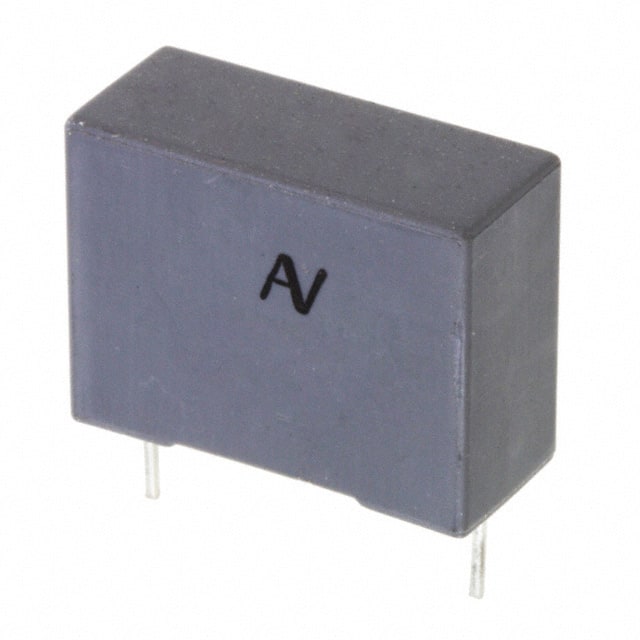

R71MW5220AA00KCAP FILM 22UF 10% 420VDC RADIAL |
5,099 |
|
Datasheet |
Radial | 22 µF | ±10% | 220V | 420V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
|
C4ATJBU3470A1AJCAP FILM METAL RAD POLYPROP |
7,877 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 14.3 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.394" W (32.00mm x 10.00mm) | 0.787" (20.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
BLH206K701B064DC LINK, THB, 85/85, AEC-Q200 |
6,087 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 7.5 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.488" (37.80mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
QAP2G475JRPCAP FILM 4.7UF 5% 400VDC AXIAL |
4,803 |
|
Datasheet |
Axial | 4.7 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.130" W, 0.748" T x 2.047" L (28.70mm, 19.00mm x 52.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
ALH335K451B064CAP FILM 3.3UF 450VAC RAD 4 LEAD |
3,756 |
|
Datasheet |
Radial - 4 Leads | 3.3 µF | ±10% | 450V | - | Polypropylene (PP) | 7.4 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.488" (37.80mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
BLH106K112B092DC LINK, THB, 85/85, AEC-Q200 |
2,371 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 9 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 0.945" W (42.50mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
BFC237510274CAP FILM 0.27UF 5% 630VDC RADIAL |
6,588 |
|
Datasheet |
Radial | 0.27 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.531" W (30.00mm x 13.50mm) | 1.043" (26.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
MKP1848C61010JP2CAP FILM 10UF 5% 1KVDC RADIAL |
7,829 |
|
Datasheet |
Radial | 10 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.516" (38.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
MKP383422200JPI2T0CAP FILM 0.22UF 5% 2KVDC RADIAL |
9,381 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383475100JPI2T0CAP FILM 0.75UF 5% 1KVDC RADIAL |
5,418 |
|
Datasheet |
Radial | 0.75 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383475100JPM2T0CAP FILM 0.75UF 5% 1KVDC RADIAL |
4,946 |
|
Datasheet |
Radial | 0.75 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383475100JPP2T0CAP FILM 0.75UF 5% 1KVDC RADIAL |
6,478 |
|
Datasheet |
Radial | 0.75 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
EFACA18J106E102LHCAP FILM 10UF 5% 180VAC RAD |
7,550 |
|
Datasheet |
Radial | 10 µF | ±5% | 180V | - | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.748" W (42.00mm x 19.00mm) | 1.299" (33.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
|
EFACA25J755E102LHCAP FILM 7.5UF 5% 250VAC RAD |
8,319 |
|
Datasheet |
Radial | 7.5 µF | ±5% | 250V | - | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.748" W (42.00mm x 19.00mm) | 1.299" (33.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
|
EFACA76J824E102LHCAP FILM 0.82UF 5% 760VAC RAD |
8,944 |
|
Datasheet |
Radial | 0.82 µF | ±5% | 760V | - | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.748" W (42.00mm x 19.00mm) | 1.299" (33.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
MKP1847C580315P2MKP 8F 10% 310VAC PITCH 37,5 |
9,763 |
|
Datasheet |
Radial | 8 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | - | - |
|
MKP1847C580315P4MKP 8F 10% 310VAC PITCH 37,5 |
3,986 |
|
Datasheet |
Radial - 4 Leads | 8 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | - | - |
