Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SNMPK036807CD4MSSDSNUBBER MKP 0.68 F 700 VDC 13X24 |
7,134 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPK036807CD2MSSDSNUBBER MKP 0.68 F 700 VDC 13X24 |
4,801 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B32776T1905K000CAP FILM 9UF 1.3KVDC RAD 4 LEAD |
8,602 |
|
Datasheet |
Radial - 4 Leads | 9 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 10.7 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 1.693" W (41.50mm x 43.00mm) | 0.866" (22.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
F462FY125R1L2ZCAP |
2,606 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPT032207CB8JS00SNUBBER MKP 0.22 F 1600 VDC 13X2 |
9,227 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPT032207CFSJS00SNUBBER MKP 0.22 F 1600 VDC 13X2 |
4,319 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPT032207CD4JSSDSNUBBER MKP 0.22 F 1600 VDC 13X2 |
7,912 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPT032207CD2JSSDSNUBBER MKP 0.22 F 1600 VDC 13X2 |
8,603 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPTA32207CFSJS00SNUBBER MKP 0.22 F 1700 VDC 13X2 |
9,279 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPTA32207CD4JSSDSNUBBER MKP 0.22 F 1700 VDC 13X2 |
2,588 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPTA32207CB8JS00SNUBBER MKP 0.22 F 1700 VDC 13X2 |
7,102 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPTA32207CD2JSSDSNUBBER MKP 0.22 F 1700 VDC 13X2 |
9,746 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C4CAWUD3680AA3JCAP FILM METAL AXL POLYPROP |
9,424 |
|
Datasheet |
Axial | 0.68 µF | ±5% | 630V | 2000V (2kV) | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 85°C | Through Hole | 1.260" Dia x 2.283" L (32.00mm x 58.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|

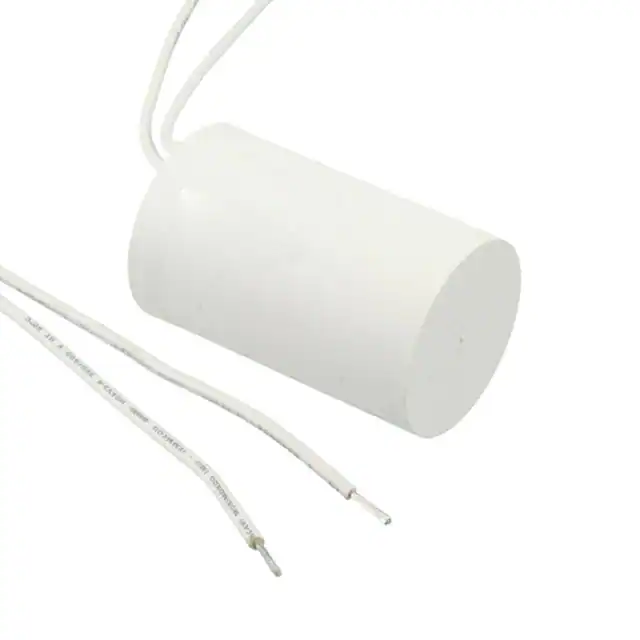

C276CCF5120LG0JCAP FILM 12UF 5% 470VAC RADIAL |
7,885 |
|
Datasheet |
Radial, Can | 12 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.894" (73.50mm) | Wire Leads | - | Motor Run | - | - |
|
MKP1848C58012JP2CAP FILM 8UF 5% 1.2KVDC RADIAL |
9,153 |
|
Datasheet |
Radial | 8 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 105°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.516" (38.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
MKP1848C61580JP2CAP FILM 15UF 5% 800VDC RADIAL |
4,109 |
|
Datasheet |
Radial | 15 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 9 mOhms | -55°C ~ 105°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
BFC237343395CAP FILM 3.9UF 10% 250VDC RADIAL |
7,087 |
|
Datasheet |
Radial | 3.9 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
|
MKP385E58240JPP4T0CAP FILM 8.2UF 5% 400VDC RAD |
5,108 |
|
Datasheet |
Radial - 4 Leads | 8.2 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E58240JPM4T0CAP FILM 8.2UF 5% 400VDC RAD |
2,282 |
|
Datasheet |
Radial - 4 Leads | 8.2 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
BFC238341124CAP FILM 0.12UF 5% 1.4KVDC RAD |
2,086 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.709" W (31.00mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
