Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC238344124CAP FILM 0.12UF 5% 1.4KVDC RAD |
9,582 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.709" W (31.00mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
SNMPU031507CB8JS00SNUBBER MKP 0.15 F 2000 VDC 13X2 |
7,653 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031507CD2JSSDSNUBBER MKP 0.15 F 2000 VDC 13X2 |
7,518 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031507CFSJS00SNUBBER MKP 0.15 F 2000 VDC 13X2 |
4,635 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031507CD4JSSDSNUBBER MKP 0.15 F 2000 VDC 13X2 |
6,618 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKP1848H61090KP4CAP FILM 10UF 10% 920VDC RADIAL |
9,188 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±10% | - | 920V | Polypropylene (PP), Metallized | 6.4 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 0.846" W (42.00mm x 21.50mm) | 1.543" (39.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|
|
MKP1848H62050KP2CAP FILM 20UF 10% 500VDC RADIAL |
8,088 |
|
Datasheet |
Radial | 20 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 0.846" W (42.00mm x 21.50mm) | 1.543" (39.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|
|
SNMPV026806DD2MS00SNUBBER MKP 0.068 F 2500 VDC 13X |
2,874 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKS4F052707G00MSSDCAP FILM 27UF 20% 250VDC RADIAL |
4,106 |
|
Datasheet |
Radial | 27 µF | ±20% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKP385E4182BKPM2T0CAP FILM 0.18UF 10% 2.5KVDC RAD |
9,908 |
|
Datasheet |
Radial | 0.18 µF | ±10% | 800V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 105°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.535" (39.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E4182BKPP2T0CAP FILM 0.18UF 10% 2.5KVDC RAD |
3,224 |
|
Datasheet |
Radial | 0.18 µF | ±10% | 800V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 105°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.535" (39.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
SNMPW031007CD2JSSDSNUBBER MKP 0.1 F 3000 VDC 13X24 |
8,394 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPW031007CD4JSSDSNUBBER MKP 0.1 F 3000 VDC 13X24 |
6,302 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPW031007CB8JS00SNUBBER MKP 0.1 F 3000 VDC 13X24 |
4,327 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPW031007CFSJS00SNUBBER MKP 0.1 F 3000 VDC 13X24 |
8,731 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F161ZS825J050VCAP FILM SMD PET |
4,675 |
|
Datasheet |
Nonstandard SMD | 8.2 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.283" (7.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|

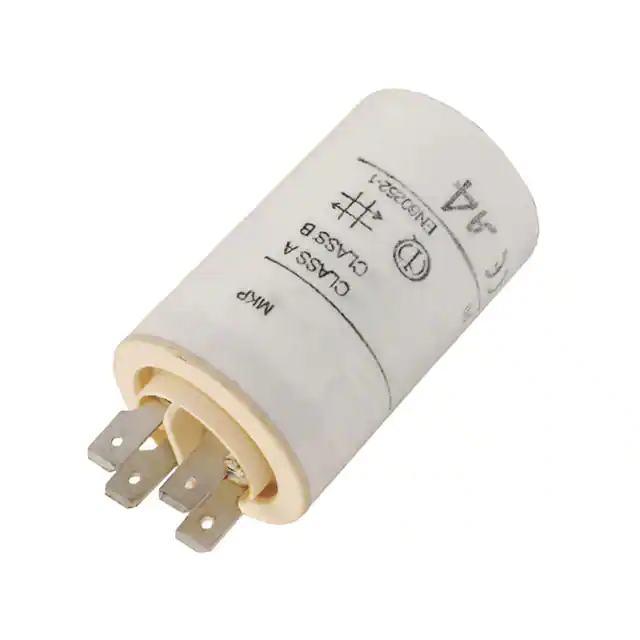

C277LAC5300VA1JCAP FILM 30UF 5% 425VAC RADIAL |
3,182 |
|
Datasheet |
Radial, Can | 30 µF | ±5% | 425V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | - | - | - | - | Motor Run | - | - |
|
|
C870CF35250AA0JCAP FILM MOTOR START RUN |
7,885 |
|
Datasheet |
Radial, Can | 25 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
B32758G7206K000CAP FILM 20UF 10% 550VDC RADIAL |
3,878 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±10% | 275V | 550V | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
|
B32758G7226K000CAP FILM 22UF 10% 550VDC RADIAL |
9,736 |
|
Datasheet |
Radial - 4 Leads | 22 µF | ±10% | 275V | 550V | Polypropylene (PP), Metallized | 3.4 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
