Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP4G051207I00JSC9MKP 4 12.0 F 400 VDC 31X46X41.5 |
3,449 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EFDKS55J606E174DHCAP EFDKS 550VDC 60UF J 4LEADS |
4,301 |
|
Datasheet |
Radial - 4 Leads | 60 µF | ±5% | - | 550V | Polypropylene (PP), Metallized | 4.2 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 2.008" (51.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
|
MKP1845468635CAP FILM 0.68UF 10% 630VDC AXIAL |
9,161 |
|
Datasheet |
Axial | 0.68 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.984" Dia x 1.732" L (25.00mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKS4U036807I00KSC9CAP FILM 0.68UF 10% 2KVDC RADIAL |
6,901 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 400V | 2000V (2kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 1.220" W (41.50mm x 31.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C870CF35160AA1JCAP FILM MOTOR START RUN |
5,023 |
|
Datasheet |
Radial, Can | 16 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
DCP4R251507ID2JSC9DC-LINK MKP 4 15.0 F 1300 VDC 31 |
2,415 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4R251507ID4JSC9DC-LINK MKP 4 15.0 F 1300 VDC 31 |
3,003 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4O144707J00MSC9MKP 4 4.7 F 1000 VDC 35X50X41.5 |
5,770 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4R042707J00MSC9MKP 4 2.7 F 1250 VDC 35X50X41.5 |
9,844 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP1T033307I00KSC9FKP 1 0.33 F 1600 VDC 31X46X41.5 |
5,909 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKPF3Y52507I00JSC9MKP 4F 25.0 F 230 VAC 31X46X41.5 |
6,012 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPR034706GD2KS00SNUBBER MKP 0.47 F 1250 VDC 17X2 |
2,336 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPM034706GD2KS00SNUBBER MKP 0.47 F 850 VDC 17X29 |
7,643 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I053007HD2KSSDDC-LINK MKP 4 30.0 F 600 VDC 24X |
5,208 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I053007HD4MSSDDC-LINK MKP 4 30.0 F 600 VDC 24X |
9,110 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I053007HD2MSSDDC-LINK MKP 4 30.0 F 600 VDC 24X |
3,927 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I053007HD4KSSDDC-LINK MKP 4 30.0 F 600 VDC 24X |
6,304 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 4.1 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.791" (45.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
B32656S0125K577CAP FILM 1.2UF 10% 1KVDC SCREW |
9,742 |
|
Datasheet |
Rectangular Box | 1.2 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | Screw Terminals | 1.457" (37.00mm) | Snubber | AEC-Q200 | Low ESL |
|

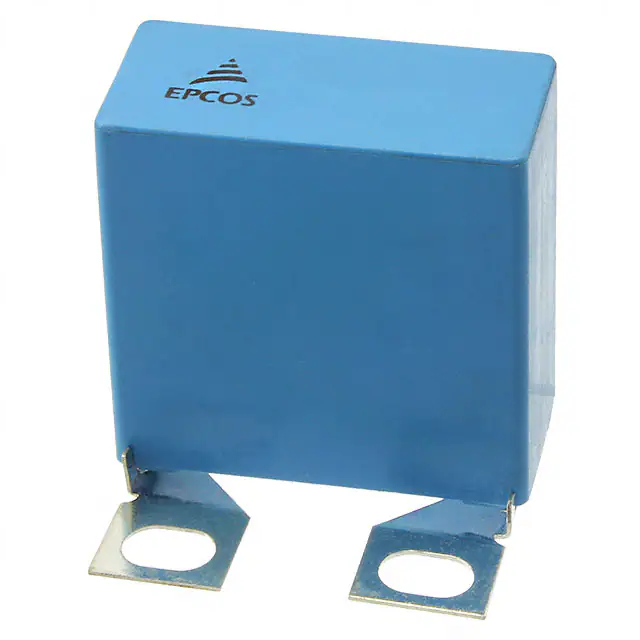

B32656S7684K564CAP FILM 0.68UF 1.25KVDC SCREW |
3,796 |
|
Datasheet |
Rectangular Box | 0.68 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | Screw Terminals | 1.102" (28.00mm) | Snubber | AEC-Q200 | Low ESL |
|
|
B32656S0125K561CAP FILM 1.2UF 10% 1KVDC SCREW |
3,756 |
|
Datasheet |
Rectangular Box | 1.2 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | Screw Terminals | 1.004" (25.50mm) | Snubber | AEC-Q200 | Low ESL |
