DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCM4623TD2N26C8T00DC DC CONVERTER 24V 375W |
333 |
|
Datasheet |
VI Chip® DCM® (375W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 120V | 420V | 24V | - | - | - | 15.7A | 375 W | 4.242 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C (With Derating) | 92.9% | - | - | Through Hole | - | - | - | - | |
|
BCM6123TD1E2663T01DC DC CONVERTER 24V 1600W |
93 |
|
Datasheet |
VI Chip® BCM® | 24-DIP Module | Tray | Active | Bus Converter Module | 1 | 260V | 410V | 24V | - | - | - | 62.5A | 1600 W | 4.242 kV | ITE (Commercial) | - | -40°C ~ 125°C | 97.4% | - | - | Through Hole | - | - | - | - | |
|
CFB600W-110S28DC DC CONVERTER 28V 600W |
34 |
|
Datasheet |
CFB600W (600W) | Full Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 28V | - | - | - | 21.4A | 600 W | 2.25 kV | ITE (Commercial), Railway | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | Full Brick | - | CE, cURus | 50155; 62368-1 | |
|

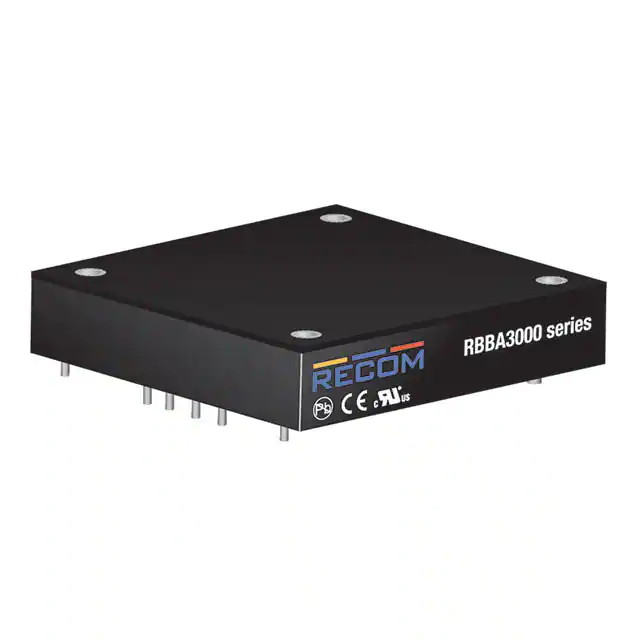

RBBA3000-50DC DC CONVERTER 0-60V 3000W |
240 |
|
Datasheet |
INNOLINE RBBA3000 (3000W) | Half Brick | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 60V | 0 ~ 60V | - | - | - | 50A | 3000 W | - | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 85°C | 96% | - | - | Through Hole | Half Brick | - | - | - | |
|

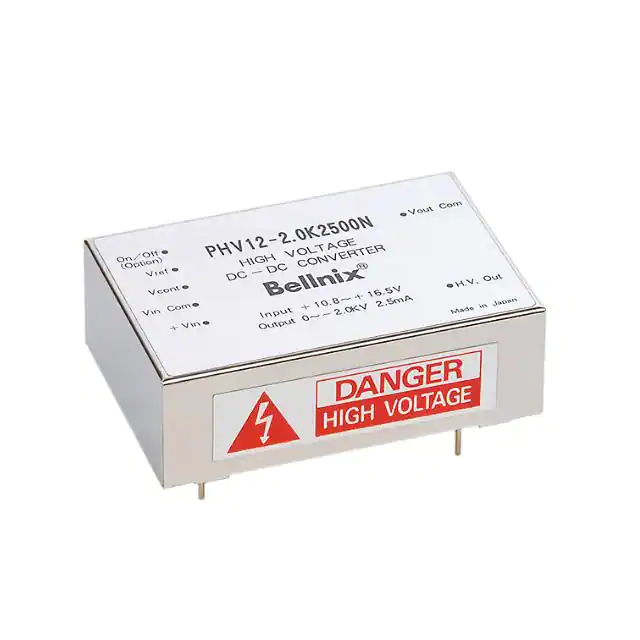

PHV12-2.0K2500PRDC DC CONVERTER -2000V 5W |
35 |
|
Datasheet |
PHV (5W) | 7-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 10.8V | 16.5V | 2000V | - | - | - | 2.5mA | 5 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 50°C (With Derating) | 72% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
LTM4700IYDC DC CNVRTR 0.5-1.8V 0.5-1.8V |
99 |
|
Datasheet |
µModule® | 330-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 16V | 0.5 ~ 1.8V | 0.5 ~ 1.8V | - | - | 50A, 50A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | 90% | - | - | Surface Mount | 330-BGA (22x15) | - | - | - | |
|
CFB400W-24S28DC DC CONVERTER 28V 400W |
117 |
|
Datasheet |
CFB400W (400W) | Full Brick | Box | Active | Isolated Module | 1 | 9V | 36V | 28V | - | - | - | 14.3A | 400 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | Full Brick | Enable, Active Low | CE, cURus | 60950-1 | |
|
|
CFB400W-24S24DC DC CONVERTER 24V 401W |
42 |
|
Datasheet |
CFB400W (400W) | Full Brick | Box | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 16.7A | 401 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | Full Brick | Enable, Active Low | CE, cURus | 60950-1 | |
|
|
CFB400W-24S12DC DC CONVERTER 12V 400W |
39 |
|
Datasheet |
CFB400W (400W) | Full Brick | Box | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 33.3A | 400 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 86% | - | - | Through Hole | Full Brick | Enable, Active Low | CE, cURus | 60950-1 | |
|
V300B12T250BLDC DC CONVERTER 12V 250W |
63 |
|
Datasheet |
MINI (250W) | Module | Bulk | Active | Isolated Module | 1 | 180V | 375V | 12V | - | - | - | 20.83A | 250 W | 3 kV | ITE (Commercial) | OVP, UVLO | -40°C ~ 100°C | 86.3% | - | - | Surface Mount | - | - | - | - | |
|

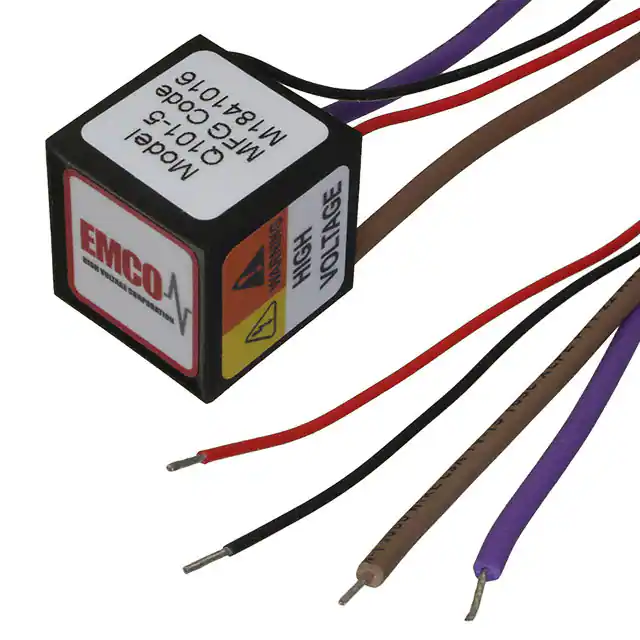

Q101-5DC DC CONVERTER 10000V 500MW |
86 |
|
Datasheet |
XP EMCO - Q (0.5W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 10000V | - | - | - | 50µA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -10°C ~ 60°C | - | - | - | Through Hole | - | - | - | 62368-1 | |
|
DCM24AP120M320A50DC DC CONVERTER 12V 320W |
34 |
|
Datasheet |
VI Chip® DCM® (320W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 26.67A | 320 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -55°C ~ 125°C | 93.1% | - | - | Through Hole | - | - | - | - | |
|
V24C5H50BLDC DC CONVERTER 5V 50W |
208 |
|
Datasheet |
MICRO (50W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 10A | 50 W | 3 kV | ITE (Commercial) | OVP, UVLO | -40°C ~ 100°C | 84.5% | - | - | Through Hole | - | - | - | - | |
|
|
V375B48C300BLDC DC CONVERTER 48V 300W |
42 |
|
Datasheet |
MINI (300W) | Module | Tray | Active | Isolated Module | 1 | 250V | 425V | 48V | - | - | - | 6.25A | 300 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 89% | - | - | Surface Mount | - | - | - | - | |
|
|
BCM400P500T1K8A30DC DC CONVERTER 47.5V 1.8KW |
59 |
|
Datasheet |
VI Chip® BCM® | 9-DIP Module | Tray | Active | Bus Converter Module | 1 | 260V | 410V | 47.5V | - | - | - | 37.9A | 1.8 kW | 4.242 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Through Hole | - | - | - | - | |
|
DCM3623T75X1780M70DC DC CONVERTER 15V 81W |
27 |
|
Datasheet |
VI Chip® DCM® (80W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 75V | 15V | - | - | - | 5.4A | 81 W | 2.25 kV | ITE (Commercial) | OCP, OTP, SCP, UVLO | -55°C ~ 125°C | 90.6% | - | - | Through Hole | - | - | - | - | |
|

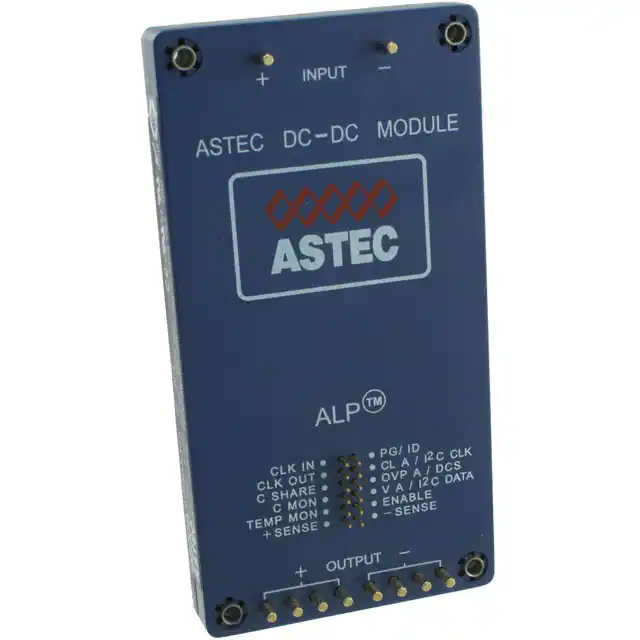

AIF80A300N-LDC DC CONVERTER 5V 600W |
73 |
|
Datasheet |
AIF (600W) | Module | Bulk | Active | Isolated Module | 1 | 250V | 420V | 5V | - | - | - | 80A | 600 W | - | ITE (Commercial) | Remote On/Off, OCP, OVP | -20°C ~ 100°C | 90% | - | - | Through Hole | - | - | - | - | |
|
|
AIF50B300N-NTLDC DC CONVERTER 12V 600W |
46 |
|
Datasheet |
AIF (600W) | 10-DIP Module, Full Brick | Bulk | Active | Isolated Module, Digital | 1 | 250V | 420V | 12V | - | - | - | 50A | 600 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -20°C ~ 100°C | 90% | - | - | Through Hole | - | - | - | - | |
|
|
DCM300P480T500A40DC DC CONVERTER 48V 500W |
33 |
|
Datasheet |
VI Chip® DCM® (500W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 200V | 420V | 48V | - | - | - | 10.5A | 500 W | 4.242 kV | ITE (Commercial) | OCP, OVP, UVLO | -40°C ~ 125°C | 93.5% | - | - | Through Hole | - | - | - | - | |
|
FS60P-12DC DC CONVERTER 6000V 10W |
47 |
|
Datasheet |
XP EMCO - FS (10W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | 6000V | - | - | - | 1.67mA | 10 W | 2.5 kV | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | 85% | - | - | Through Hole | - | - | - | - |
