DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QSB40024S24DC DC CONVERTER 24V 400W |
59 |
|
Datasheet |
QSB (400W) | 16-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 16.6A | 400 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 100°C | 87% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
V110C12C100BLDC DC CONVERTER 12V 100W |
187 |
|
Datasheet |
MICRO (100W) | Quarter Brick | Tube | Active | Isolated Module | 1 | 66V | 154V | 12V | - | - | - | 8.33A | 100 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 87.2% | - | - | Through Hole | - | - | - | - | |
|
|
V300C28C150BLDC DC CONVERTER 28V 150W |
37 |
|
Datasheet |
MICRO (150W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 180V | 375V | 28V | - | - | - | 5.36A | 150 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 86.5% | - | - | Through Hole | - | - | - | - | |
|
|
V28C24C100BLDC DC CONVERTER 24V 100W |
35 |
|
Datasheet |
MICRO (100W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 4.17A | 100 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 82.3% | - | - | Through Hole | - | - | - | - | |
|
CA10NDC DC CONVERTER -1000V 1W |
37 |
|
Datasheet |
XP EMCO - CA (1W) | 8-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 11.5V | 15.5V | -1000V | - | - | - | 1mA | 1 W | - | ITE (Commercial) | SCP | -10°C ~ 50°C | - | - | - | Through Hole | - | - | - | 62368-1 | |
|
|
V28C24T100BLDC DC CONVERTER 24V 100W |
272 |
|
Datasheet |
MICRO (100W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 4.17A | 100 W | 3 kV | ITE (Commercial) | OVP, UVLO | -40°C ~ 100°C | 82.3% | - | - | Through Hole | - | - | - | - | |
|
|
V300C24T150BLDC DC CONVERTER 24V 150W |
638 |
|
Datasheet |
MICRO (150W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 180V | 375V | 24V | - | - | - | 6.25A | 150 W | 3 kV | ITE (Commercial) | OVP, UVLO | -40°C ~ 100°C | 86.5% | - | - | Through Hole | - | - | - | - | |
|
|
V24C12T100BGDC DC CONVERTER 12V 100W |
149 |
|
Datasheet |
MICRO (100W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 8.33A | 100 W | 3 kV | ITE (Commercial) | OVP, UVLO | -40°C ~ 100°C | 85.8% | - | - | Through Hole | - | - | - | - | |
|

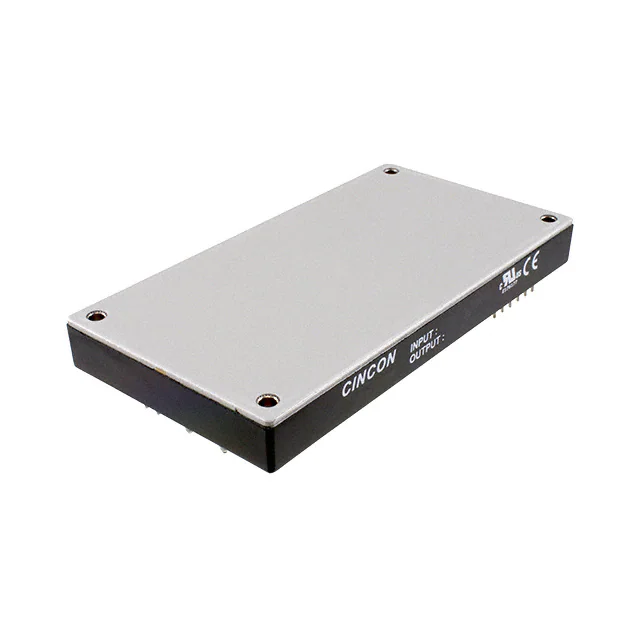

CFB600-24S48DC DC CONVERTER 48V 600W |
33 |
|
Datasheet |
CFB600 (600W) | Full Brick | Box | Active | Isolated Module | 1 | 18V | 36V | 48V | - | - | - | 12.5A | 600 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 91% | - | - | Through Hole | Full Brick | Enable, Active Low | CE, cURus | 60950-1 | |
|
|
V28C28T100BGDC DC CONVERTER 28V 100W |
362 |
|
Datasheet |
MICRO (100W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 9V | 36V | 28V | - | - | - | 3.57A | 100 W | 3 kV | ITE (Commercial) | OVP, UVLO | -40°C ~ 100°C | 80.6% | - | - | Through Hole | - | - | - | - | |
|
C20DC DC CONVERTER 2000V 1W |
59 |
|
Datasheet |
XP EMCO - C (1W) | 5-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 11.5V | 16V | 2000V | - | - | - | 500µA | 1 W | - | ITE (Commercial) | SCP | -10°C ~ 60°C | - | - | - | Through Hole | - | - | - | 62368-1 | |
|
|
V300C12C150BLDC DC CONVERTER 12V 150W |
37 |
|
Datasheet |
MICRO (150W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 180V | 375V | 12V | - | - | - | 12.5A | 150 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 85.3% | - | - | Through Hole | - | - | - | - | |
|
|
V28C12T100BLDC DC CONVERTER 12V 100W |
173 |
|
Datasheet |
MICRO (100W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 8.33A | 100 W | 3 kV | ITE (Commercial) | OVP, UVLO | -40°C ~ 100°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
V28C12C100BLDC DC CONVERTER 12V 100W |
404 |
|
Datasheet |
MICRO (100W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 8.33A | 100 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
V28C15C100BLDC DC CONVERTER 15V 100W |
94 |
|
Datasheet |
MICRO (100W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 6.67A | 100 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 80.7% | - | - | Through Hole | - | - | - | - | |
|
|
CA02P-5DC DC CONVERTER 200V 1W |
38 |
|
Datasheet |
XP EMCO - CA (1W) | 8-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 4.75V | 5.25V | 200V | - | - | - | 5mA | 1 W | - | ITE (Commercial) | SCP | -10°C ~ 50°C | - | - | - | Through Hole | - | - | - | 62368-1 | |
|
V24B24C150BLDC DC CONVERTER 24V 150W |
50 |
|
Datasheet |
MINI (150W) | Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 6.25A | 150 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 87.7% | - | - | Surface Mount | - | - | - | - | |
|
|
V300C24C150BGDC DC CONVERTER 24V 150W |
65 |
|
Datasheet |
MICRO (150W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 180V | 375V | 24V | - | - | - | 6.25A | 150 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 86.5% | - | - | Through Hole | - | - | - | - | |
|
|
V375C24T150BGDC DC CONVERTER 24V 150W |
38 |
|
Datasheet |
MICRO (150W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 250V | 425V | 24V | - | - | - | 6.25A | 150 W | 3 kV | ITE (Commercial) | OVP, UVLO | -40°C ~ 100°C | 86.5% | - | - | Through Hole | - | - | - | - | |
|
|
V28C12T100BGDC DC CONVERTER 12V 100W |
78 |
|
Datasheet |
MICRO (100W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 8.33A | 100 W | 3 kV | ITE (Commercial) | OVP, UVLO | -40°C ~ 100°C | 80% | - | - | Through Hole | - | - | - | - |
