DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT5821ADC DC CONVERTER 3.3V 16A |
15 |
|
Datasheet |
Excalibur™ PT5820 | 18-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 16A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Through Hole, Right Angle | - | - | - | - | |
|
|
PT5802NDC DC CONVERTER 2.5V 18A |
15 |
|
Datasheet |
Excalibur™ PT5800 | 18-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 2.5V | - | - | - | 18A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 92% | - | - | Through Hole | - | - | - | - | |
|
|
PT5803NDC DC CONVERTER 1.8V 18A |
15 |
|
Datasheet |
Excalibur™ PT5800 | 18-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.8V | - | - | - | 18A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Through Hole | - | - | - | - | |
|
|
PT5806ADC DC CONVERTER 1V 18A |
0 |
|
Datasheet |
Excalibur™ PT5800 | 18-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1V | - | - | - | 18A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole, Right Angle | - | - | - | - | |
|
|
PT5815CDC DC CONVERTER 1.2V 20A |
0 |
|
Datasheet |
Excalibur™ PT5810 | 18-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 2.95V | 3.65V | 1.2V | - | - | - | 20A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP | -40°C ~ 85°C | 87% | - | - | Surface Mount | - | - | - | - | |
|
|
PT5822NDC DC CONVERTER 2.5V 16A |
15 |
|
Datasheet |
Excalibur™ PT5820 | 18-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 2.5V | - | - | - | 16A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | - | - | - | - | |
|
|
PT5821NDC DC CONVERTER 3.3V 16A |
15 |
|
Datasheet |
Excalibur™ PT5820 | 18-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 16A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Through Hole | - | - | - | - | |
|
|
PT5813CDC DC CONVERTER 1.8V 20A |
12 |
|
Datasheet |
Excalibur™ PT5810 | 18-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 2.95V | 3.65V | 1.8V | - | - | - | 20A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP | -40°C ~ 85°C | 90% | - | - | Surface Mount | - | - | - | - | |
|
|
PTB48540BASDC DC CONVERTER 3.3V 10W |
0 |
|
Datasheet |
PTB48540 (10W) | 13-SMD Module | Tray | Obsolete | Isolated PoE (Power over Ethernet) Module | 1 | 36V | 57V | 3.3V | - | - | - | 3A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 79% | - | - | Surface Mount | - | - | - | - | |
|
IEU0324D12DC DC CONVERTER +/-12V 3W |
20 |
|
Datasheet |
IEU03 (3W) | 8-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 95°C | 86% | - | - | Through Hole | - | - | - | 62368-1 | |
|
|
IEU0305D15DC DC CONVERTER +/-15V 3W |
10 |
|
Datasheet |
IEU03 (3W) | 8-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 10V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 95°C | 85% | - | - | Through Hole | - | - | - | 62368-1 | |
|

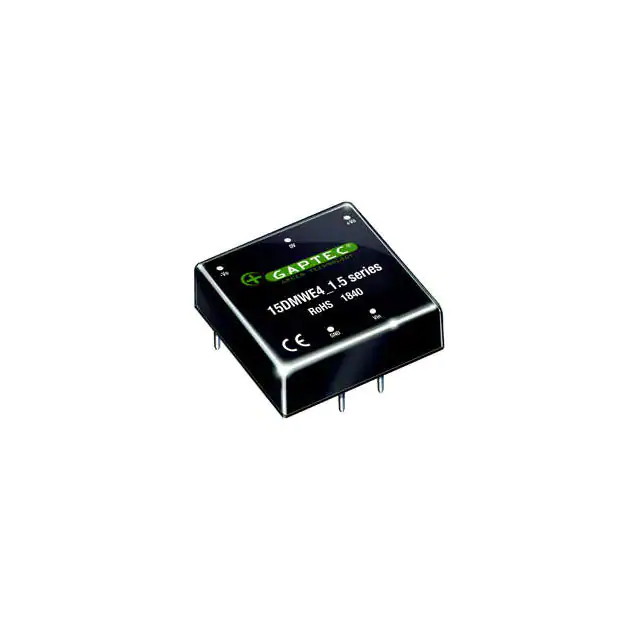

15DMWE4_4805D1.5ISOLATED MODULE DC DC CONVERTERS |
13 |
|
Datasheet |
15DMWE4_D1.5 (15W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 1.5A, 1.5A | 15 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | - | - | CE | 62368-1 | |
|
|
15DMWE4_2424D1.5ISOLATED MODULE DC DC CONVERTERS |
13 |
|
Datasheet |
15DMWE4_D1.5 (15W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 2 | 9V | 36V | 24V | -24V | - | - | 312mA, 312mA | 15 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | - | - | CE | 62368-1 | |
|
|
15DMWE4_4815D1.5ISOLATED MODULE DC DC CONVERTERS |
12 |
|
Datasheet |
15DMWE4_D1.5 (15W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | - | - | CE | 62368-1 | |
|
|
15DMWE4_2415D1.5ISOLATED MODULE DC DC CONVERTERS |
11 |
|
Datasheet |
15DMWE4_D1.5 (15W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | - | - | CE | 62368-1 | |
|
ICZ0948S12DC DC CONVERTER 12V 9W |
28 |
|
Datasheet |
ICZ (9W) | 12-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 750mA | 9 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 12-SIP | - | - | 62368-1 | |
|
|
ICZ0924S3V3DC DC CONVERTER 3.3V 6.6W |
25 |
|
Datasheet |
ICZ (9W) | 12-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 2A | 6.6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 12-SIP | - | - | 62368-1 | |
|
|
ICZ0948S3V3DC DC CONVERTER 3.3V 6.6W |
20 |
|
Datasheet |
ICZ (9W) | 12-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 2A | 6.6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 12-SIP | - | - | 62368-1 | |
|
|
ICZ0912S3V3DC DC CONVERTER 3.3V 6.6W |
10 |
|
Datasheet |
ICZ (9W) | 12-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 2A | 6.6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 12-SIP | - | - | 62368-1 | |
|
|
VRB2405LD-50WHR3ISOLATED MODULE DC DC CONVERTER |
32 |
|
Datasheet |
VRB24_LD-50W(H)R3 (50W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | - | - | CE | 62368-1 |
