DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JWL4048S15DC DC CONVERTER 15V 40W |
11 |
|
Datasheet |
JWL (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 2.67A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C | 90% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|
|
JWL4048S05DC DC CONVERTER 5V 40W |
8 |
|
Datasheet |
JWL (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 8A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C | 90% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|
40DDW_2412S1.5DC-DC INDUSTRIAL |
5 |
|
Datasheet |
40DDW_1.5 (40W) | 8-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 3.3A | 40 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 90% | - | - | Through Hole | - | - | - | - | |
|
|
RED20-110S05WDC DC CONVERTER 5V 20W |
10 |
|
Datasheet |
RED20W (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 43V | 160V | 5V | - | - | - | 4A | 20 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 101°C (With Derating) | 87% | - | - | Through Hole | - | Enable, Active Low | CB, CE, cURus | - | |
|
|
RED20-110D12WDC DC CONVERTER +/-12V 20W |
10 |
|
Datasheet |
RED20W (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 43V | 160V | 12V | -12V | - | - | 833mA, 833mA | 20 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Standby Output | -40°C ~ 101°C (With Derating) | 88% | - | - | Through Hole | - | Enable, Active Low | CB, CE, cURus | 60950-1 | |
|

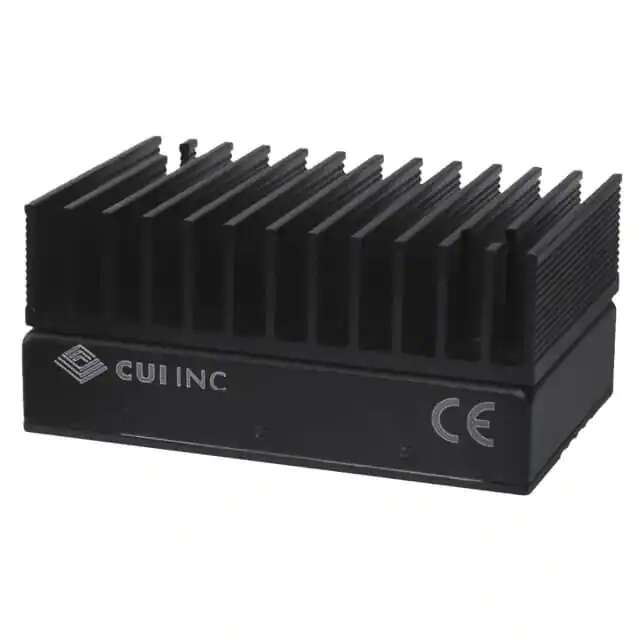

PRQ100W-Q24-S12-H-DDC DC CONVERTER 12V 100W |
5 |
|
Datasheet |
PRQ100W-D (100W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 8.3A | 100 W | 2.25 kV | ITE (Commercial) | Heat Sink | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | Quarter Brick | - | CE | - | |
|

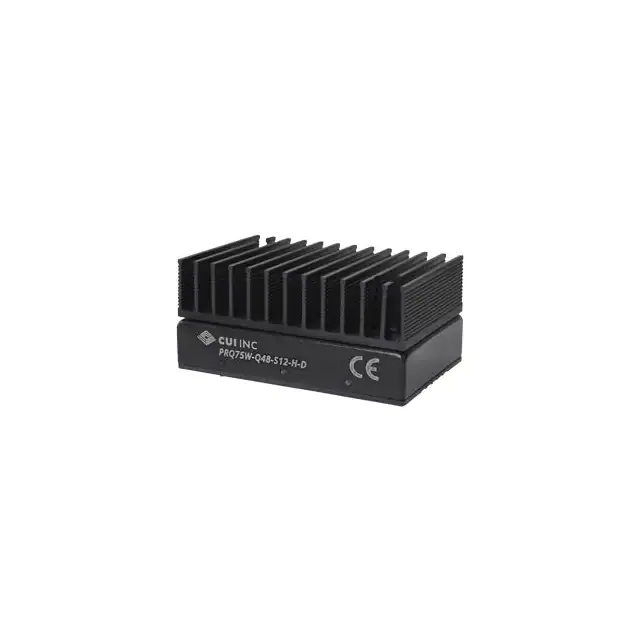

PRQ75W-Q48-S24-H-DDC-DC ISOLATED, 75 W, 18~75 VDC |
14 |
|
Datasheet |
PRQ75W-D (75W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 3.13A | 75 W | 2.25 kV | ITE (Commercial) | Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | Quarter Brick | - | CE | 62368-1 | |
|
PRQ100W-Q24-S24-DDC DC CONVERTER 24V 101W |
6 |
|
Datasheet |
PRQ100W-D (100W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 4.2A | 101 W | 2.25 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | Quarter Brick | - | CE | - | |
|
|
AM50QB-11048SA30JZ-K-BDC DC CONVERTER 48V 50W |
5 |
|
Datasheet |
AM50QB-JZ | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 48V | - | - | - | 1.04A | 50 W | 3 kV | Industrial, Railway | Adjustable Output, Heatsink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 87% | - | - | Through Hole | Quarter Brick | - | - | - | |
|
|
AM50QB-11005SA30JZ-K-BDC DC CONVERTER 5V 50W |
5 |
|
Datasheet |
AM50QB-JZ | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 5V | - | - | - | 10A | 50 W | 3 kV | Industrial, Railway | Adjustable Output, Heatsink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 87% | - | - | Through Hole | Quarter Brick | - | - | - | |
|
|
AM50QB-11003SA30JZ-K-BDC DC CONVERTER 3.3V 38W |
5 |
|
Datasheet |
AM50QB-JZ | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 3.3V | - | - | - | 11.364A | 37.5 W | 3 kV | Industrial, Railway | Adjustable Output, Heatsink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 86% | - | - | Through Hole | Quarter Brick | - | - | - | |
|
|
AM50QB-11024SA30JZ-K-BDC DC CONVERTER 24V 50W |
3 |
|
Datasheet |
AM50QB-JZ | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 24V | - | - | - | 2.083A | 50 W | 3 kV | Industrial, Railway | Adjustable Output, Heatsink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 89% | - | - | Through Hole | Quarter Brick | - | - | - | |
|
|
AM50QB-11012SA30JZ-K-BDC DC CONVERTER 12V 50W |
3 |
|
Datasheet |
AM50QB-JZ | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 12V | - | - | - | 4.167A | 50 W | 3 kV | Industrial, Railway | Adjustable Output, Heatsink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 88% | - | - | Through Hole | Quarter Brick | - | - | - | |
|
|
AM50QB-11015SA30JZ-K-BDC DC CONVERTER 15V 50W |
2 |
|
Datasheet |
AM50QB-JZ | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 15V | - | - | - | 3.333A | 50 W | 3 kV | Industrial, Railway | Adjustable Output, Heatsink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 88% | - | - | Through Hole | Quarter Brick | - | - | - | |
|
40DCPW_24S4ISOLATED MODULE DC DC CONVERTERS |
5 |
|
Datasheet |
40DCPW_S4 (40W) | 5-DIP Module | Retail Package | Obsolete | Isolated Module | 1 | 200V | 1500V | 24V | - | - | - | 1.67A | 40 W | 4 kV | ITE (Commercial) | - | -40°C ~ 70°C (With Derating) | 80% | - | - | Through Hole | - | - | CE | - | |
|
UVQ-12/8-D24PB-CDC DC CONVERTER 12V 96W |
5 |
|
Datasheet |
UVQ | 4-DIP Module | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 8A | 96 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
PRQ100W-Q48-S12-B-DDC DC CONVERTER 12V 100W |
2 |
|
Datasheet |
PRQ100W-D (100W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 8.3A | 100 W | 2.25 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | Quarter Brick | - | CE | - | |
|
|
SQ48T05080-NAC0DC DC CONVERTER 8V 40W |
0 |
|
Datasheet |
SemiQ™ SQ48 | 8-DIP Module, 1/8 Brick | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 8V | - | - | - | 5A | 40 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 85.5% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
SQ48T04120-PBA0DC DC CONVERTER 12V 48W |
0 |
|
Datasheet |
SemiQ™ SQ48 | 8-DIP Module, 1/8 Brick | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 4A | 48 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
|
JWL4048D12DC DC CONVERTER +/-12V 40W |
13 |
|
Datasheet |
JWL (40W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 1.67A, 1.67A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C | 88% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
