DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JWL5048S05DC DC CONVERTER 5V 50W |
11 |
|
Datasheet |
JWL (50W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C | 91% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|
|
JWL5048S3V3DC DC CONVERTER 3.3V 50W |
2 |
|
Datasheet |
JWL (50W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C | 90% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|
MPD30-24D15WDC DC CONVERTER +/-15V 30W |
10 |
|
Datasheet |
MPD30W (30W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 1A, 1A | 30 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | - | - | CB, CE, cURus, FCC | - | |
|
60DDW_2415S3ISOLATED MODULE DC DC CONVERTERS |
15 |
|
Datasheet |
60DDW4_3 (60W) | 8-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 4A | 60 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | - | - | |
|
|
60DDW_2412S3ISOLATED MODULE DC DC CONVERTERS |
15 |
|
Datasheet |
60DDW4_3 (60W) | 8-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 5A | 60 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | - | - | |
|
60DAW4_2405S1.6ISOLATED MODULE DC DC CONVERTERS |
12 |
|
Datasheet |
60DAW4_1.6 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 12A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C (With Derating) | 92.5% | - | - | Through Hole | - | - | CE | 60950-1 | |
|
|
60DAW4_4805S1.6ISOLATED MODULE DC DC CONVERTERS |
5 |
|
Datasheet |
60DAW4_1.6 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 12A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C (With Derating) | 93% | - | - | Through Hole | - | - | CE | 60950-1 | |
|
JTL6024S15DC DC CONVERTER 15V 60W |
14 |
|
Datasheet |
JTL60 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 4A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 85°C | 93% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|
|
SQE48T20050-NGB0DC DC CONVERTER 5V 100W |
0 |
|
Datasheet |
SQE48 | 8-DIP Module, 1/8 Brick | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 20A | 100 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
MB5024S-12RUDC/DC,50W,24V IN,12V OUT,1.5KV, |
3 |
|
Datasheet |
MB5000RU | - | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 4.17A | 50 W | 1.5 kV | Industrial, ITE (Commercial) | Adjustable Output | -40°C ~ 61°C | 92% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
|
PT4827ADC DC CNVRTR 3.3V 2.5V 1.8V 35W |
0 |
|
Datasheet |
Excalibur™ PT4820 (35W) | 21-SIP Module | Tray | Obsolete | Isolated Module | 3 | 36V | 75V | 3.3V | 2.5V | 1.8V | - | 8A, 6A, 6A | 35 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole, Right Angle | - | - | - | - | |
|
PAH-28/16-D48PB1-CDC DC CONVERTER 28V 450W |
10 |
|
Datasheet |
PAH (450W) | 9-DIP Module, 1/2 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 28V | - | - | - | 16A | 450 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 93.5% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
|
DFC10E48S5DC DC CONVERTER 5V 10W |
0 |
|
Datasheet |
DFC10 (10W) | 5-DIP Module, 4 Leads | Bulk | Obsolete | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 2A | 10 W | 1.544 kV | ITE (Commercial) | - | -50°C ~ 100°C | 81% | - | - | Through Hole | - | - | - | - | |
|
ODC75-05SC110DC-DC SMD THROUGH-HOLE ENCAPSUL |
22 |
|
Datasheet |
ODC75-SC (75W) | Half Brick | Bulk | Active | Isolated Module | 1 | 40V | 110V | 5V | - | - | - | 15A | 75 W | 2.25 kV | Railway | Adjustable Output | -40°C ~ 70°C | 88% | - | - | Through Hole | Half Brick | - | - | - | |
|
ODC75-15SC110DC DC CONVERTER 15V 75W |
15 |
|
Datasheet |
ODC75-SC (75W) | Half Brick | Bulk | Active | Isolated Module | 1 | 40V | 110V | 15V | - | - | - | 5A | 75 W | 2.25 kV | Railway | Adjustable Output | -40°C ~ 70°C | 90% | - | - | Through Hole | Half Brick | - | - | - | |
|
ODC75-15SC24DC DC CONVERTER 15V 75W |
15 |
|
Datasheet |
ODC75-SC (75W) | Half Brick | Bulk | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 5A | 75 W | 2.25 kV | Railway | Adjustable Output | -40°C ~ 70°C | 90% | - | - | Through Hole | Half Brick | - | - | - | |
|
ODC75-12SC24DC DC CONVERTER 12V 75W |
8 |
|
Datasheet |
ODC75-SC (75W) | Half Brick | Bulk | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 6.25A | 75 W | 2.25 kV | Railway | Adjustable Output | -40°C ~ 70°C | 90% | - | - | Through Hole | Half Brick | - | - | - | |
|
ODC75-24SC110DC DC CONVERTER 24V 75W |
4 |
|
Datasheet |
ODC75-SC (75W) | Half Brick | Bulk | Active | Isolated Module | 1 | 40V | 110V | 24V | - | - | - | 3.125A | 75 W | 2.25 kV | Railway | Adjustable Output | -40°C ~ 70°C | 90% | - | - | Through Hole | Half Brick | - | - | - | |
|

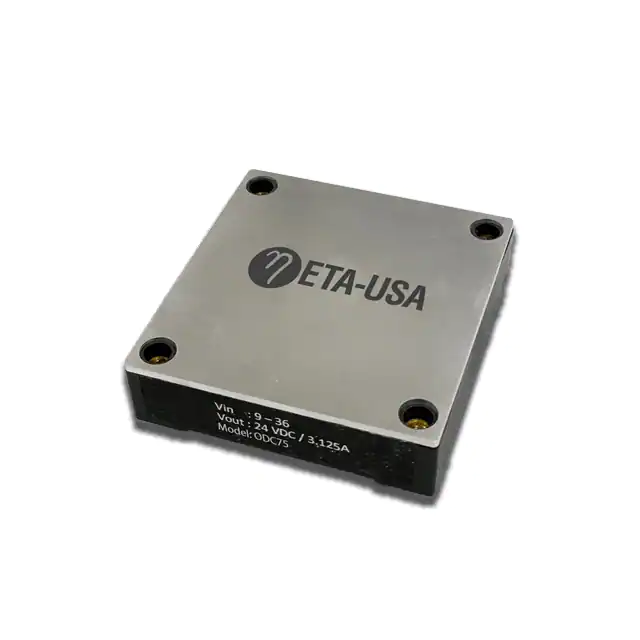

ODC75-05SC48DC-DC SMD THROUGH-HOLE ENCAPSUL |
4 |
|
Datasheet |
ODC75-SC (75W) | Half Brick | Bulk | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 15A | 75 W | 2.25 kV | Railway | Adjustable Output | -40°C ~ 70°C | 88% | - | - | Through Hole | Half Brick | - | - | - | |
|
ODC75-05SC24DC-DC SMD THROUGH-HOLE ENCAPSUL |
4 |
|
Datasheet |
ODC75-SC (75W) | Half Brick | Bulk | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 15A | 75 W | 2.25 kV | Railway | Adjustable Output | -40°C ~ 70°C | 88% | - | - | Through Hole | Half Brick | - | - | - |
