DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMV 2405SDC DC CONVERTER 5V 1W |
1,421 |
|
Datasheet |
TMV (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 24V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 70% | - | - | Through Hole | - | - | - | - | |
|

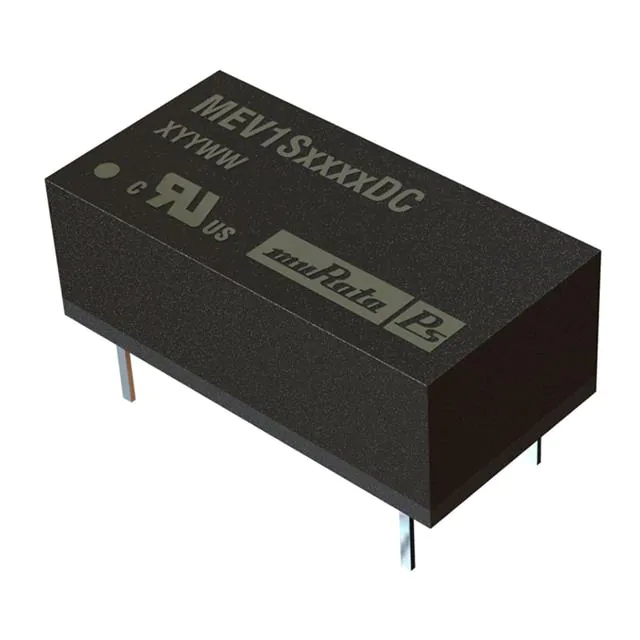

MEV1S0505DCDC DC CONVERTER 5V 1W |
5,786 |
|
Datasheet |
MEV1 (1W) | 14-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|
MGJ1D121505MPC-R7DC DC CONVERTER 15V -5V 1W |
178 |
|
Datasheet |
MGJ1 (1W) | 8-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -5V | - | - | 50mA, 50mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 105°C | 71.5% | - | - | Surface Mount | - | - | - | - | |
|
MEV1S1212SCDC DC CONVERTER 12V 1W |
155 |
|
Datasheet |
MEV1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | - | - | - | - | |
|
MEV1S2412SCDC DC CONVERTER 12V 1W |
121 |
|
Datasheet |
MEV1 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87.5% | - | - | Through Hole | - | - | - | - | |
|
UCC12040DVEDC DC CONVERTER 3.3V 5V 500MW |
954 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V, 5V | - | - | - | 140mA, 100mA | 500 mW | 3 kV | ITE (Commercial), Laboratory, Medical | - | -40°C ~ 125°C (With Derating) | 60% | - | - | Surface Mount | 16-SOIC | Enable, Active High | CQC, TUV, UL, VDE | - | |
|
LMZ30604RKGTDC DC CONVERTER 0.8-3.6V 14W |
462 |
|
Datasheet |
SIMPLE SWITCHER® | 39-BQFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.95V | 6V | 0.8 ~ 3.6V | - | - | - | 4A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 39-B1QFN (11x9) | Enable, Active High | - | - | |
|
MPM38222GR-PDC DC CONVERTER 1.8V 1.2V |
4,444 |
|
Datasheet |
- | 14-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 2 | 2.7V | 6V | 1.8V | 1.2V | - | - | 2A, 2A | - | - | ITE (Commercial) | - | -40°C ~ 125°C (TJ) | 93% | - | - | Surface Mount | 14-QFN (4x4) | - | - | - | |
|
MPM3515GQV-PDC DC CONVERTER 0.8-30V |
477 |
|
Datasheet |
- | 17-PowerLQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 0.8 ~ 30V | - | - | - | 1.5A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 17-QFN (3x5) | - | - | - | |
|
MPM3860GQW-PDC DC CONVERTER 1V 6W |
328 |
|
- |
MPM | 24-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.75V | 7V | 1V | - | - | - | 6A | 6 W | - | - | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 24-QFN (4x6) | - | - | - | |
|
LC78_03-1.0NON-ISOLATED POL MODULE DC DC CO |
1,992 |
|
Datasheet |
LC78_1.0 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.5V | 42V | 3.3V | - | - | - | 1A | 3.3 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|

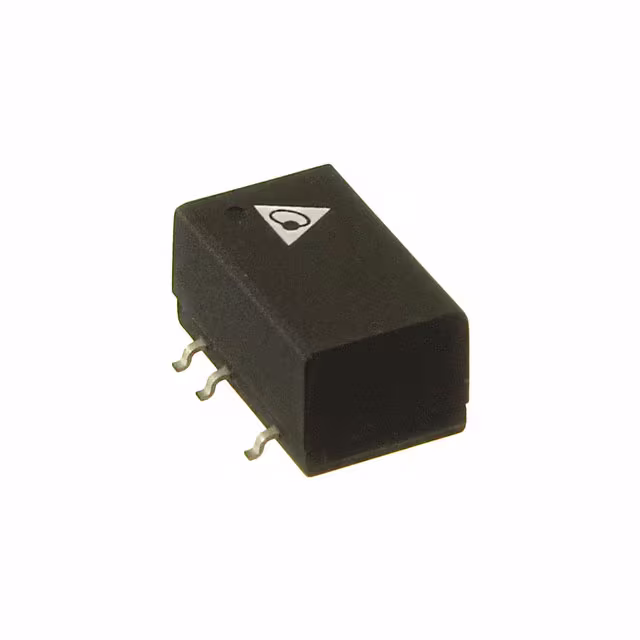

SH01S2412ADC DC CONVERTER 12V 1W |
2,033 |
|
Datasheet |
SH01S/D (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | Medical | SCP | -40°C ~ 85°C | 77% | - | - | Surface Mount | - | - | - | - | |
|
TES 1-1213DC DC CONVERTER 15V 975MW |
111 |
|
Datasheet |
TES 1 (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 65mA | 975 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 80% | - | - | Surface Mount | - | - | - | - | |
|
TPSM84212EABDC DC CONVERTER 12V |
1,798 |
|
Datasheet |
TPSM | 3-SIP Module | Tray | Active | Linear Regulator Replacement | 1 | 14.5V | 28V | 12V | - | - | - | 1.5A | - | - | ITE (Commercial) | OCP, OTP, OVP | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 3-SIP Module | - | - | - | |
|
RPMH15-0.5DC DC CONVERTER 15V |
270 |
|
Datasheet |
INNOLINE RPMH-0.5 | 25-BLGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 16.5V | 65V | 15V | - | - | - | 500mA | - | - | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 105°C (With Derating) | 85% | - | - | Surface Mount | - | - | - | - | |
|
RM-0505S/HDC DC CONVERTER 5V 250MW |
227 |
|
Datasheet |
ECONOLINE RM (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 50mA | 250 mW | 2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 72% | - | - | Through Hole | - | - | - | - | |
|
RPX-1.5Q-R1.5A DC/DC-CONVERTER 'INNOLINE' |
9,658 |
|
Datasheet |
RPX-1.5Q | 17-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 0.8 ~ 30V | - | - | - | 1.5A | 45 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | 87% | - | - | Surface Mount, Wettable Flank | 17-QFN (3x5) | - | - | - | |
|
RM-3.33.3SDC DC CONVERTER 3.3V 250MW |
1,859 |
|
Datasheet |
ECONOLINE RM (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 3.3V | - | - | - | 76mA | 250 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 70% | - | - | Through Hole | - | - | - | - | |
|
RO-3.312SDC DC CONVERTER 12V 1W |
174 |
|
Datasheet |
ECONOLINE RO (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|

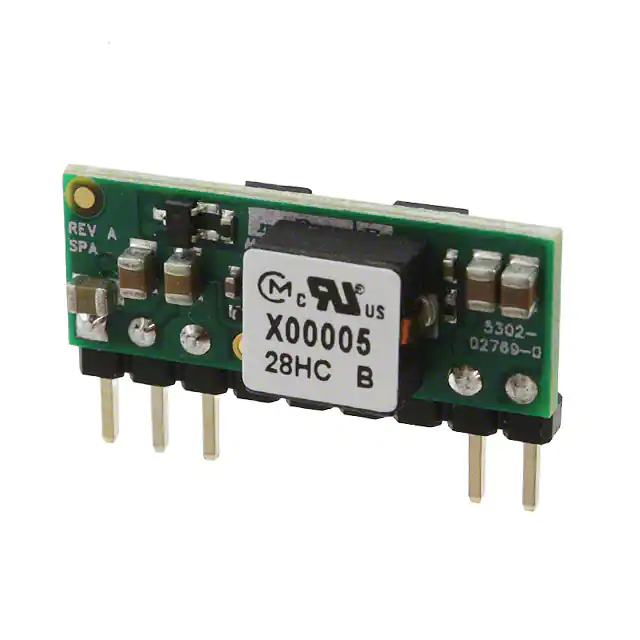

OKX-T/5-W5N-CDC DC CONVERTER 0.7525-3.6V 17W |
547 |
|
Datasheet |
Okami™ OKX-T/5-W5 | 5-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.4V | 5.5V | 0.7525 ~ 3.6V | - | - | - | 5A | 17 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Through Hole | - | Enable, Active Low | - | - |
