DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

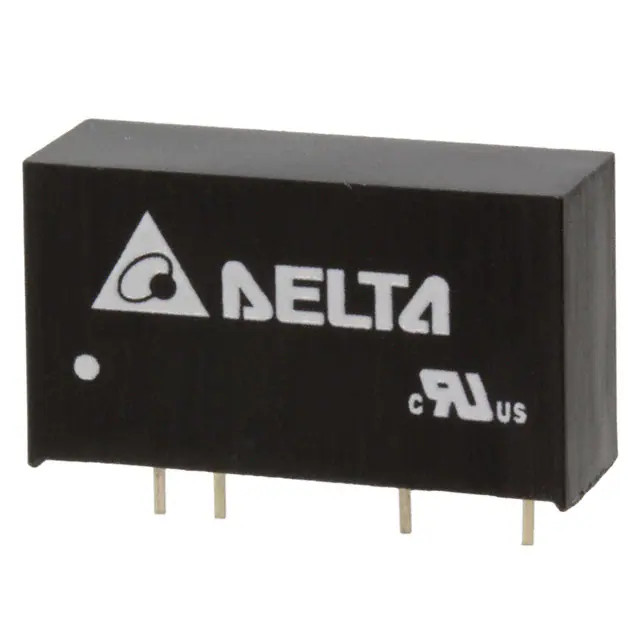

PI01S0505ADC DC CONVERTER 5V 1W |
1,542 |
|
Datasheet |
PI01S/D (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 6 kV | Medical | SCP | -25°C ~ 85°C | 66% | - | - | Through Hole | - | - | - | - | |
|
PUC1205S1BDC DC CONVERTER 5V 1W |
143 |
|
Datasheet |
PUC-1B (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 6 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 100°C (With Derating) | 79.5% | - | - | Through Hole | - | - | cURus, IEC, UL | 62368-1 | |
|
RM-3.305SDC DC CONVERTER 5V 250MW |
395 |
|
Datasheet |
ECONOLINE RM (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 5V | - | - | - | 50mA | 250 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 72% | - | - | Through Hole | - | - | - | - | |
|
SR05S12DC DC CONVERTER 12V 6W |
1,237 |
|
Datasheet |
SR | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 15V | 34V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 96% | - | - | Through Hole | - | - | - | - | |
|
|
SR05S3V3DC DC CONVERTER 3.3V 2W |
1,154 |
|
Datasheet |
SR | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 4.75V | 34V | 3.3V | - | - | - | 500mA | 2 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 91% | - | - | Through Hole | - | - | - | - | |
|

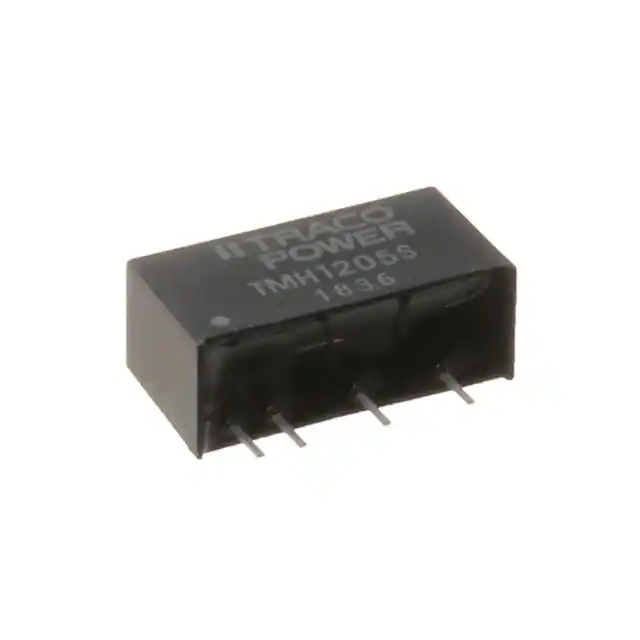

TMH 1205SDC DC CONVERTER 5V 2W |
141 |
|
Datasheet |
TMH (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 12V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - | |
|
TMH 2415SDC DC CONVERTER 15V 2W |
107 |
|
Datasheet |
TMH (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 133mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
|
TMH 0512SDC DC CONVERTER 12V 2W |
104 |
|
Datasheet |
TMH (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 5V | 5.5V | 12V | - | - | - | 165mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - | |
|
MPM3509GQVE-AEC1-PDC DC CONVERTER 0.8-30V |
1,816 |
|
Datasheet |
- | 17-PowerLQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 0.8 ~ 30V | - | - | - | 900mA | - | - | ITE (Commercial) | OCP, OTP | - | - | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 17-QFN (3x5) | - | - | - | |
-Series.jpg)
|
TMH 0505SDC DC CONVERTER 5V 2W |
981 |
|
Datasheet |
TMH (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Through Hole | - | - | - | - | |
|
SPU03L-12DC DC CONVERTER 12V 3W |
998 |
|
Datasheet |
SPU03 (3W) | 7-SIP Module, 4 Leads | - | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 90°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - | |
|
|
SPU03N-12DC DC CONVERTER 12V 3W |
618 |
|
Datasheet |
SPU03 (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 90°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
|
PM05S050ADC DC CONVERTER 5V 3W |
468 |
|
Datasheet |
PM05S | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 6.5V | 32V | 5V | - | - | - | 500mA | 3 W | - | ITE (Commercial) | OCP, OTP, SCP | -40°C ~ 90°C | 94% | - | - | Through Hole | - | - | - | - | |
|
3S4A_1218S1UPISOLATED MODULE DC DC CONVERTERS |
108 |
|
Datasheet |
3S4A_1UP (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 18V | - | - | - | 166mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 74% | - | - | Through Hole | - | - | CE | - | |
|
RB-2405DDC DC CONVERTER +/-5V 1W |
229 |
|
Datasheet |
ECONOLINE RB (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
|
RB-2415DDC DC CONVERTER +/-15V 1W |
223 |
|
Datasheet |
ECONOLINE RB (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|
|
RB-1515DDC DC CONVERTER +/-15V 1W |
138 |
|
Datasheet |
ECONOLINE RB (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|
UCC12050DVEDC DC CONVERTER 3.3V 5V 500MW |
2,451 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V, 5V | - | - | - | 140mA, 100mA | 500 mW | 5 kV | ITE (Commercial), Laboratory, Medical | Remote On/Off | -40°C ~ 125°C (With Derating) | 60% | - | - | Surface Mount | 16-SOIC | Enable, Active High | CQC, TUV, UL, VDE | - | |
|
TPSM5601R5RDAR4.2-V TO 60-V INPUT, 1-V TO 6-V |
1,602 |
|
Datasheet |
HotRod™ | 15-PowerBQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.2V | 60V | 1 ~ 6V | - | - | - | 1.5A | 9 W | - | ITE (Commercial) | Adjustable Output, Standby Output | -40°C ~ 125°C | 86% | - | - | Surface Mount | 15-B3QFN (5x5.5) | - | - | - | |
|
TPSM5601R5SRDAR4.2-V TO 60-V INPUT, 1-V TO 6-V |
360 |
|
Datasheet |
HotRod™ | 15-PowerBQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.2V | 60V | 1 ~ 6V | - | - | - | 1.5A | 9 W | - | ITE (Commercial) | Adjustable Output, Standby Output | -40°C ~ 125°C | 86% | - | - | Surface Mount | 15-B3QFN (5x5.5) | - | - | - |
