DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IE2415SHDC DC CONVERTER 15V 1W |
20 |
|
Datasheet |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 66mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
|
IE1224SHDC DC CONVERTER 24V 1W |
19 |
|
Datasheet |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
NME1212DCDC DC CONVERTER 12V 1W |
0 |
|
Datasheet |
NME (1W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 76% | - | - | Through Hole | - | - | - | - | |
|
2S7WB_2405S3RPDC-DC |
25 |
|
Datasheet |
2S7WB_3RP (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 76% | - | - | Through Hole | - | - | - | - | |
|
ITV0515SADC DC CONVERTER 15V 1W |
20 |
|
Datasheet |
ITV (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 66.7mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
ITV1212SADC DC CONVERTER 12V 1W |
20 |
|
Datasheet |
ITV (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 83.3mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
ITV0505SADC DC CONVERTER 5V 1W |
0 |
|
Datasheet |
ITV (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | - | - | |
|
RKZE-0505S/PDC DC CONVERTER 5V 2W |
11 |
|
Datasheet |
RKZE (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 80°C | 83% | - | - | Through Hole | - | - | - | - | |
|
RK-0509SDC DC CONVERTER 9V 1W |
0 |
|
Datasheet |
ECONOLINE RK (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|

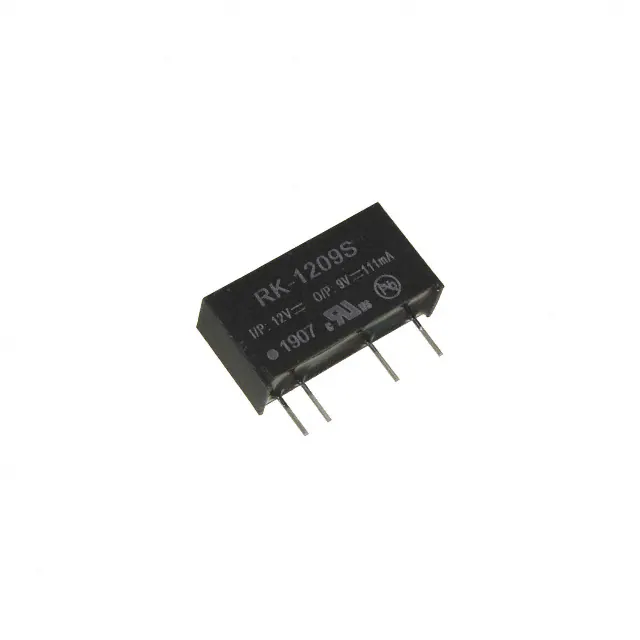

RK-1209SDC DC CONVERTER 9V 1W |
0 |
|
Datasheet |
ECONOLINE RK (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 111mA | 1 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|
RKZ-152005D/PDC DC CONVERTER 20V -5V 2W |
25 |
|
Datasheet |
ECONOLINE RKZ-xx2005D (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 20V | -5V | - | - | 50mA, 200mA | 2 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - | |
.jpg)
|
IML0224D12DC DC CONVERTER +/-12V 2W |
20 |
|
Datasheet |
IML02 (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 4 kV | Medical | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
IML0224D09DC DC CONVERTER +/-9V 2W |
18 |
|
Datasheet |
IML02 (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 4 kV | Medical | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
RH-0512DDC DC CONVERTER +/-12V 1W |
13 |
|
Datasheet |
ECONOLINE RH (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 90°C | 84% | - | - | Through Hole | - | - | - | - | |
|
RN-2405SDC DC CONVERTER 5V 1.25W |
13 |
|
Datasheet |
ECONOLINE RN (1.25W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 250mA | 1.25 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 72% | - | - | Through Hole | - | - | - | - | |
|
R1D-0524DC DC CONVERTER +/-24V 1W |
23 |
|
Datasheet |
ECONOLINE R1D (1W) | 10-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 24V | -24V | - | - | 21mA, 21mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 84% | - | - | Surface Mount | - | - | - | - | |
|
DPBW06G-05DC DC CONVERTER +/-5V 6W |
14 |
|
Datasheet |
DPBW06 (6W) | 8-SIP Module, 7 Leads | - | Active | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
TRV 1-0513DC DC CONVERTER 15V 1W |
25 |
|
Datasheet |
TRV 1 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 87.5% | - | - | Through Hole | - | - | - | - | |
|
TRV 1-0511DC DC CONVERTER 5V 1W |
12 |
|
Datasheet |
TRV 1 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|
TRV 1-1211DC DC CONVERTER 5V 1W |
10 |
|
Datasheet |
TRV 1 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - |
