DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SA01S0503ADC DC CONVERTER 3.3V 1W |
0 |
|
Datasheet |
SA01S (1W) | 8-SMD Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 300mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 75% | - | - | Surface Mount | - | - | - | - | |
|
RD-2415DDC DC CONVERTER +/-15V 2W |
12 |
|
Datasheet |
ECONOLINE RD (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - | |
|

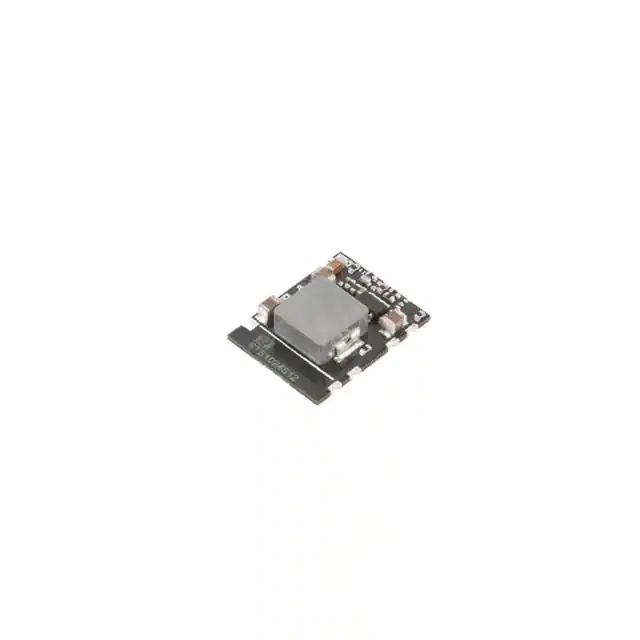

STS1024S12DC DC CONVERTER 12V |
15 |
|
Datasheet |
STS10 | 10-SMD Module, 6 Leads | Tube | Active | Non-Isolated PoL Module | 1 | 15V | 36V | 12V | - | - | - | 1A | - | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C (With Derating) | 95% | - | - | Surface Mount | - | - | - | - | |
|
STS1024S05DC DC CONVERTER 5V |
0 |
|
Datasheet |
STS10 | 10-SMD Module, 6 Leads | Tube | Active | Non-Isolated PoL Module | 1 | 6.5V | 36V | 5V | - | - | - | 1A | - | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C (With Derating) | 95.5% | - | - | Surface Mount | - | - | - | - | |
|

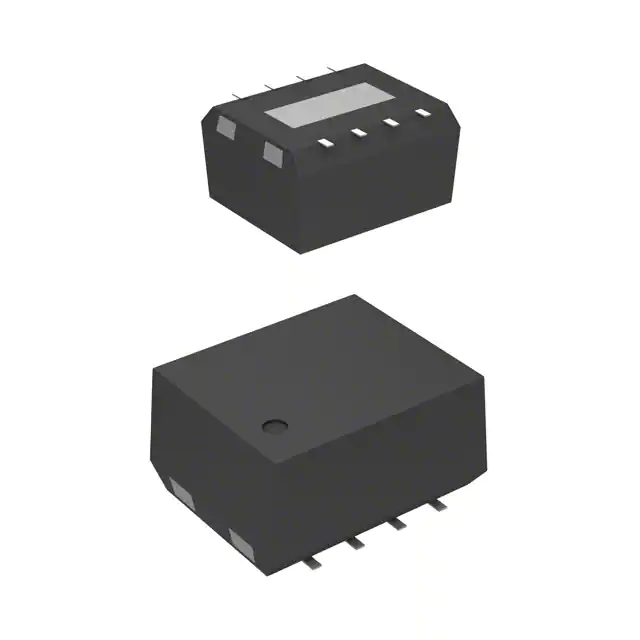

R1S8-0505/PDC DC CONVERTER 5V 1W |
11 |
|
Datasheet |
ECONOLINE R1S (1W) | 8-SMD Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | - | - | - | - | |
|
3S7A_0524S1.5UPISOLATED MODULE DC DC CONVERTERS |
13 |
|
Datasheet |
3S7A_1.5UP (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 125mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | - | - | CE | - | |
|
R0.5S-0512DC DC CONVERTER 12V 500MW |
0 |
|
Datasheet |
ECONOLINE R0.5S (0.5W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 42mA | 500 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 77% | - | - | Surface Mount | - | - | - | - | |
|
SRH05S6V5DC DC CONVERTER 6.5V |
23 |
|
Datasheet |
SRH05 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 9V | 72V | 6.5V | - | - | - | 500mA | - | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 3-SIP Module | - | - | - | |
|
RO-2405S/HPDC DC CONVERTER 5V 1W |
22 |
|
Datasheet |
ECONOLINE RO (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
IHL0212D09DC DC CONVERTER +/-9V 2W |
20 |
|
Datasheet |
IHL02 (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C | 81% | - | - | Through Hole | - | - | - | - | |
|
|
IHL0224D05DC DC CONVERTER +/-5V 2W |
20 |
|
Datasheet |
IHL02 (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C | 79% | - | - | Through Hole | - | - | - | - | |
|
TES 1-2422DC DC CONVERTER +/-12V 960MW |
16 |
|
Datasheet |
TES 1 (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 40mA, 40mA | 960 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 78% | - | - | Surface Mount | - | - | - | - | |
|
|
IHL0212D1509DC DC CONVERTER 15V -9V 2W |
5 |
|
Datasheet |
IHL02 (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -9V | - | - | 66.7mA, 111mA | 2 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C | 80% | - | - | Through Hole | - | - | - | - | |
|
NSD10-12S9DC DC CONVERTER 9V 10W |
1 |
|
Datasheet |
NSD10-S (10W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9.8V | 36V | 9V | - | - | - | 1.1A | 10 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -25°C ~ 70°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - | |
|
|
ROM-1215SDC DC CONVERTER 15V 1W |
0 |
|
Datasheet |
ECONOLINE ROM (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 66mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|
PCN2-S24-D5-SDC DC CONVERTER +/-5V 2W |
0 |
|
Datasheet |
PCN2-S (2W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 79% | - | - | Through Hole | - | - | EN | 55032 Class A | |
|
EC2SA11NHDC DC CONVERTER 5V 2W |
19 |
|
Datasheet |
EC2SANH (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | - | - | CE | - | |
|
TMU 3-24123 WATT UNREGULATED DC/DC CONVERT |
10 |
|
Datasheet |
TMU 3 (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 75°C | 86% | - | - | Through Hole | - | - | - | - | |
|
SCWN03E-03DC DC CONVERTER 3.3V 1.8W |
3 |
|
Datasheet |
SCWN03 (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 600mA | 1.8 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 73% | - | - | Through Hole | - | - | - | - | |
|
RH-0505DDC DC CONVERTER +/-5V 1W |
21 |
|
Datasheet |
ECONOLINE RH (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 90°C | 78% | - | - | Through Hole | - | - | - | - |
