DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MTC1528S12DC DC CONVERTER 12V 15W |
0 |
|
Datasheet |
MTC (15W) | 14-DIP Module, 8 Leads | Box | Active | Isolated Module | 1 | 15.5V | 40V | 12V | - | - | - | 1.25A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C | 80% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
DCM2322T72S17A0M60DC DC CONVERTER 15V 100W |
0 |
|
Datasheet |
VI Chip® DCM® | 9-DIP Module | Tray | Active | Isolated Module | 1 | 14V | 72V | 15V | - | - | - | 6.67A | 100 W | 3 kV | ITE (Commercial) | Adjustable Output | -55°C ~ 125°C | 93% | - | - | Through Hole | - | - | CE, cTUVus, cURus | - | |
|
|
DCM2322TA5N13A2M60DC DC CONVERTER 12V 120W |
0 |
|
Datasheet |
VI Chip® DCM® | 9-DIP Module | Tray | Active | Isolated Module | 1 | 43V | 154V | 12V | - | - | - | 10A | 120 W | 3 kV | ITE (Commercial) | Adjustable Output | -55°C ~ 125°C | 93% | - | - | Through Hole | - | - | CE, cTUVus, cURus | - | |
|
|
DCM2322TA5N0660M60DC DC CONVERTER 5V 60W |
0 |
|
Datasheet |
VI Chip® DCM® | 9-DIP Module | Tray | Active | Isolated Module | 1 | 43V | 154V | 5V | - | - | - | 12A | 60 W | 3 kV | ITE (Commercial) | Adjustable Output | -55°C ~ 125°C | 86.2% | - | - | Through Hole | - | - | CE | - | |
|
|
DCM2322TA5N17A2M60DC DC CONVERTER 15V 120W |
0 |
|
Datasheet |
VI Chip® DCM® | 9-DIP Module | Tray | Active | Isolated Module | 1 | 43V | 154V | 15V | - | - | - | 8A | 120 W | 3 kV | ITE (Commercial) | Adjustable Output | -55°C ~ 125°C | 90.8% | - | - | Through Hole | - | - | CE | - | |
|
RPA200H-11012SRUW/PDC DC CONVERTER 12V 200W |
0 |
|
Datasheet |
RPA200H (200W) | 10-DIP Module | Tube | Active | Isolated Module | 1 | 16.8V | 137.5V | 12V | - | - | - | 17A | 200 W | 4.2 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 93.5°C (With Derating) | 90% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
|
DCM2322T72S0435M60DC DC CONVERTER 3.3V 35W |
0 |
|
Datasheet |
VI Chip® DCM® | 9-DIP Module | Tray | Active | Isolated Module | 1 | 14V | 72V | 3.3V | - | - | - | 10.7A | 35 W | 3 kV | ITE (Commercial) | Adjustable Output | -55°C ~ 125°C | 83% | - | - | Through Hole | - | - | CE | - | |
|
CFB750-300S12DC DC CONVERTER 12V 750W |
0 |
|
Datasheet |
CFB750-300 (750W) | Full Brick | Box | Active | Isolated Module | 1 | 200V | 425V | 12V | - | - | - | 62.5A | 750 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | Full Brick | Enable, Active High | CE | 60950-1 | |
|
SK1240NDC DC CONVERTER -4000V 1W |
0 |
|
Datasheet |
SK | 5-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 10.8V | 13.2V | -4000V | - | - | - | 250µA | 1 W | - | ITE (Commercial) | - | -40°C ~ 60°C | 60% | - | - | Through Hole | - | - | - | - | |
|
UMHV1220NDC DC CONVERTER -2000V 500MW |
1 |
|
Datasheet |
UMHV | 5-DIP Module | Bulk | Active | High Voltage - Isolated Module | 1 | 10.8V | 13.2V | -2000V | - | - | - | 250µA | 500 mW | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 55% | - | - | Through Hole | - | - | - | - | |
|
1.25V12-P0.5DC DC CONVERTER 1250V 500MW |
1 |
|
Datasheet |
UltraVolt® V | 9-SIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 11V | 13V | 1250V | - | - | - | 400µA | 500 mW | - | ITE (Commercial) | Adjustable Output | -10°C ~ 65°C | - | - | - | Through Hole | - | Enable, Active High | CE, cUL, cURus, UL | - | |
|
|
1V12-P0.5DC DC CONVERTER 100V 500MW |
0 |
|
Datasheet |
UltraVolt® V | 9-SIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 11V | 13V | 1000V | - | - | - | 500µA | 500 mW | - | ITE (Commercial) | Adjustable Output | -10°C ~ 65°C | - | - | - | Through Hole | - | Enable, Active High | CE, cUL, cURus, UL | - | |
|

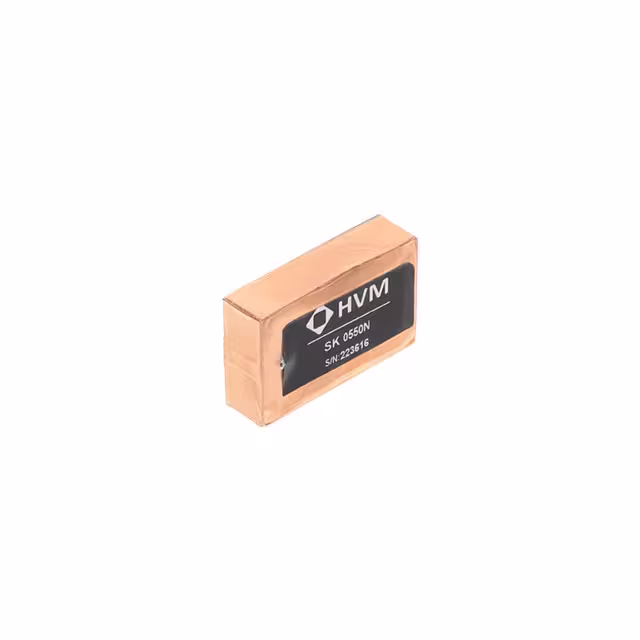

SK0550NMINIATURE REGULATED HV DC-DC CON |
0 |
|
Datasheet |
SK | 5-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 4.5V | 5.5V | 0 ~ -5000V | - | - | - | 200µA | 1 W | - | ITE (Commercial) | Adjustable Output | -40°C ~ 60°C | 60% | - | - | Through Hole | - | - | - | - | |
|
SK1250NMINIATURE REGULATED HV DC-DC CON |
0 |
|
Datasheet |
SK | 5-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 11.5V | 12.5V | 0 ~ -5000V | - | - | - | 200µA | 1 W | - | ITE (Commercial) | Adjustable Output | -40°C ~ 60°C | 60% | - | - | Through Hole | - | - | - | - | |
|
|
SK1250MINIATURE REGULATED HV DC-DC CON |
0 |
|
Datasheet |
SK | 5-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 11.5V | 12.5V | 0 ~ 5000V | - | - | - | 200µA | 1 W | - | ITE (Commercial) | Adjustable Output | -40°C ~ 60°C | 60% | - | - | Through Hole | - | - | - | - | |
|
VE-J71-CYDC DC CONVERTER 12V 50W |
0 |
|
Datasheet |
VE-J00™ (50W) | Half Brick | Tube | Active | Isolated Module | 1 | 100V | 375V | 12V | - | - | - | 4.17A | 50 W | 3 kV | ITE (Commercial) | OCP, SCP | -25°C ~ 100°C | 90% | - | - | Through Hole | - | - | - | - | |
|
|
1.5V24-P1DC DC CONVERTER 1500V 1W |
1 |
|
Datasheet |
UltraVolt® V | 9-SIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 22V | 26V | 1500V | - | - | - | 670µA | 1 W | - | ITE (Commercial) | Adjustable Output | -10°C ~ 65°C | - | - | - | Through Hole | - | Enable, Active High | CE, cUL, cURus, UL | - | |
|
DCM4623TD2N13C8T00DC DC CONVERTER 12V 375W |
1 |
|
Datasheet |
VI Chip® DCM® (375W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 120V | 420V | 12V | - | - | - | 31.3A | 375 W | 4.242 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C (With Derating) | 93.2% | - | - | Through Hole | - | - | - | - | |
|
NBM6123T60E12A7T0RDC DC CONVERTER 12V 2 KW |
0 |
|
Datasheet |
VI Chip® NBM™ | 24-DIP Module | Tray | Active | Bus Converter Module | 1 | 36V | 60V | 12V | - | - | - | 170A | 2 kW | - | ITE (Commercial) | - | -40°C ~ 125°C | 98% | - | - | Through Hole | - | - | - | - | |
|
BCM6123TD1E13A3T0RDC DC CONVERTER 12V 1600W |
0 |
|
Datasheet |
VI Chip® BCM® | 24-DIP Module | Tray | Active | Bus Converter Module | 1 | 260V | 410V | 12V | - | - | - | 125A | 1600 W | 4.242 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 97.4% | - | - | Through Hole | - | - | - | - |
