DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V300A15C500BLDC DC CONVERTER 15V 500W |
0 |
|
Datasheet |
Maxi (500W) | Full Brick | Tube | Active | Isolated Module | 1 | 180V | 375V | 15V | - | - | - | 33.3A | 500 W | 3 kV | ITE (Commercial) | Remote On/Off, UVLO | -20°C ~ 100°C | 86% | - | - | Through Hole | - | - | - | - | |
|
VI-JW2-IXDC DC CONVERTER 15V 75W |
1 |
|
Datasheet |
VI-J00™ (75W) | Half Brick | Bulk | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 5A | 75 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 100°C | 90% | - | - | Through Hole | - | - | - | - | |
|
DCM3623T75H26C2M00DC DC CONVERTER 24V 320.2W |
1 |
|
Datasheet |
VI Chip® DCM® (320W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 13.34A | 320.2 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -55°C ~ 125°C | 91.8% | - | - | Through Hole | - | - | - | - | |
|
|
DCM3623T36G53C2M00DC DC CONVERTER 48V 320.2W |
0 |
|
Datasheet |
VI Chip® DCM® (320W) | 9-DIP Module | Bulk | Active | Isolated Module | 1 | 18V | 36V | 48V | - | - | - | 6.67A | 320.2 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -55°C ~ 125°C | 93% | - | - | Through Hole | - | - | - | - | |
|
V24C15M100BLDC DC CONVERTER 15V 100W |
1 |
|
Datasheet |
MICRO (100W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 6.67A | 100 W | 3 kV | ITE (Commercial) | OVP, UVLO | -55°C ~ 100°C | 89% | - | - | Through Hole | - | - | - | - | |
|
V375A28C600BF2DC DC CONVERTER 28V 600W |
1 |
|
Datasheet |
Maxi (600W) | Full Brick | Bulk | Active | Isolated Module | 1 | 250V | 425V | 28V | - | - | - | 21.43A | 600 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 87.8% | - | - | Through Hole | - | - | - | - | |
|
DCM4623TD2K06B5M00DC DC CONVERTER 5V 250W |
0 |
|
Datasheet |
VI Chip® DCM® (250W) | 9-DIP Module | Bulk | Active | Isolated Module | 1 | 160V | 420V | 5V | - | - | - | 50A | 250 W | 4.242 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -55°C ~ 125°C | 91.1% | - | - | Through Hole | - | - | - | - | |
|
1A12-N4A-SERIES DC TO HVDC CONVERTER, S |
0 |
|
Datasheet |
UltraVolt® A | 11-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 11V | 16V | 0 ~ 1000V | - | - | - | 4mA | 4 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 65°C | - | - | - | Through Hole | - | - | CE, cUL, cURus, UL | - | |
|
|
MDCM270P050M250A40DC DC CONVERTER 5V 250W |
0 |
|
Datasheet |
VI Chip® DCM® (250W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 160V | 420V | 5V | - | - | - | 50A | 250 W | 4.242 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -55°C ~ 125°C | 90.7% | - | - | Through Hole | - | - | - | - | |
|
4D15-P1D-SERIES DC TO HVDC CONVERTER, S |
1 |
|
Datasheet |
UltraVolt® D | 8-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 13.5V | 16.5V | 0 ~ 4000V | - | - | - | 250µA | 1 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 65°C | - | - | - | Through Hole | - | - | - | - | |
|

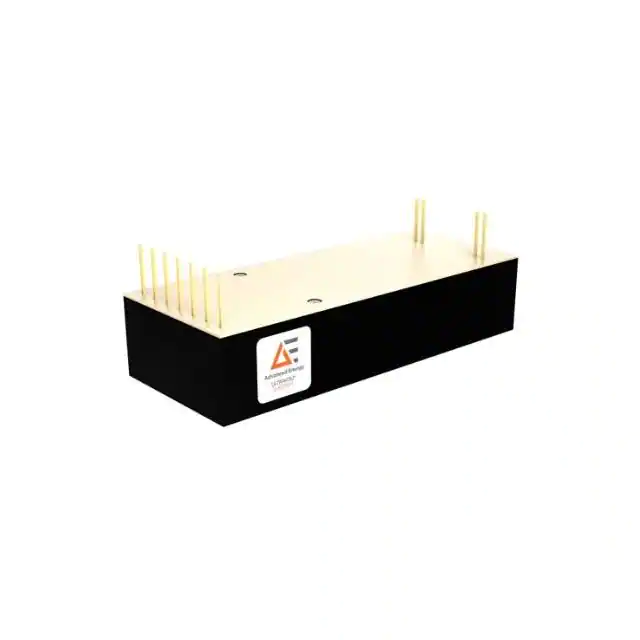

1A12-P4A-SERIES DC TO HVDC CONVERTER, S |
0 |
|
Datasheet |
UltraVolt® A | 11-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 11V | 16V | 0 ~ 1000V | - | - | - | 4mA | 4 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 65°C | - | - | - | Through Hole | - | - | CE, cUL, cURus, UL | - | |
|
|
DCM4623TD2H26F0M00DC DC CONVERTER 24V 600W |
0 |
|
Datasheet |
VI Chip® DCM® (600W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 200V | 420V | 24V | - | - | - | 25A | 600 W | 4.242 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -55°C ~ 125°C | 93.6% | - | - | Through Hole | - | - | - | - | |
|
|
DCM4623TD2K53E0M70DC DC CONVERTER 48V 500W |
0 |
|
Datasheet |
VI Chip® DCM® (500W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 160V | 420V | 48V | - | - | - | 10.42A | 500 W | 4.242 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -55°C ~ 125°C | 93.6% | - | - | Through Hole | - | - | - | - | |
|
DCM3414B50M26C2C09DC DC CONVERTER 24V 320W |
0 |
|
Datasheet |
VI Chip® DCM® (320W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 16V | 50V | 24V | - | - | - | 13.33A | 320 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -20°C ~ 125°C | 90.7% | - | - | Through Hole | - | - | - | - | |
|
|
MDCM270P240M500A40DC DC CONVERTER 24V 500W |
0 |
|
Datasheet |
VI Chip® DCM® (500W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 160V | 420V | 24V | - | - | - | 20.83A | 500 W | 4.242 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -55°C ~ 125°C | 93.1% | - | - | Through Hole | - | - | - | - | |
|

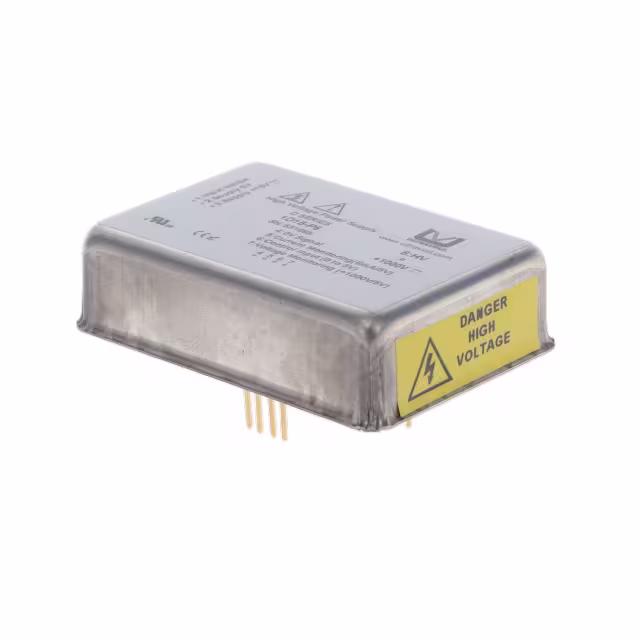

1D15-P6D-SERIES DC TO HVDC CONVERTER, S |
1 |
|
Datasheet |
UltraVolt® D | 8-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 13.5V | 16.5V | 0 ~ 1000V | - | - | - | 6mA | 6 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 65°C | - | - | - | Through Hole | - | - | - | - | |
|
DCM3714BD2K31E0C09DC DC CONVERTER 28V 500W |
0 |
|
Datasheet |
VI Chip® DCM® (500W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 160V | 420V | 28V | - | - | - | 17.86A | 500 W | 2.121 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -20°C ~ 125°C | 93.6% | - | - | Through Hole | - | - | - | - | |
|

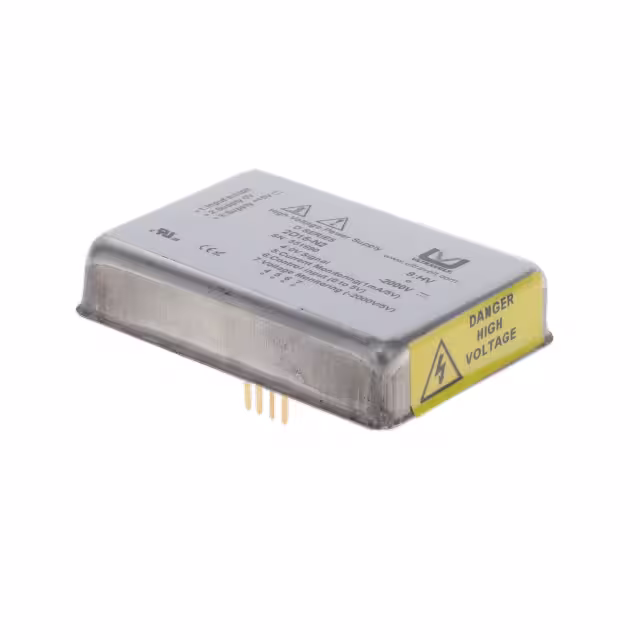

2D15-N2D-SERIES DC TO HVDC CONVERTER, S |
0 |
|
Datasheet |
UltraVolt® D | 8-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 13.5V | 16.5V | 0 ~ 2000V | - | - | - | 1mA | 2 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 65°C | - | - | - | Through Hole | - | - | - | - | |
|

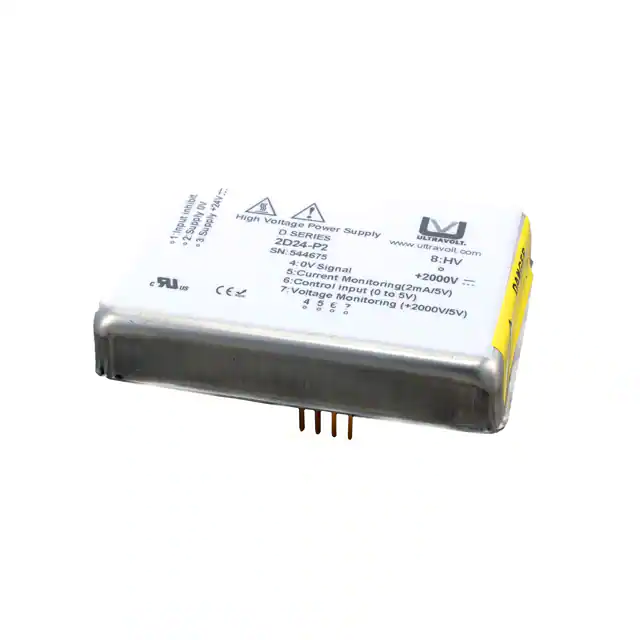

2D24-P2D-SERIES DC TO HVDC CONVERTER, S |
0 |
|
Datasheet |
UltraVolt® D | 8-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 22V | 26V | 0 ~ 2000V | - | - | - | 1mA | 2 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 65°C | - | - | - | Through Hole | - | - | - | - | |
|
MI-J21-MZDC DC CONVERTER 12V 25W |
1 |
|
Datasheet |
MI-J00™ (25W) | 9-DIP Module | Bulk | Active | Isolated Module | 1 | 18V | 50V | 12V | - | - | - | 2.083A | 25 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -55°C ~ 85°C | 90% | - | - | Through Hole | - | - | - | - |
