DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

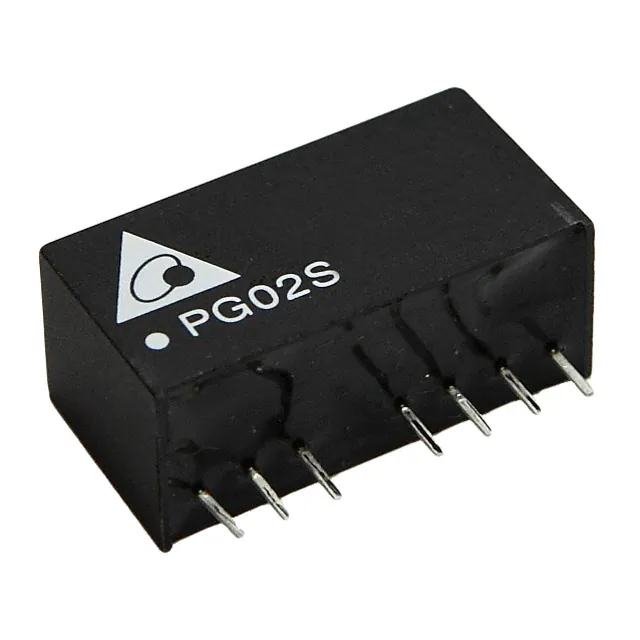

PG02S2405ADC DC CONVERTER 5V 2W |
1,871 |
|
Datasheet |
PG02S (2W) | 8-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 400mA | 2 W | 1 kV | Medical | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 77% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
ADUM6000ARWZDC DC CONVERTER 3.3V 5V |
94 |
|
Datasheet |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Isolated Module | 1 | 3V | 5.5V | 3.3V, 5V | - | - | - | 80mA | - | 5 kV | Medical | OCP, OTP, UVLO | -40°C ~ 105°C | 31% | - | - | Surface Mount | 16-SOIC | - | - | - | |
|
TSR 1-2465DC DC CONVERTER 6.5V 6.5W |
643 |
|
Datasheet |
TSR 1 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 9V | 36V | 6.5V | - | - | - | 1A | 6.5 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | - | - | - | - | |
|
R1S-0505/HP-RDC DC CONVERTER 5V 1W |
787 |
|
Datasheet |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | - | - | - | - | |
|
TSM 0505S-TRDC DC CONVERTER 5V 1W |
1,061 |
|
Datasheet |
TSM (1W) | 14-SMD Module, 8 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | - | - | - | - | |
|
AG9905-MTBDC DC CONVERTER 5V 9W |
482 |
|
Datasheet |
Ag9900 | - | Tray | Active | Isolated PoE (Power over Ethernet) Module | 1 | 36V | 57V | 5V | - | - | - | 1.8A | 9 W | 1.5 kV | ITE (Commercial) | OVP, SCP | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | - | - | 60950-1 | |
|
|
AG9924-MTBDC DC CONVERTER 24V 12W |
156 |
|
Datasheet |
Ag9900 | - | Tray | Active | Isolated PoE (Power over Ethernet) Module | 1 | 36V | 57V | 24V | - | - | - | 500mA | 12 W | 1.5 kV | ITE (Commercial) | OVP, SCP | -40°C ~ 85°C | 87% | - | - | Surface Mount | - | - | - | 60950-1 | |
|
TSR 1-2490DC DC CONVERTER 9V 9W |
479 |
|
Datasheet |
TSR 1 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 12V | 36V | 9V | - | - | - | 1A | 9 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | - | - | - | - | |
|

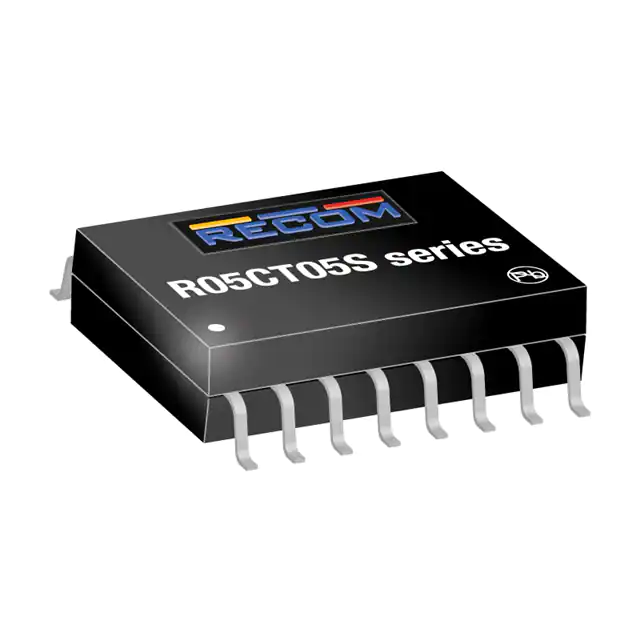

R05CT05S-RDC DC CONVERTER 5V 500MW |
1,920 |
|
Datasheet |
ECONOLINE R05CT05S (0.5W) | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 100mA | 500 mW | 5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 140°C (With Derating) | 60% | - | - | Surface Mount | 16-SOIC | - | - | - | |
.jpg)
|
MAXM15064AMB+TDC DC CONVERTER 0.9-5V |
6,137 |
|
Datasheet |
- | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 60V | 0.9 ~ 5V | - | - | - | 300mA | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 10-eMGA (3x2.6) | - | - | - | |
|
LMZ10505TZX-ADJ/NOPBDC DC CONVERTER 0.8-5V |
1,519 |
|
Datasheet |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.95V | 5.5V | 0.8 ~ 5V | - | - | - | 5A | - | - | ITE (Commercial) | UVLO | -40°C ~ 125°C | 96% | - | - | Surface Mount | TO-PMOD-7 | Enable, Active High | - | - | |
|

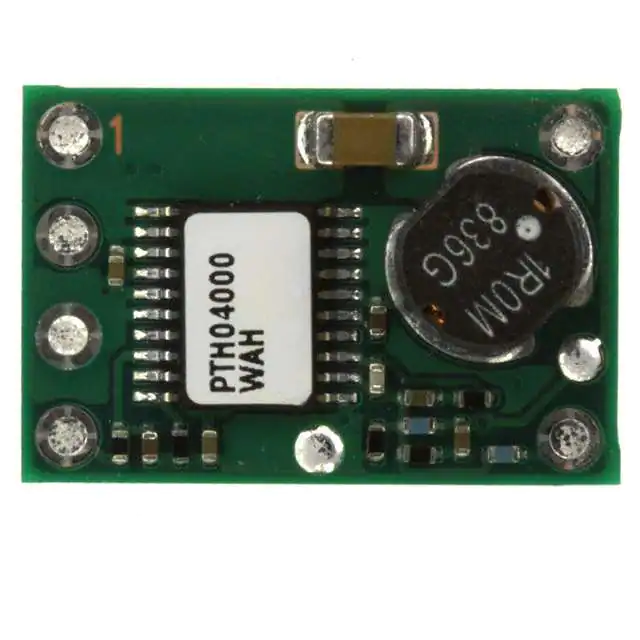

PTH04000WAHDC DC CONVERTER 0.9-3.6V |
729 |
|
Datasheet |
PTH04000W | 6-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 3V | 5.5V | 0.9 ~ 3.6V | - | - | - | 3A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 92% | - | - | Through Hole | - | - | - | - | |
|
LMZ12001TZ-ADJ/NOPBDC DC CONVERTER 0.8-6V |
1,561 |
|
Datasheet |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.8 ~ 6V | - | - | - | 1A | - | - | ITE (Commercial) | UVLO | -40°C ~ 125°C | 92% | - | - | Surface Mount | TO-PMOD-7 | Enable, Active High | - | - | |
|
TMV 2405SHIDC DC CONVERTER 5V 1W |
1,361 |
|
Datasheet |
TMV-HI (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 24V | 26.4V | 5V | - | - | - | 200mA | 1 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 70% | - | - | Through Hole | - | - | - | - | |
|
NME2405SCDC DC CONVERTER 5V 1W |
396 |
|
Datasheet |
NME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | 0°C ~ 70°C | 70% | - | - | Through Hole | - | - | - | - | |
|
NMV1212SACDC DC CONVERTER 12V 1W |
1,606 |
|
Datasheet |
NMV (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Through Hole | - | - | - | - | |
|

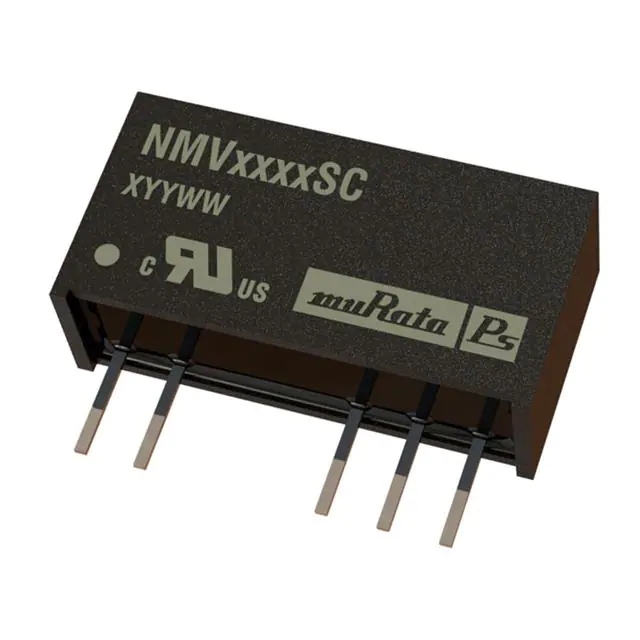

NMV0515SCDC DC CONVERTER +/-15V 1W |
279 |
|
Datasheet |
NMV (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | - | - | - | - | |
|
|
NMV0512SCDC DC CONVERTER +/-12V 1W |
201 |
|
Datasheet |
NMV (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|

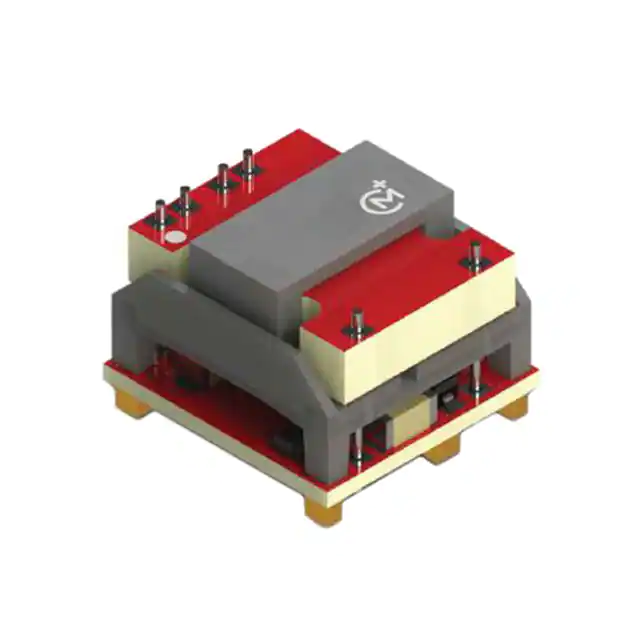

MTC2S1205MC-R7DC DC CONVERTER 5V 2W |
190 |
|
Datasheet |
MTC2 (2W) | 6-SMD | Tape & Reel (TR) | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 105°C | 80% | - | - | Surface Mount | - | - | - | - | |
|
ADUM5028-3BRIZDC DC CONVERTER 3.3V 300MW |
8,708 |
|
Datasheet |
IsoPower®, iCoupler® | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 3.3V | - | - | - | 60mA | - | 3 kV | ITE (Commercial) | OTP, UVLO | -40°C ~ 125°C | 33% | - | - | Surface Mount | 8-SOIC-IC | - | - | - |
