DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TME 2415SDC DC CONVERTER 15V 1W |
99 |
|
Datasheet |
TME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | - | - | - | - | |
|
173010335DC DC CONVERTER 3.3V 3.3W |
66 |
|
Datasheet |
MagI³C (1W) | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 3.3V | - | - | - | 1A | 3.3 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | - | - | - | - | |
|
LMW78_24-0.3RLDC-DC STEP DOWN REGULATORS |
33 |
|
Datasheet |
LMW78_0.5R | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 36V | 90V | 24V | - | - | - | 500mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | - | - | - | - | |
|
TME 1205SDC DC CONVERTER 5V 1W |
64 |
|
Datasheet |
TME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 71% | - | - | Through Hole | - | - | - | - | |
|
TMV 1212SDC DC CONVERTER 12V 1W |
28 |
|
Datasheet |
TMV (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 12V | 13.2V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - | |
|
RO-0509SDC DC CONVERTER 9V 1W |
59 |
|
Datasheet |
ECONOLINE RO (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
SPAN02A-12DC DC CONVERTER 12V 2W |
28 |
|
Datasheet |
SPAN02 (2W) | 8-SIP Module, 7 Leads | - | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 167mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 83% | - | - | Through Hole | - | - | - | - | |
|
MGJ2D122005MPC-R7DC DC CONVERTER 20V -5V 2W |
122 |
|
Datasheet |
MGJ2 (2W) | 8-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 10.8V | 13.2V | 20V | -5V | - | - | 80mA, 80mA | 2 W | 5.7 kV | ITE (Commercial), Medical | - | -40°C ~ 95°C (With Derating) | 76% | - | - | Surface Mount | - | - | - | 60601-1; 62368-1 | |
|
|
MGJ2D152005MPC-R7DC DC CONVERTER 20V -5V 2W |
38 |
|
Datasheet |
MGJ2 (2W) | 8-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 13.5V | 16.5V | 20V | -5V | - | - | 80mA, 80mA | 2 W | 5.7 kV | ITE (Commercial), Medical | - | -40°C ~ 95°C (With Derating) | 76% | - | - | Surface Mount | - | - | - | 60601-1; 62368-1 | |
|
MEZD72401A-GDC DC CONVERTER 5V |
49 |
|
Datasheet |
- | 3-SIP Module | Tray | Active | Linear Regulator Replacement | 1 | 6.5V | 36V | 5V | - | - | - | 1A | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | - | - | - | Through Hole | - | - | - | - | |
|
MGJ1D241505MPC-R7DC DC CONVERTER 15V -5V 1W |
80 |
|
Datasheet |
MGJ1 (1W) | 8-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -5V | - | - | 50mA, 50mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 105°C | 64% | - | - | Surface Mount | - | - | - | - | |
|
|
MGJ1D151505MPC-R7DC DC CONVERTER 15V -5V 1W |
80 |
|
Datasheet |
MGJ1 (1W) | 8-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 13.5V | 16.5V | 15V | -5V | - | - | 50mA, 50mA | 1 W | 5.7 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 105°C (With Derating) | 69% | - | - | Surface Mount | - | - | - | - | |
|
MEV1D1205SCDC DC CONVERTER +/-5V 1W |
43 |
|
Datasheet |
MEV1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - | |
|
EPM1210SJDC DC CONVERTER 12V 12W |
91 |
|
Datasheet |
EPM | 14-DIP Module | Bulk | Active | Isolated Module | 1 | 110V | 450V | 12V | - | - | - | 1A | 12 W | 3 kV | ITE (Commercial) | OCP, OTP, OVP | -20°C ~ 80°C | 80% | - | - | Through Hole | - | - | - | - | |
|
TSR 0.5-2465DC DC CONVERTER 6.5V 3.3W |
88 |
|
Datasheet |
TSR 0.5 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 8V | 32V | 6.5V | - | - | - | 500mA | 3.3 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 90°C (With Derating) | 95% | - | - | Through Hole | - | - | - | - | |
|
TMH 1212SDC DC CONVERTER 12V 2W |
49 |
|
Datasheet |
TMH (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 12V | 13.2V | 12V | - | - | - | 165mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
NMG1224SCDC DC CONVERTER 24V 2W |
81 |
|
Datasheet |
NMG (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 83mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86.5% | - | - | Through Hole | - | - | - | - | |
|
NKA0515SCDC DC CONVERTER +/-15V 1W |
58 |
|
Datasheet |
NKA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | - | - | - | - | |
|

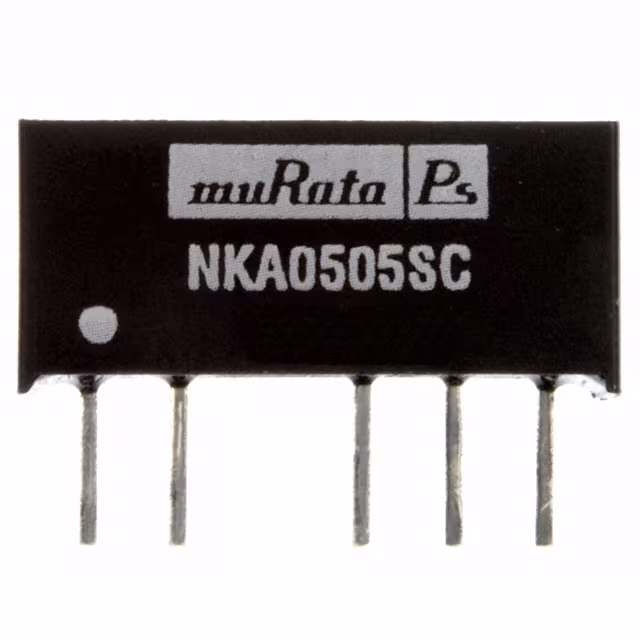

NKA0505SCDC DC CONVERTER +/-5V 1W |
26 |
|
Datasheet |
NKA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 70% | - | - | Through Hole | - | - | - | - | |
|
|
ROM-1205SDC DC CONVERTER 5V 1W |
30 |
|
Datasheet |
ECONOLINE ROM (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - |
