DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTE0505MECDC DC CONVERTER 5V 1W |
70 |
|
Datasheet |
NTE (1W) | 14-SMD Module, 8 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Surface Mount | - | - | - | - | |
|

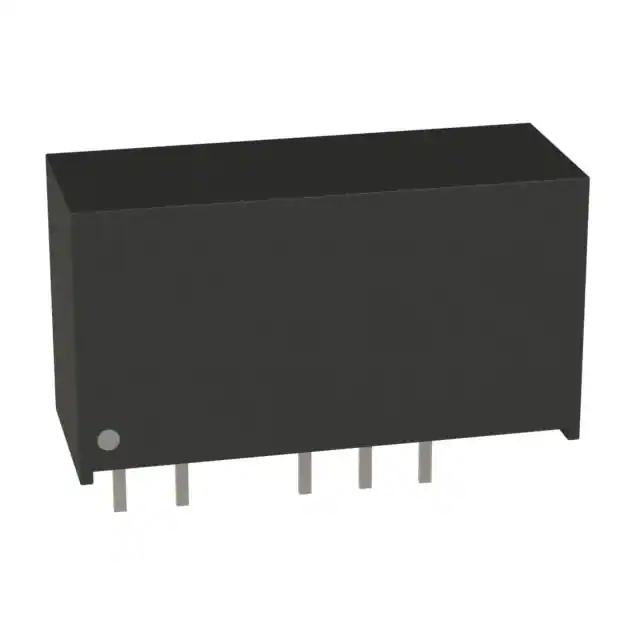

TMH 2405DDC DC CONVERTER +/-5V 2W |
40 |
|
Datasheet |
TMH (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 24V | 26.4V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | - | - | - | - | |
|
|
NTE1215MCDC DC CONVERTER 15V 1W |
29 |
|
Datasheet |
NTE (1W) | 14-SMD Module, 8 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 66mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Surface Mount | - | - | - | - | |
|
|
TMH 2412SDC DC CONVERTER 12V 2W |
67 |
|
Datasheet |
TMH (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 24V | 26.4V | 12V | - | - | - | 165mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | - | - | - | - | |
|
PCN2-S12-D15-SDC DC CONVERTER +/-15V 2W |
96 |
|
Datasheet |
PCN2-S (2W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 84% | - | - | Through Hole | - | - | EN | 55032 Class A | |
|
|
PCN2-S5-S12-SDC DC CONVERTER 12V 2W |
61 |
|
Datasheet |
PCN2-S (2W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 86% | - | - | Through Hole | - | - | EN | 55032 Class A | |
|
NMK0505SCDC DC CONVERTER +/-5V 2W |
65 |
|
Datasheet |
NMK (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | - | - | |
|

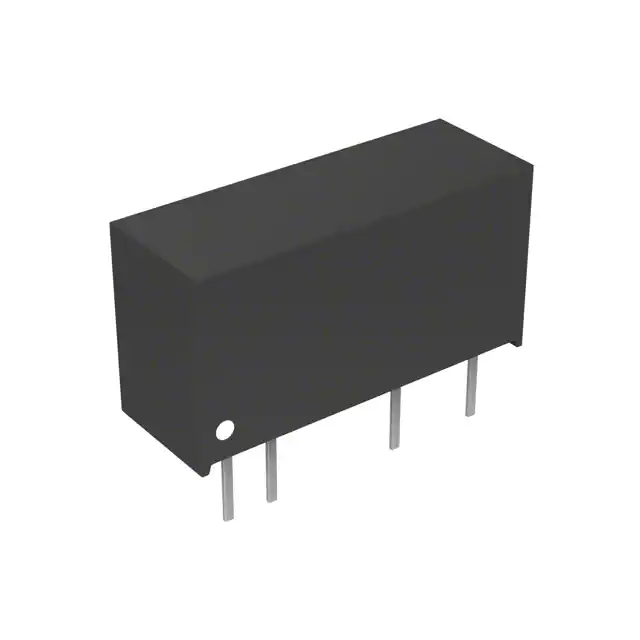

IML0224S05DC DC CONVERTER 5V 2W |
32 |
|
Datasheet |
IML02 (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 4 kV | Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
NME0524SCDC DC CONVERTER 24V 1W |
99 |
|
Datasheet |
NME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
IE0303SHDC DC CONVERTER 3.3V 1W |
80 |
|
Datasheet |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 3.3V | - | - | - | 300mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 71% | - | - | Through Hole | - | - | - | - | |
|
|
NME0512SCDC DC CONVERTER 12V 1W |
62 |
|
Datasheet |
NME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
NME0512DCDC DC CONVERTER 12V 1W |
43 |
|
Datasheet |
NME (1W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
MGJ2D052005SCDC DC CONVERTER 20V -5V 2W |
89 |
|
Datasheet |
MGJ2 (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 20V | -5V | - | - | 80mA, 40mA | 2 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 95°C | 78.5% | - | - | Through Hole | - | - | - | - | |
|

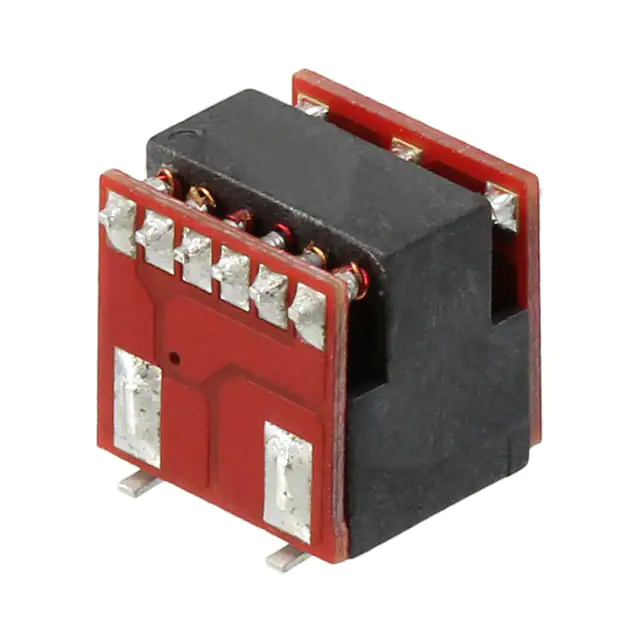

MTU2S0305MCDC DC CONVERTER 5V 2W |
42 |
|
Datasheet |
MTU2 (2W) | 6-SMD Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Surface Mount | - | - | - | - | |
|

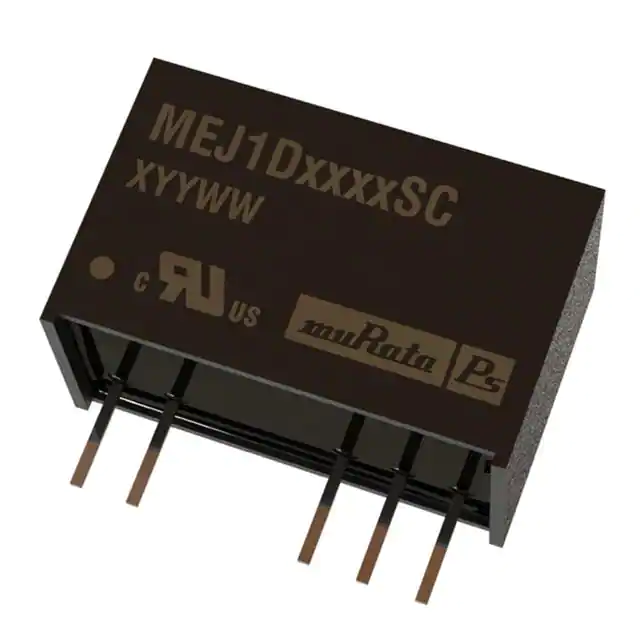

MEJ1D2415SCDC DC CONVERTER +/-15V 1W |
40 |
|
Datasheet |
MEJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78.5% | - | - | Through Hole | - | - | - | - | |
|

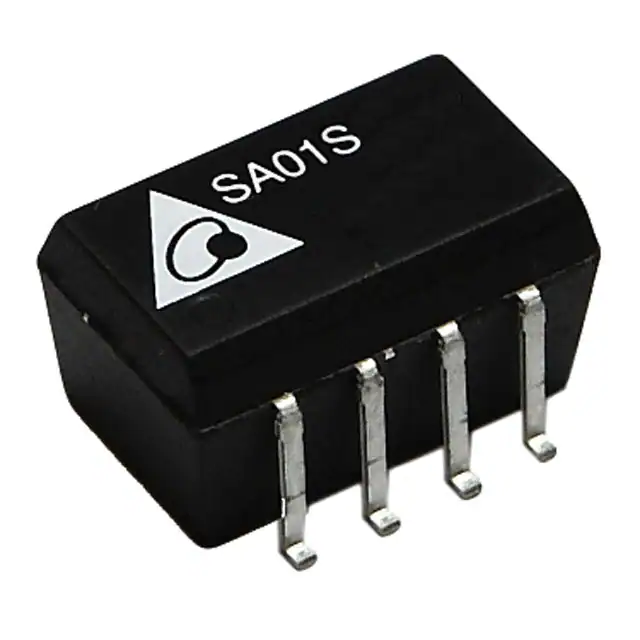

SA01S2403ADC DC CONVERTER 3.3V 1W |
36 |
|
Datasheet |
SA01S (1W) | 8-SMD Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 3.3V | - | - | - | 300mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 73% | - | - | Surface Mount | - | - | - | - | |
|

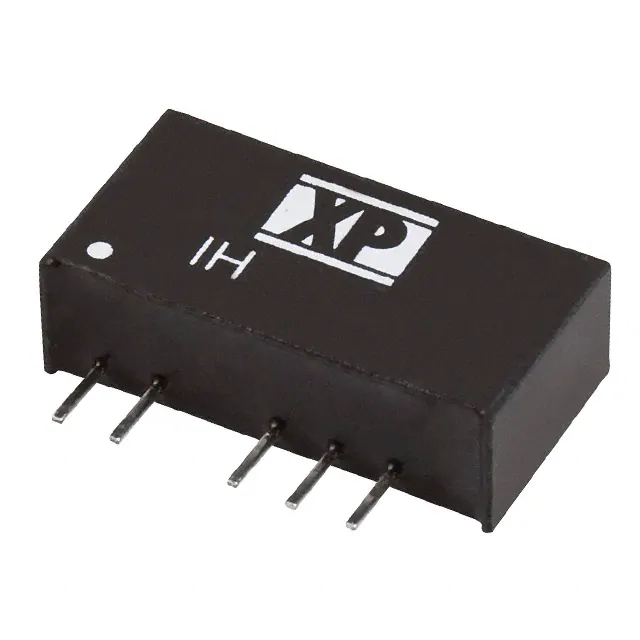

IH0509SDC DC CONVERTER +/-9V 2W |
66 |
|
Datasheet |
IH (2W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Through Hole | - | - | - | - | |
|

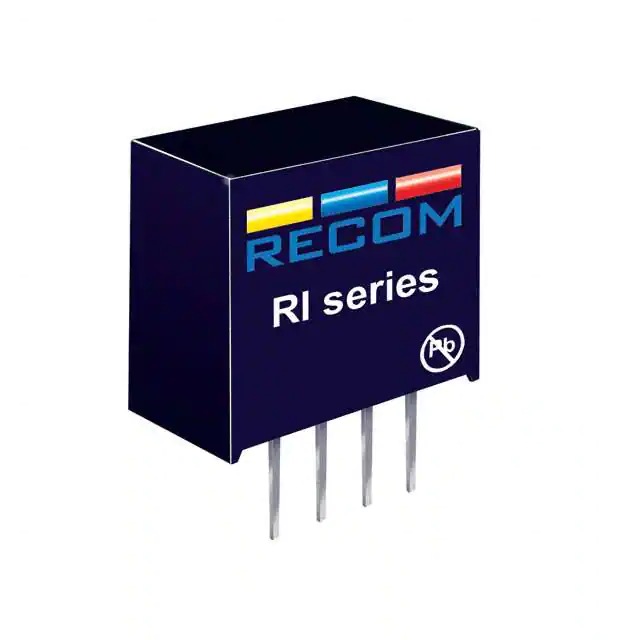

RI-1512SDC DC CONVERTER 12V 2W |
76 |
|
Datasheet |
ECONOLINE RI (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - | |
|
|
RI-0512SDC DC CONVERTER 12V 2W |
84 |
|
Datasheet |
ECONOLINE RI (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - | |
|
REC5K-2405SRW/H4/A5W DC/DC-CONVERTER 'ECONOLINE' D |
84 |
|
Datasheet |
REC5K-RW (5W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1A | 5 W | 4 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C (With Derating) | 78% | - | - | Through Hole | - | - | cURus | 60950-1 |
