DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PKE5315PIDC DC CONVERTER 15V 30W |
48 |
|
Datasheet |
PKE 5000 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 115°C (With Derating) | 91% | - | - | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 | |
|

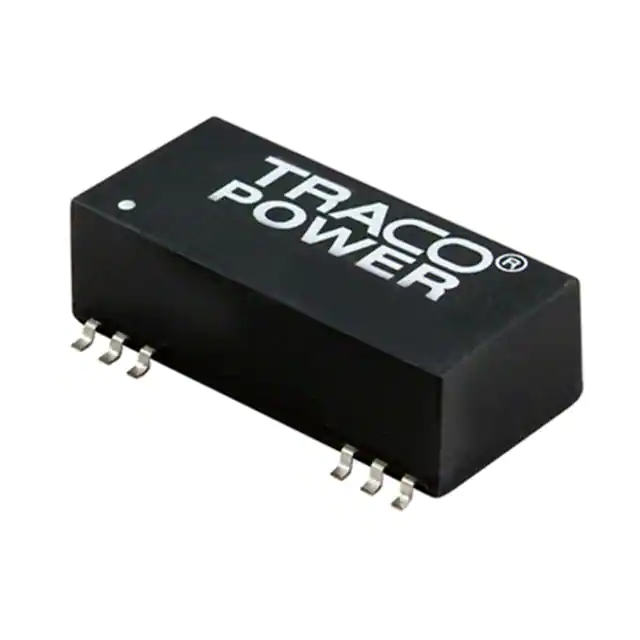

TES 3-2422WIDC DC CONVERTER +/-12V 3W |
32 |
|
Datasheet |
TES 3WI (3W) | 24-SMD Module, 12 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 81% | - | - | Surface Mount | - | - | - | - | |
|
THD 12-2413WIDC DC CONVERTER 15V 12W |
50 |
|
Datasheet |
THD 12WI (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 800mA | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - | |
|
EC4SBW-24S12DC DC CONVERTER 12V 20W |
73 |
|
Datasheet |
EC4SBW (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 | |
|
MGFW154812DC DC CONVERTER +/-12V |
46 |
|
Datasheet |
MGFW (15W) | 6-DIP Module | Box | Active | Isolated Module | 2 | 18V | 76V | 12V or 24V | -12V | - | - | 650mA, 650mA | - | 1.5 kV | ITE (Commercial) | Bridgeable, Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | - | - | |
|
|
MGFW152415DC DC CONVERTER +/-15V |
14 |
|
Datasheet |
MGFW (15W) | 6-DIP Module | Box | Active | Isolated Module | 2 | 9V | 36V | 15V or 30V | -15V | - | - | 500mA, 500mA | - | 1.5 kV | ITE (Commercial) | Bridgeable, Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | - | - | - | |
|

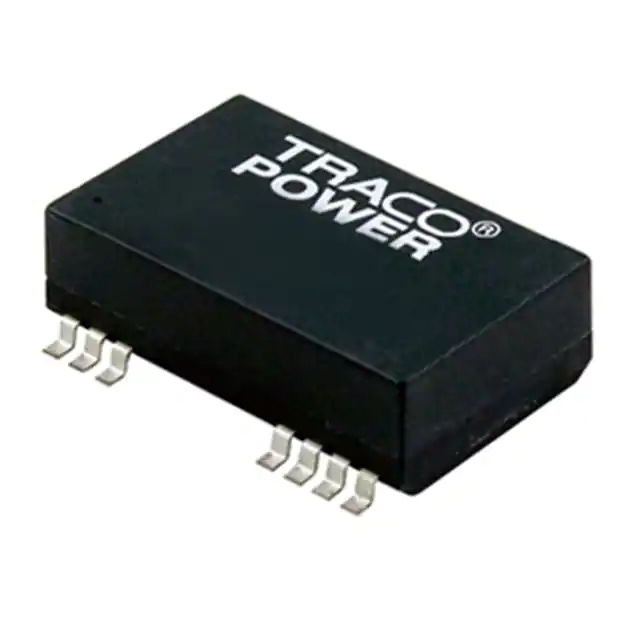

TES 5-2423WIDC DC CONVERTER +/-15V 5W |
20 |
|
Datasheet |
TES 5WI (5W) | 24-SMD Module, 14 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 165mA, 165mA | 5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 83% | - | - | Surface Mount | - | - | - | - | |
|
EC9BW-24S15DC DC CONVERTER 15V 30W |
8 |
|
Datasheet |
EC9BW (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90.5% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 | |
|
|
EHHD010A0B641-HZDC DC CONVERTER 12V 120W |
32 |
|
Datasheet |
Hammerhead™ EHHD010A0B (120W) | Eighth Brick | Bulk | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 105°C (With Derating) | 93% | - | - | Through Hole | Eighth Brick | - | - | - | |
|
TEN 5-0512DC DC CONVERTER 12V 6W |
27 |
|
Datasheet |
TEN 5 (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 7V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | Module | - | - | - | |
|
PKB4111DPIDC DC CONVERTER 5V 150W |
52 |
|
Datasheet |
PKB4000D (200W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 30A | 150 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 94.7% | - | - | Through Hole | Eighth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 | |
|
|
REC30E-2415SZ30W DC/DC-CONVERTER 'ECONOLINE' |
34 |
|
Datasheet |
REC30E-Z (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2A | 30 W | 2 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 90.5% | - | - | Through Hole | - | - | - | 62368-1 | |
|
TVN 3-1211DC DC CONVERTER 5V 3W |
35 |
|
Datasheet |
TVN 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 81% | - | - | Through Hole | - | - | - | - | |
|
TVN 3-2415DC DC CONVERTER 24V 3W |
34 |
|
Datasheet |
TVN 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 84% | - | - | Through Hole | - | - | - | - | |
_Series-1-Output.jpg)
|

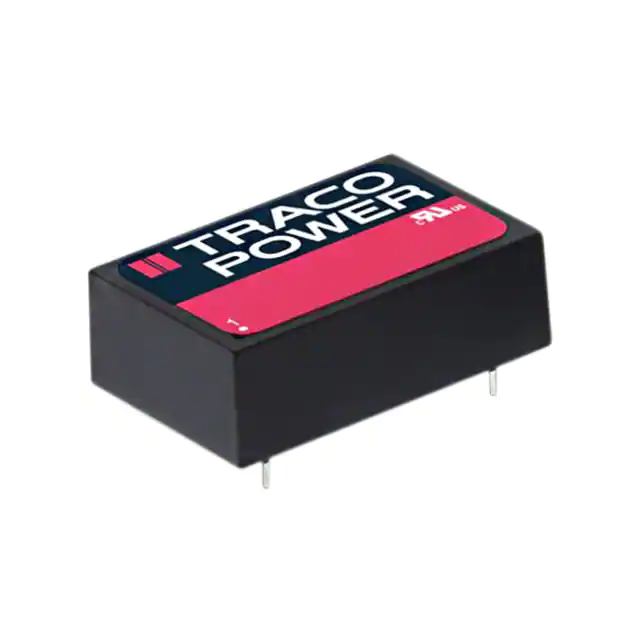

THM 6-2411DC DC CONVERTER 5V 6W |
46 |
|
Datasheet |
THM 6 (6W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1.2A | 6 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 88°C | 86% | - | - | Through Hole | - | - | - | - | |
|
|
THM 6-0511DC DC CONVERTER 5V 6W |
39 |
|
Datasheet |
THM 6 (6W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 1.2A | 6 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 88°C | 86% | - | - | Through Hole | - | - | - | - | |
|
SKA40B-12DC DC CONVERTER 12V 40W |
96 |
|
Datasheet |
SKA40 (40W) | 8-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 3.33A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 80°C (With Derating) | 90% | - | - | Through Hole | - | - | - | - | |
|
TMR 12-4811WIULTRA COMPACT 12 WATT DC/DC IN S |
40 |
|
Datasheet |
TMR 12WI (12W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5.1V | - | - | - | 2.4A | 12 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C | 89% | - | - | Through Hole | - | - | CB, cURus | 62368-1 | |
|
THN 20-2411DC DC CONVERTER 5V 20W |
87 |
|
Datasheet |
THN 20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 75°C (With Derating) | 90% | - | - | Through Hole | - | - | - | - | |
|
THD 12-2411DC DC CONVERTER 5.1V 12W |
10 |
|
Datasheet |
THD 12 (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5.1V | - | - | - | 2.4A | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | - | - |
