DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

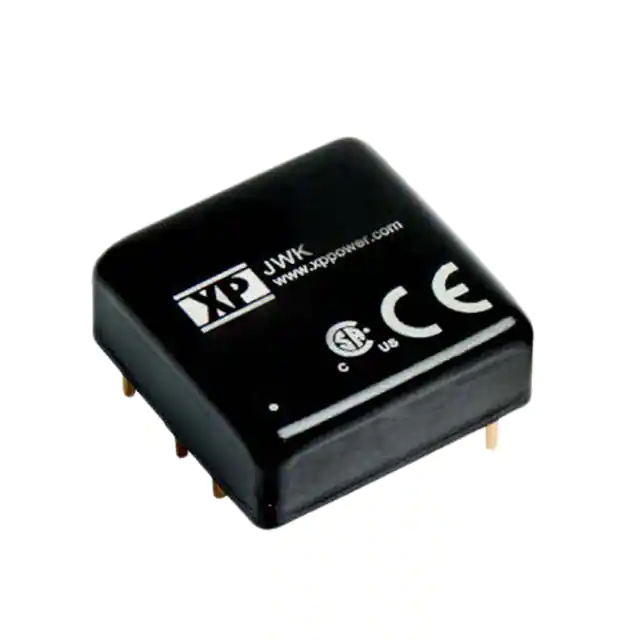

JWK2548S05DC DC CONVERTER 5V 25W |
18 |
|
Datasheet |
JWK25 (25W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 5A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 105°C | 90% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|
TON 15-2412WIDC DC CONVERTER 12V 16W |
22 |
|
Datasheet |
TON 15WI (15W) | 6-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.3A | 16 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
|
THL 30-2412WI30W 1X1" DC/DC CONVERTER ISOLATE |
14 |
|
Datasheet |
THL 30WI (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.5A | 30 W | 1.8 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 80°C | 88% | - | - | Through Hole | - | - | CB, cURus | 62368-1 | |
|

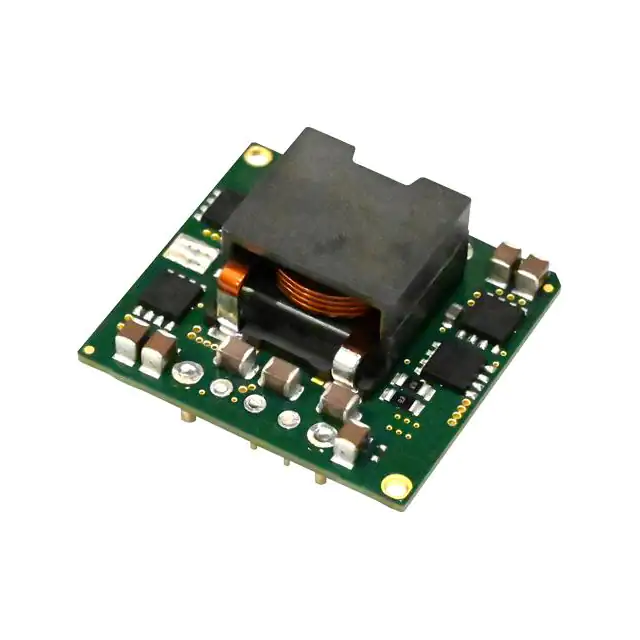

I7C2W020A120V-003-RDC DC CONVERTER 8-24V 300W |
24 |
|
Datasheet |
I7c (300W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 36V | 8 ~ 24V | - | - | - | 20A | 300 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 97% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | - | 60950-1; 62368-1 | |
|
|
RSDW60F-24DC DC CONVERTER 24V 60W |
6 |
|
Datasheet |
RSDW60 (60W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 2.5A | 60 W | 1.6 kV | Railway | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | - | - | CE, EAC | - | |
.jpg)
|
RP12-243.3SAWDC DC CONVERTER 3.3V 12W |
23 |
|
Datasheet |
POWERLINE RP12-AW (12W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 3.5A | 12 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 61°C | 84% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
|
RP12-2412SAWDC DC CONVERTER 12V 12W |
5 |
|
Datasheet |
POWERLINE RP12-AW (12W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1A | 12 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 65°C | 86% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
|
PRC40-24-S12DC-DC, ISOLATED, 40 W, 9 ~ 36 VD |
12 |
|
Datasheet |
PRC40 (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 3.333A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 92% | - | - | Through Hole | - | - | CE, UKCA | 62368-1 | |
|

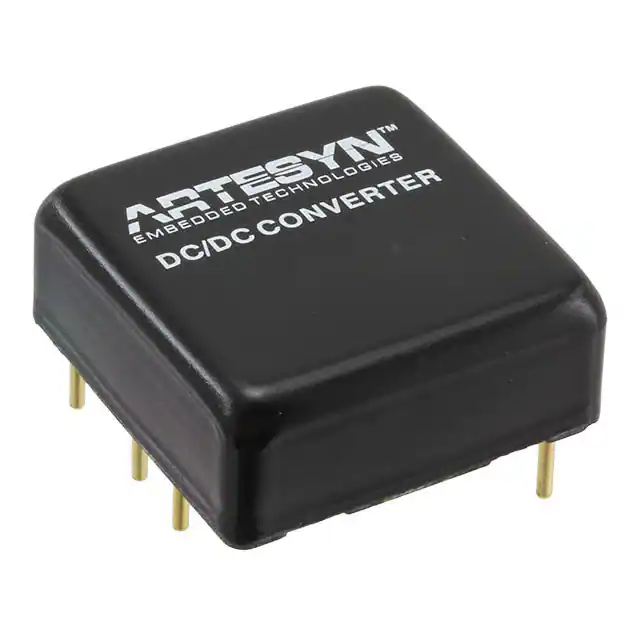

AXA00BB36-LDC DC CONVERTER +/-12V 20W |
8 |
|
Datasheet |
AXA (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 835mA, 835mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP | -40°C ~ 85°C | 89% | - | - | Through Hole | - | - | - | - | |
|
THN 20-4815WIR20 WATT DC/DC CONVERTER, RAILWAY |
23 |
|
Datasheet |
THN 20WIR (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 833mA | 20 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | - | - | CB, cURus | 50155; 62368-1 | |
|
THM 10-0512WIDC DC CONVERTER 12V 10W |
17 |
|
Datasheet |
THM 10WI (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 830mA | 10 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 90°C (With Derating) | 86.5% | - | - | Through Hole | - | - | - | - | |
|

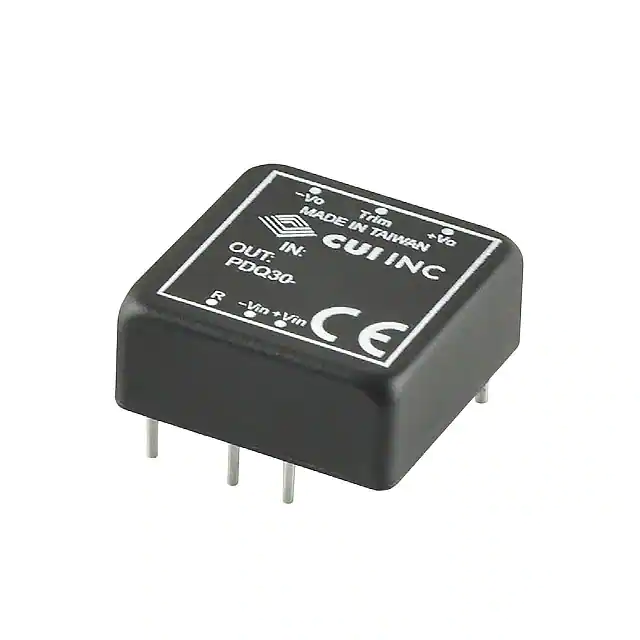

PDQ30-Q48-S3-DDC DC CONVERTER 3.3V 30W |
4 |
|
Datasheet |
PDQ30-D (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 7.5A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C | 88% | - | - | Through Hole | - | Enable, Active High | - | - | |
|

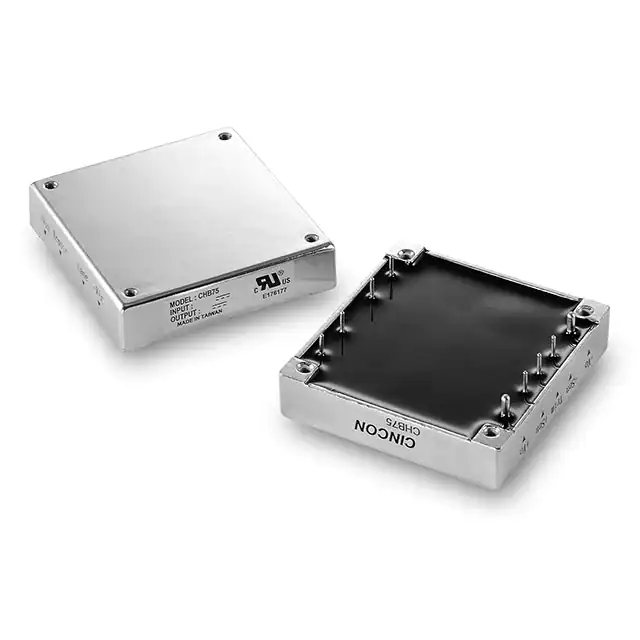

CHB75-24S15DC DC CONVERTER 15V 75W |
10 |
|
Datasheet |
CHB75 (75W) | Half Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 5A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | Half Brick | Enable, Active High | CE, cURus | 60950-1 | |
|
|
THN 20-2410WIR20 WATT DC/DC CONVERTER, RAILWAY |
19 |
|
Datasheet |
THN 20WIR (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 5.5A | 18 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | CB, cURus | 50155; 62368-1 | |
|
TEN 40-2415EDC DC CONVERTER 24V 40W |
20 |
|
Datasheet |
TEN 40E (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 1.666A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 91% | - | - | Through Hole | - | - | CB, cURus | - | |
|
|
TEN 40-1212EDC DC CONVERTER 12V 40W |
6 |
|
Datasheet |
TEN 40E (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 3.333A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 91% | - | - | Through Hole | - | - | CB, cURus | - | |
.jpg)
|
RP08-2405SAW/SMDDC DC CONVERTER 5V 8W |
16 |
|
Datasheet |
POWERLINE RP08-W (8W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.5A | 8 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | Enable, Active High | - | - | |
|
THD 15-4823WINDC DC CONVERTER +/-15V 15W |
10 |
|
Datasheet |
THD 15WIN (15W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | - | - | - | - | |
|
TVN 5-2421WIDC DC CONVERTER +/-5V 5W |
17 |
|
Datasheet |
TVN 5WI (5W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 90°C (With Derating) | 84% | - | - | Through Hole | - | - | - | - | |
|
|
THN 20-7215WIR20 WATT DC/DC CONVERTER, RAILWAY |
20 |
|
Datasheet |
THN 20WIR (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 160V | 24V | - | - | - | 833mA | 20 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | - | - | CB, cURus | 50155; 62368-1 |
