DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

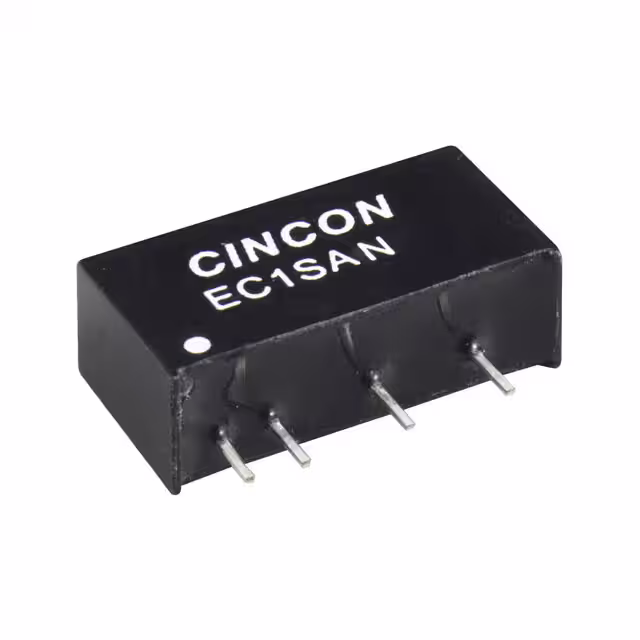

EC1SA12NDC DC CONVERTER 12V 1W |
34 |
|
Datasheet |
EC1SAN (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | CE | - | |
|
EC1SA05NDC DC CONVERTER +/-15V 1W |
32 |
|
Datasheet |
EC1SAN (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | CE | - | |
|
TBA 1-0523EDC DC CONVERTER +/-15V 990MW |
27 |
|
Datasheet |
TBA 1E (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 990 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
|
TBA 1-1223EDC DC CONVERTER +/-15V 990MW |
98 |
|
Datasheet |
TBA 1E (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 33mA, 33mA | 990 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - | |
|
|
TBA 1-0522EDC DC CONVERTER +/-12V 984MW |
97 |
|
Datasheet |
TBA 1E (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 41mA, 41mA | 984 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
TBA 1-2421EDC DC CONVERTER +/-5V 1W |
74 |
|
Datasheet |
TBA 1E (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 79% | - | - | Through Hole | - | - | - | - | |
|
TBA 1-2419DC DC CONVERTER 9V 990MW |
66 |
|
Datasheet |
TBA 1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 110mA | 990 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - | |
|
TBA 1-2422EDC DC CONVERTER +/-12V 984MW |
34 |
|
Datasheet |
TBA 1E (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 41mA, 41mA | 984 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
TBA 1-0513DC DC CONVERTER 15V 975MW |
30 |
|
Datasheet |
TBA 1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 65mA | 975 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
1S7BE_2424S3UISOLATED MODULE DC DC CONVERTERS |
74 |
|
Datasheet |
1S7BE_3U (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
TBA 1-0522HIDC DC CONVERTER +/-12V 984MW |
65 |
|
Datasheet |
TBA 1HI (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 41mA, 41mA | 984 mW | 3 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
|
TBA 1-0523HIDC DC CONVERTER +/-15V 990MW |
48 |
|
Datasheet |
TBA 1HI (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 990 mW | 3 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
|
TBA 1-1222HIDC DC CONVERTER +/-12V 984MW |
46 |
|
Datasheet |
TBA 1HI (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 41mA, 41mA | 984 mW | 3 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - | |
|
TBA 1-0513HIDC DC CONVERTER 15V 990MW |
29 |
|
Datasheet |
TBA 1HI (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 66mA | 990 mW | 3 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|

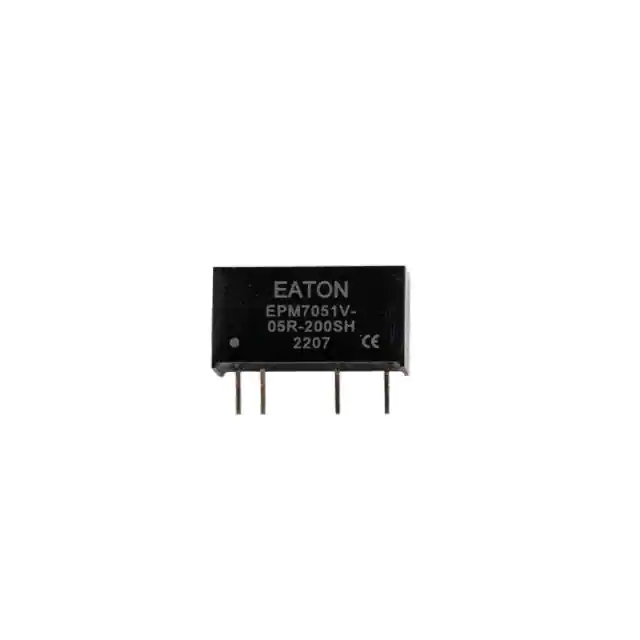

EPM7051V-12R-042DHDC DC CONV 1W 5VIN 12VOUT 42MA |
59 |
|
Datasheet |
EPM7-1V (1W) | 7-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 4 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | - | - | - | 62368-1 | |
|
2S4E_0505S1UISOLATED MODULE DC DC CONVERTERS |
92 |
|
Datasheet |
2S4E_1U (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | CE | 60950-1 | |
|
|
2S4E_1205S1UISOLATED MODULE DC DC CONVERTERS |
71 |
|
Datasheet |
2S4E_1U (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | CE | 60950-1 | |
|
|
2S4E_0524S1UISOLATED MODULE DC DC CONVERTERS |
41 |
|
Datasheet |
2S4E_1U (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 83mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | CE | 60950-1 | |
|
|
2S4E_2405S1UISOLATED MODULE DC DC CONVERTERS |
34 |
|
Datasheet |
2S4E_1U (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | CE | 60950-1 | |
|
|
2S4E_1505S1UISOLATED MODULE DC DC CONVERTERS |
30 |
|
Datasheet |
2S4E_1U (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | CE | 60950-1 |
