DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MEE1S0315SCDC DC CONVERTER 15V 1W |
28 |
|
Datasheet |
MEE1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84.5% | - | - | Through Hole | - | - | - | - | |
|
LMS78_09-2.0RNON-ISOLATED POL MODULE DC DC CO |
100 |
|
Datasheet |
LMS78_2.0R | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 13V | 36V | 9V | - | - | - | 2A | 18 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | - | - | - | 62368-1 | |
|
TMA 1512SDC DC CONVERTER 12V 1W |
86 |
|
Datasheet |
TMA (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | - | - | - | - | |
|
TMA 1515SDC DC CONVERTER 15V 1W |
82 |
|
Datasheet |
TMA (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | - | - | - | - | |
|
|
TMA 1215SDC DC CONVERTER 15V 1W |
75 |
|
Datasheet |
TMA (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - | |
|
|
TMA 1505SDC DC CONVERTER 5V 1W |
67 |
|
Datasheet |
TMA (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 72% | - | - | Through Hole | - | - | - | - | |
|

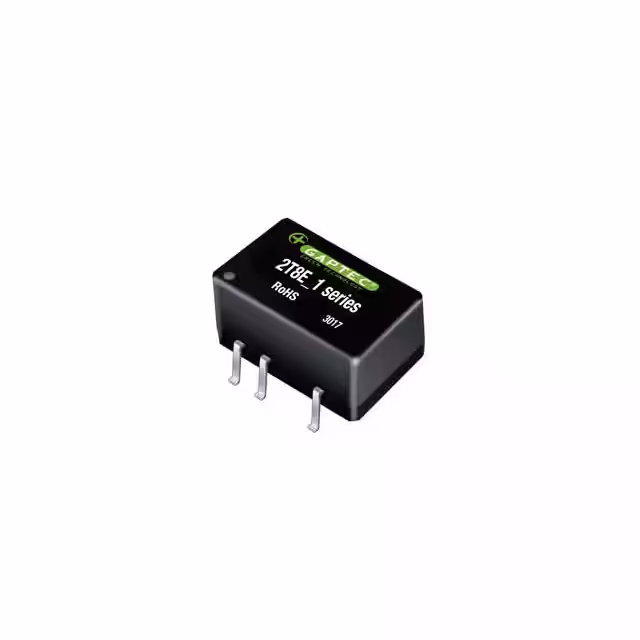

2T8E_0512S1UISOLATED MODULE DC DC CONVERTERS |
53 |
|
Datasheet |
2T8E_1U (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 74% | - | - | Surface Mount | - | - | - | - | |
|

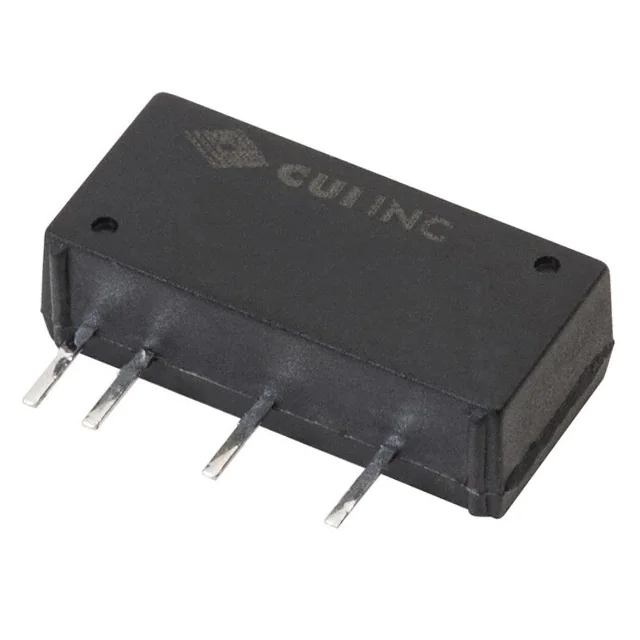

PCN1-S24-S12-SDC DC CONVERTER 12V 1W |
0 |
|
Datasheet |
PCN1-S (1W) | 6-SIP Module, 4 Leads | Bulk | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 83% | - | - | Through Hole | - | - | EN | 55032 Class A | |
|
IE1205DDC DC CONVERTER 5V 1W |
95 |
|
Datasheet |
IE (1W) | 4-DIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | - | - | |
|
IE1224SDC DC CONVERTER 24V 1W |
43 |
|
Datasheet |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
|
IE1203SDC DC CONVERTER 3.3V 1W |
31 |
|
Datasheet |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 300mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 72% | - | - | Through Hole | - | - | - | - | |
|
|
IE0312SDC DC CONVERTER 12V 1W |
31 |
|
Datasheet |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 74% | - | - | Through Hole | - | - | - | - | |
|
SMA01M-15DC DC CONVERTER 15V 1W |
74 |
|
Datasheet |
SMA01 (1W) | 7-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 90°C (With Derating) | 79% | - | - | Through Hole | - | - | - | - | |
|
IQ2405SADC DC CONVERTER 5V 1W |
40 |
|
Datasheet |
IQ (1W) | 7-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | - | - | |
|
IK1203SADC DC CONVERTER 3.3V 250MW |
54 |
|
Datasheet |
IK (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 75.7mA | 250 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 65% | - | - | Through Hole | - | - | - | - | |
|
|
IK2405SADC DC CONVERTER 5V 250MW |
40 |
|
Datasheet |
IK (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 50mA | 250 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 62% | - | - | Through Hole | - | - | - | - | |
|
|
IK2412SADC DC CONVERTER 12V 250MW |
39 |
|
Datasheet |
IK (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 20.8mA | 250 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 56% | - | - | Through Hole | - | - | - | - | |
|
|
IK1215SADC DC CONVERTER 15V 250MW |
32 |
|
Datasheet |
IK (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 16.67mA | 250 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 67% | - | - | Through Hole | - | - | - | - | |
|

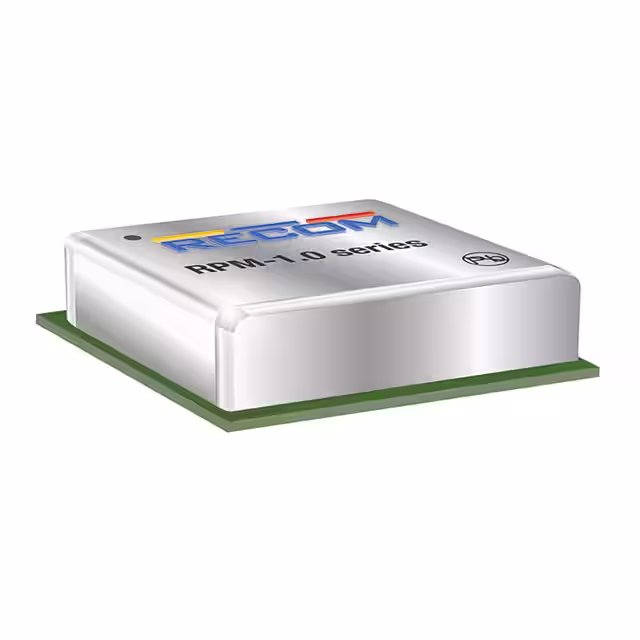

RPM5.0-1.0-CTDC DC CONVERTER 5V |
30 |
|
Datasheet |
INNOLINE RPM-1.0 | 25-BLGA Module | Tube | Active | Non-Isolated PoL Module | 1 | 3V | 17V | 5V | - | - | - | 1A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 99% | - | - | Surface Mount | - | - | - | - | |
|
TMA 1505DDC DC CONVERTER +/-5V 1W |
30 |
|
Datasheet |
TMA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 72% | - | - | Through Hole | - | - | - | - |
