DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TME 0503SDC DC CONVERTER 3.3V 900MW |
80 |
|
Datasheet |
TME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 260mA | 900 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 72% | - | - | Through Hole | - | - | - | - | |
|
TME 0305SDC DC CONVERTER 5V 1W |
73 |
|
Datasheet |
TME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Through Hole | - | - | - | - | |
|
R-781.8-1.0DC DC CONVERTER 1.8V 2W |
100 |
|
Datasheet |
INNOLINE R-78-1.0 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 4.75V | 18V | 1.8V | - | - | - | 1A | 2 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - | |
|
RK-0505S/PDC DC CONVERTER 5V 1W |
29 |
|
Datasheet |
ECONOLINE RK (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
IH2409SDC DC CONVERTER +/-9V 2W |
36 |
|
Datasheet |
IH (2W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
IH1205SDC DC CONVERTER +/-5V 2W |
28 |
|
Datasheet |
IH (2W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | - | - | |
|

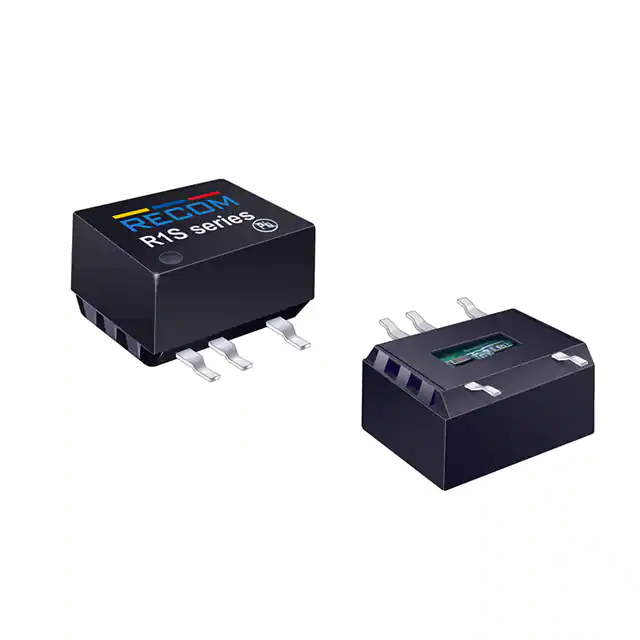

R1S8-1209/PDC DC CONVERTER 9V 1W |
40 |
|
Datasheet |
ECONOLINE R1S (1W) | 8-SMD Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | - | - | - | - | |
|

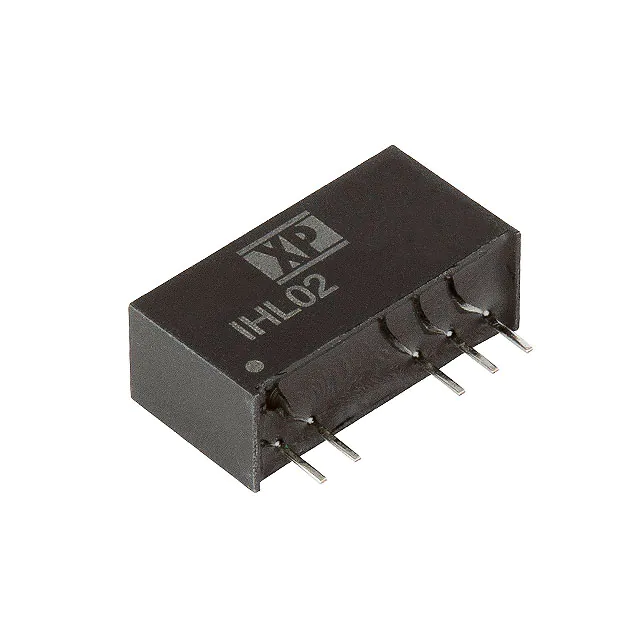

IHL0224S3V3DC DC CONVERTER 3.3V 2W |
40 |
|
Datasheet |
IHL02 (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 3.3V | - | - | - | 500mA | 2 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C | 73% | - | - | Through Hole | - | - | - | - | |
|
RI-1505SDC DC CONVERTER 5V 2W |
47 |
|
Datasheet |
ECONOLINE RI (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | - | - | |
|
|
RI-2415SDC DC CONVERTER 15V 2W |
46 |
|
Datasheet |
ECONOLINE RI (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 133mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - | |
|
|
RK-1515SDC DC CONVERTER 15V 1W |
75 |
|
Datasheet |
ECONOLINE RK (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 66mA | 1 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - | |
|
RKZ-122005D/HPDC DC CONVERTER 20V -5V 2W |
50 |
|
Datasheet |
ECONOLINE RKZ-xx2005D (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 20V | -5V | - | - | 50mA, 200mA | 2 W | 4 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - | |
|
|
RK-2415SDC DC CONVERTER 15V 1W |
48 |
|
Datasheet |
ECONOLINE RK (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 66mA | 1 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - | |
|
|
RK-1505SDC DC CONVERTER 5V 1W |
46 |
|
Datasheet |
ECONOLINE RK (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
|
RK-2412SDC DC CONVERTER 12V 1W |
27 |
|
Datasheet |
ECONOLINE RK (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - | |
|
RN-0507SDC DC CONVERTER 7V 1.25W |
50 |
|
Datasheet |
ECONOLINE RN (1.25W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 7V | - | - | - | 180mA | 1.25 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | - | - | |
|

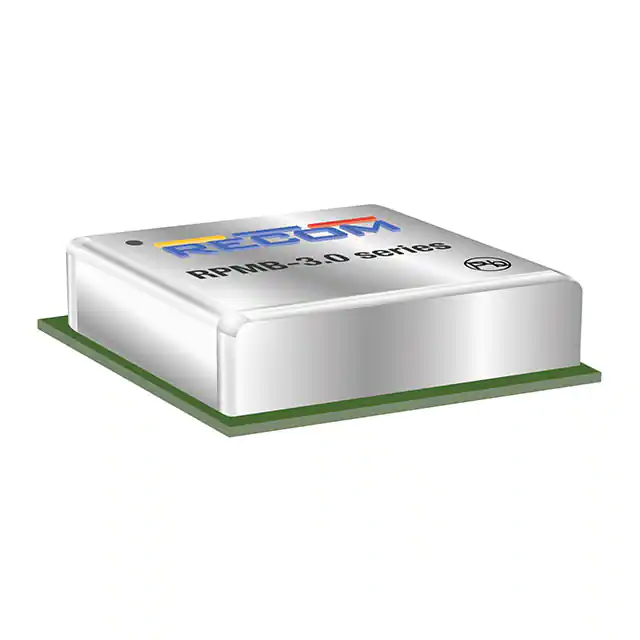

RPMB15-3.0-CTDC DC CONVERTER 15V |
29 |
|
Datasheet |
INNOLINE RPMB-3.0 | 25-BLGA Module | Tube | Active | Non-Isolated PoL Module | 1 | 16V | 36V | 15V | - | - | - | 3A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 94% | - | - | Surface Mount | - | Enable, Active Floating | - | - | |
|

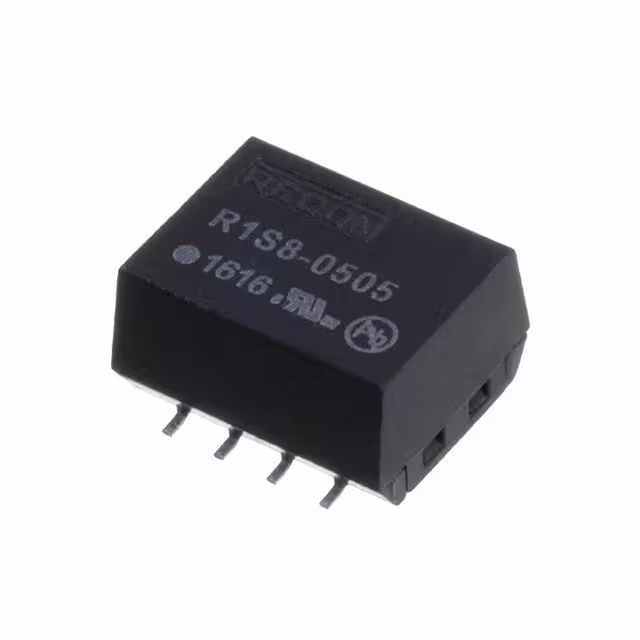

R1S8-0505DC DC CONVERTER 5V 1W |
64 |
|
Datasheet |
ECONOLINE R1S (1W) | 8-SMD Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | - | - | - | - | |
|
R1S-0524/HDC DC CONVERTER 24V 1W |
59 |
|
Datasheet |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 42mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 84% | - | - | Surface Mount | - | - | - | - | |
|

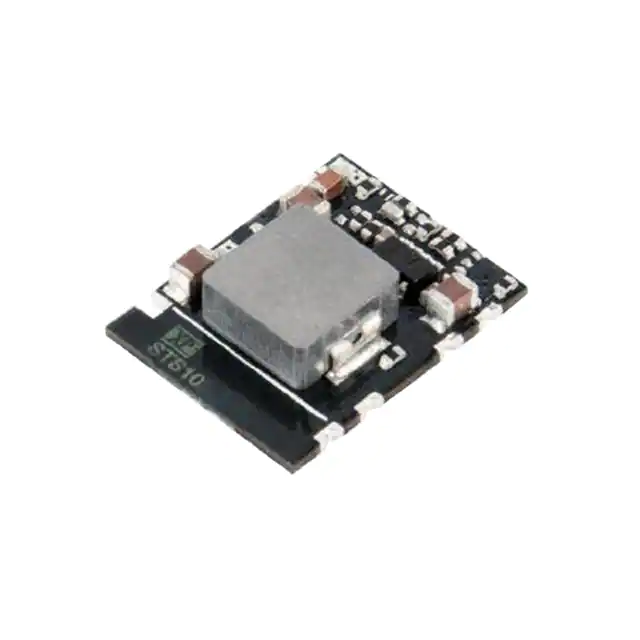

STS1024S3V3DC DC CONVERTER 3.3V |
58 |
|
Datasheet |
STS10 | 10-SMD Module, 6 Leads | Tube | Active | Non-Isolated PoL Module | 1 | 4.75V | 36V | 3.3V | - | - | - | 1A | - | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C (With Derating) | 94% | - | - | Surface Mount | - | - | - | - |
