DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IW1215SADC DC CONVERTER 15V 1W |
45 |
|
Datasheet |
IW (1W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 77% | - | - | Through Hole | - | - | - | 62368-1 | |
|
TMU 3-24113 WATT UNREGULATED DC/DC CONVERT |
44 |
|
Datasheet |
TMU 3 (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 75°C | 82% | - | - | Through Hole | - | - | - | - | |
|
|
TMU 3-05133 WATT UNREGULATED DC/DC CONVERT |
41 |
|
Datasheet |
TMU 3 (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 75°C | 84% | - | - | Through Hole | - | - | - | - | |
|
|
TMU 3-12113 WATT UNREGULATED DC/DC CONVERT |
35 |
|
Datasheet |
TMU 3 (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 75°C | 81% | - | - | Through Hole | - | - | - | - | |
|
IL1224SDC DC CONVERTER 24V 2W |
81 |
|
Datasheet |
IL (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 84mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - | |
|

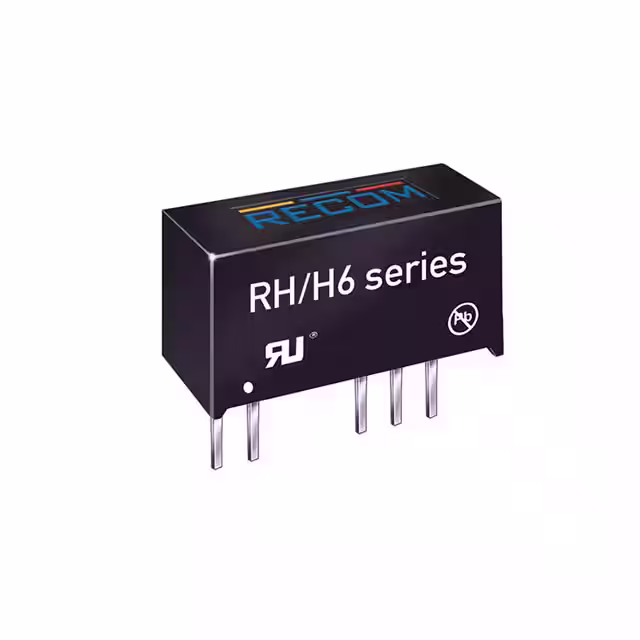

RH-1215D/H6DC DC CONVERTER +/-15V 1W |
55 |
|
Datasheet |
ECONOLINE RH/H6 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 6.4 kV | ITE (Commercial) | SCP | -40°C ~ 90°C | 80% | - | - | Through Hole | - | - | - | - | |
|

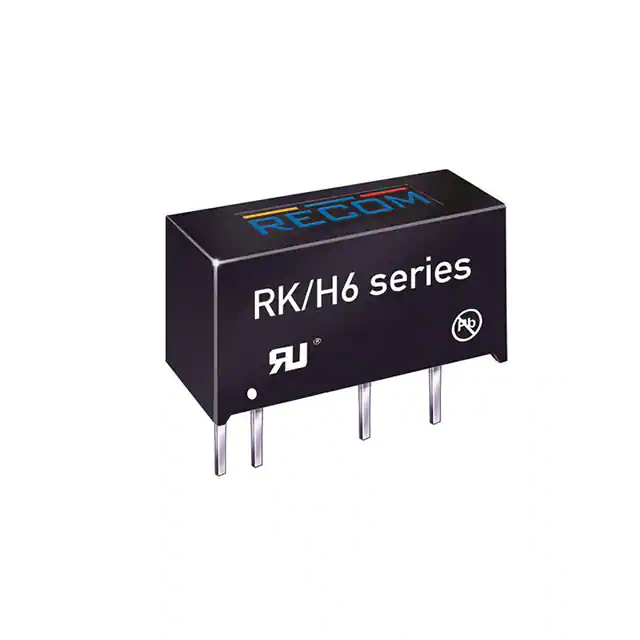

RK-1515S/H6DC DC CONVERTER 15V 1W |
51 |
|
Datasheet |
ECONOLINE RK/H6 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 66mA | 1 W | 6.4 kV | ITE (Commercial) | SCP | -40°C ~ 90°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
IL1215SDC DC CONVERTER 15V 2W |
35 |
|
Datasheet |
IL (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 132mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|
|
RK-1512S/H6DC DC CONVERTER 12V 1W |
31 |
|
Datasheet |
ECONOLINE RK/H6 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 12V | - | - | - | 84mA | 1 W | 6.4 kV | ITE (Commercial) | SCP | -40°C ~ 90°C | 79% | - | - | Through Hole | - | - | - | - | |
|
R1S12-1212/HDC DC CONVERTER 12V 1W |
66 |
|
Datasheet |
ECONOLINE R1S (1W) | 12-SMD Module, 10 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 80% | - | - | Surface Mount | - | - | - | - | |
|

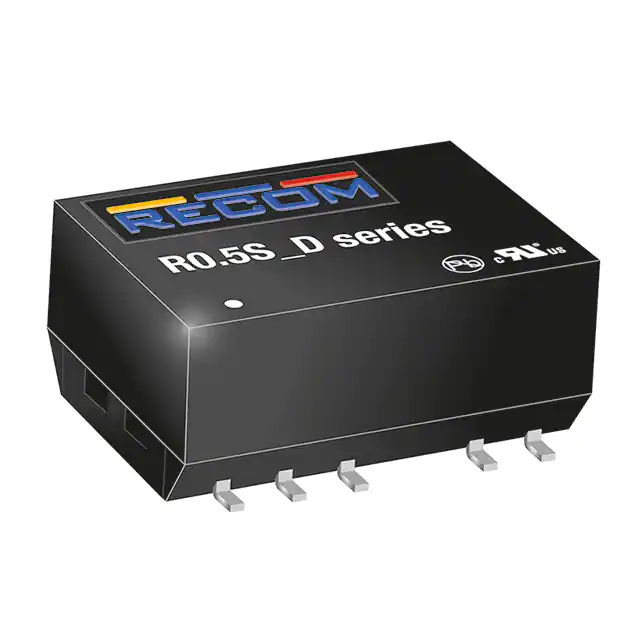

R0.5S-3.305DC DC CONVERTER 5V 500MW |
51 |
|
Datasheet |
ECONOLINE R0.5S (0.5W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 100mA | 500 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 80% | - | - | Surface Mount | - | - | - | - | |
|
R1S-2405/HDC DC CONVERTER 5V 1W |
40 |
|
Datasheet |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | - | - | - | - | |
|
EC2SA-12D12NDC DC CONVERTER +/-12V 2W |
60 |
|
Datasheet |
EC2SA (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | CE | 60950-1 | |
|
R1S-2405/PDC DC CONVERTER 5V 1W |
93 |
|
Datasheet |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | - | - | - | - | |
|
RK-0505S/HPDC DC CONVERTER 5V 1W |
42 |
|
Datasheet |
ECONOLINE RK (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
PG02S2403ADC DC CONVERTER 3.3V 2W |
44 |
|
Datasheet |
PG02S (2W) | 8-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 500mA | 2 W | 1 kV | Medical | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 72% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
PG02S4803ADC DC CONVERTER 3.3V 2W |
44 |
|
Datasheet |
PG02S (2W) | 8-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 500mA | 2 W | 1 kV | Medical | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 71% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|

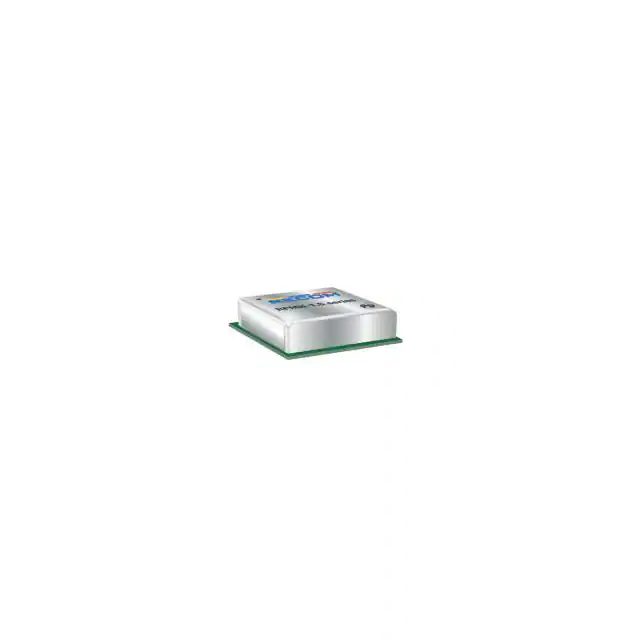

RPMH24-1.5-CTDC DC CONVERTER 24V |
38 |
|
Datasheet |
INNOLINE RPMH-1.5 | 25-BLGA Module | Tube | Active | Non-Isolated PoL Module | 1 | 26V | 60V | 24V | - | - | - | 1.5A | - | - | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 100°C (With Derating) | 92% | - | - | Surface Mount | - | - | - | - | |
|
|
RPMH5.0-1.5-CTDC DC CONVERTER 5V |
30 |
|
Datasheet |
INNOLINE RPMH-1.5 | 25-BLGA Module | Tube | Active | Non-Isolated PoL Module | 1 | 7V | 60V | 5V | - | - | - | 1.5A | - | - | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 100°C (With Derating) | 80% | - | - | Surface Mount | - | - | - | - | |
|
|
RK-1215S/H6DC DC CONVERTER 12V 1W |
28 |
|
Datasheet |
ECONOLINE RK/H6 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 6.4 kV | ITE (Commercial) | SCP | -40°C ~ 90°C | 80% | - | - | Through Hole | - | - | - | - |
