DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMV 1505SHIDC DC CONVERTER 5V 1W |
12 |
|
Datasheet |
TMV-HI (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 15V | 16.5V | 5V | - | - | - | 200mA | 1 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 70% | - | - | Through Hole | - | - | - | - | |
|
TMV 1509SHIDC DC CONVERTER 9V 1W |
10 |
|
Datasheet |
TMV-HI (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 9V | - | - | - | 111mA | 1 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 75% | - | - | Through Hole | - | - | - | - | |
|
BRNS12DC DC CONVERTER 0.6-5.5V |
39 |
|
Datasheet |
BRNS | 17-SMD Module | Strip | Active | Non-Isolated PoL Module | 1 | 3V | 14.4V | 0.6 ~ 5.5V | - | - | - | 12A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP | -40°C ~ 85°C | 86% | - | - | Surface Mount | - | - | - | - | |
|
RSH3-2412S/H23W DC/DC-CONVERTER 'ECONOLINE' S |
35 |
|
Datasheet |
RSH3 (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | 3 W | 2 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 81% | - | - | Surface Mount | - | - | cURus | 62368-1 | |
|
|
RSH3-2405S/H23W DC/DC-CONVERTER 'ECONOLINE' S |
17 |
|
Datasheet |
RSH3 (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 2 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 80% | - | - | Surface Mount | - | - | cURus | 62368-1 | |
|
MTC2S1203MC-R7DC DC CONVERTER 3.3V 2W |
99 |
|
Datasheet |
MTC2 (2W) | 6-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 606mA | 2 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 105°C | 78.5% | - | - | Surface Mount | - | - | - | - | |
|

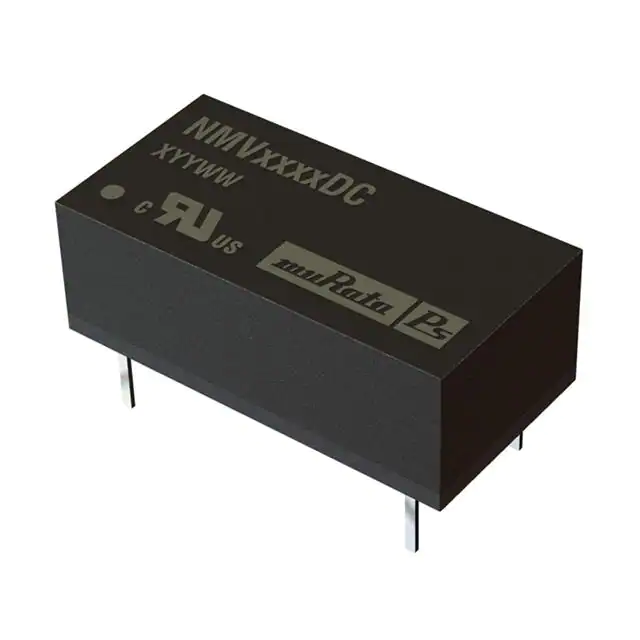

NMV1215DCDC DC CONVERTER +/-15V 1W |
50 |
|
Datasheet |
NMV (1W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 76% | - | - | Through Hole | - | - | - | - | |
|
|
MTC2S2405MC-R7DC DC CONVERTER 5V 2W |
46 |
|
Datasheet |
MTC2 (2W) | 6-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 105°C | 79.5% | - | - | Surface Mount | - | - | - | - | |
|
|
MTC2S1212MC-R7DC DC CONVERTER 12V 2W |
40 |
|
Datasheet |
MTC2 (2W) | 6-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 167mA | 2 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 105°C | 83.5% | - | - | Surface Mount | - | - | - | - | |
|
NMV0509SACDC DC CONVERTER 9V 1W |
27 |
|
Datasheet |
NMV (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | - | - | |
|
|
MTC2S2412MC-R7DC DC CONVERTER 12V 2W |
27 |
|
Datasheet |
MTC2 (2W) | 6-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 167mA | 2 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 105°C | 81.5% | - | - | Surface Mount | - | - | - | - | |
|
PDQ2-D24-S12-SDC DC CONVERTER 12V 2W |
8 |
|
Datasheet |
PDQ2-S (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 167mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 100°C | 82% | - | - | Through Hole | - | Enable, Active Low | EN | 55032 Class A | |
|
R-78AA12-0.5SMDDC DC CONVERTER 12V 6W |
56 |
|
Datasheet |
INNOLINE R-78AA-0.5 | 10-SMD Module | Tube | Active | Linear Regulator Replacement | 1 | 15V | 32V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 85°C | 97% | - | - | Surface Mount | - | Enable, Active High | - | - | |
|
RK-1505S/H6DC DC CONVERTER 5V 1W |
50 |
|
Datasheet |
ECONOLINE RK/H6 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 6.4 kV | ITE (Commercial) | SCP | -40°C ~ 90°C | 77% | - | - | Through Hole | - | - | - | - | |
|

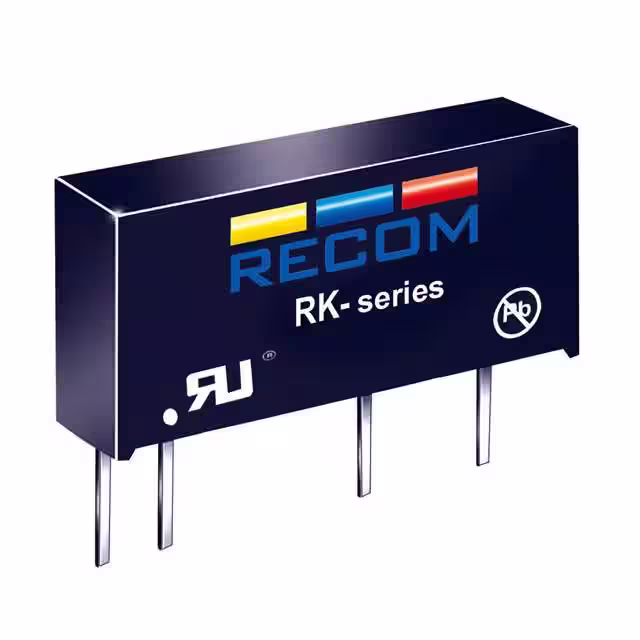

RK-1505S/HPDC DC CONVERTER 5V 1W |
94 |
|
Datasheet |
ECONOLINE RK (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - | |
|
TSR 0.5-2490SMDC DC CONVERTER 9V 4.5W |
13 |
|
Datasheet |
TSR 0.5SM | 10-SMD Module | Tube | Active | Linear Regulator Replacement | 1 | 11V | 32V | 9V | - | - | - | 500mA | 4.5 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 90°C (With Derating) | 96% | - | - | Surface Mount | - | - | - | - | |
|
TSM 0509SDC DC CONVERTER 9V 990MW |
46 |
|
Datasheet |
TSM (1W) | 14-SMD Module, 8 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 110mA | 990 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | - | - | Surface Mount | - | - | - | - | |
|
|
TSM 1215SDC DC CONVERTER 15V 975MW |
15 |
|
Datasheet |
TSM (1W) | 14-SMD Module, 8 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 65mA | 975 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 82% | - | - | Surface Mount | - | - | - | - | |
|
TMR 1-0512DC DC CONVERTER 12V 1W |
69 |
|
Datasheet |
TMR 1 (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 83mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | Module | - | CB, CSA | - | |
|
RKZ3-1205SDC DC CONVERTER 5V 3W |
20 |
|
Datasheet |
RKZ3 (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 90°C | 84% | - | - | Through Hole | - | - | - | - |
