DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IU1203SADC DC CONVERTER 3.3V 2W |
20 |
|
Datasheet |
IU (2W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 500mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 67% | - | - | Through Hole | - | - | - | 62368-1 | |
|
|
IU1215SADC DC CONVERTER 15V 2W |
20 |
|
Datasheet |
IU (2W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 133mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | 62368-1 | |
|
|
IU1212SADC DC CONVERTER 12V 2W |
19 |
|
Datasheet |
IU (2W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | 62368-1 | |
|
LCW78_05-0.5NON-ISOLATED POL MODULE DC DC CO |
29 |
|
Datasheet |
LCW78_0.5 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 75V | 5V | - | - | - | 500mA | 2.5 W | - | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|

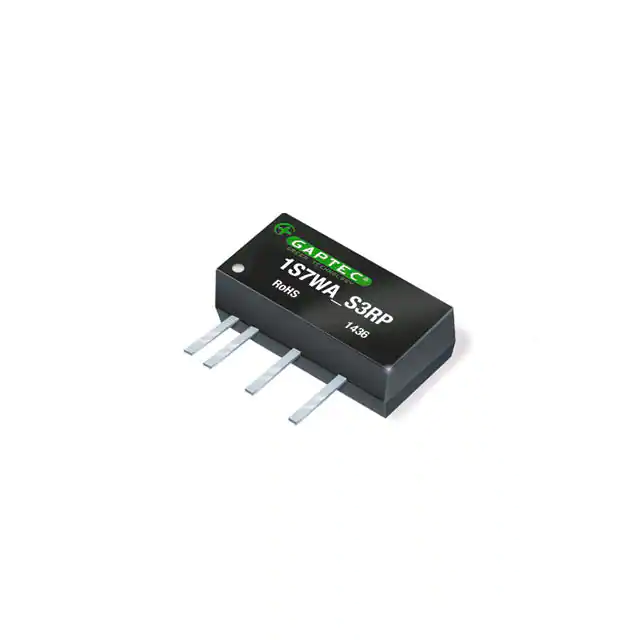

1S7WA_2412S3RPISOLATED MODULE DC DC CONVERTERS |
22 |
|
Datasheet |
1S7WA (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
EC4SAW-48D15NDC DC CONVERTER +/-15V 6W |
23 |
|
Datasheet |
EC4SAW (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | Enable, Active Low | CE | - | |
|
RI3-1215SDC DC CONVERTER 15V 3W |
44 |
|
Datasheet |
ECONOLINE RI3 (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 200mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole | - | - | - | - | |
|
|
RI3-1505SDC DC CONVERTER 5V 3W |
42 |
|
Datasheet |
ECONOLINE RI3 (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - | |
|
|
RI3-1515SDC DC CONVERTER 15V 3W |
27 |
|
Datasheet |
ECONOLINE RI3 (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 200mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | - | - | - | - | |
|
R2S-1215DC DC CONVERTER 15V 2W |
39 |
|
Datasheet |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 133mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | - | - | - | - | |
|
TSR 0.6-4890WIDC DC CONVERTER 9V 3SIP |
22 |
|
Datasheet |
TSR 0.6WI | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 14V | 72V | 9V | - | - | - | 600mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | - | - | - | - | |
|
R1S-2405/HPDC DC CONVERTER 5V 1W |
65 |
|
Datasheet |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | - | - | - | - | |
|

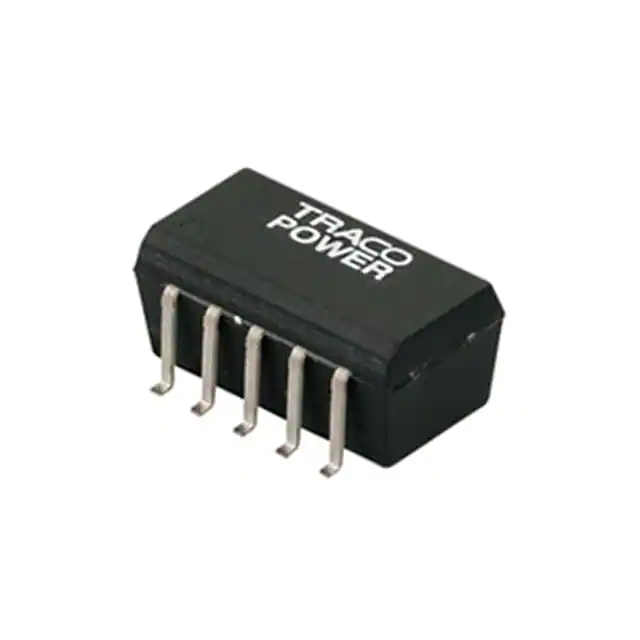

TSM 2412DDC DC CONVERTER +/-12V 960MW |
58 |
|
Datasheet |
TSM (1W) | 18-SMD Module, 10 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 40mA, 40mA | 960 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | - | - | - | - | |
|
RKZ-2415D/PDC DC CONVERTER +/-15V 2W |
53 |
|
Datasheet |
ECONOLINE RKZ (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | - | - | - | - | |
|
|
TSR 0.6-4833WIDC DC CONVERTER 3.3V 3SIP |
55 |
|
Datasheet |
TSR 0.6WI | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 72V | 3.3V | - | - | - | 600mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - | |
|
MGW1R50515DC DC CONVERTER +/-15V |
48 |
|
Datasheet |
MGW (1.5W) | 5-SIP Module | Box | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 50mA, 50mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | - | - | |
|
|
MGW1R52412DC DC CONVERTER +/-12V 24V 1.6W |
37 |
|
Datasheet |
MGW (1.5W) | 5-SIP Module | Box | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 65mA, 65mA | 1.6 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
MGS1R5243R3DC DC CONVERTER 3.3V |
31 |
|
Datasheet |
MGS (1.5W) | 4-SIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 400mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - | |
|
|
MGW1R51215DC DC CONVERTER +/-15V |
27 |
|
Datasheet |
MGW (1.5W) | 5-SIP Module | Box | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 50mA, 50mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | - | - | |
|
|
TSR 0.6-4865WIDC DC CONVERTER 6.5V 3SIP |
27 |
|
Datasheet |
TSR 0.6WI | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 72V | 6.5V | - | - | - | 600mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | - | - | - | - |
