DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGS1R51215DC DC CONVERTER 15V |
24 |
|
Datasheet |
MGS (1.5W) | 4-SIP Module | Box | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 100mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | - | - | - | |
|
|
MGS1R52415DC DC CONVERTER 15V |
24 |
|
Datasheet |
MGS (1.5W) | 4-SIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 100mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
|
MGS1R50515DC DC CONVERTER 15V |
23 |
|
Datasheet |
MGS (1.5W) | 4-SIP Module | Box | Active | Isolated Module | 1 | 4.5V | 9V | 15V | - | - | - | 100mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | - | - | - | |
|

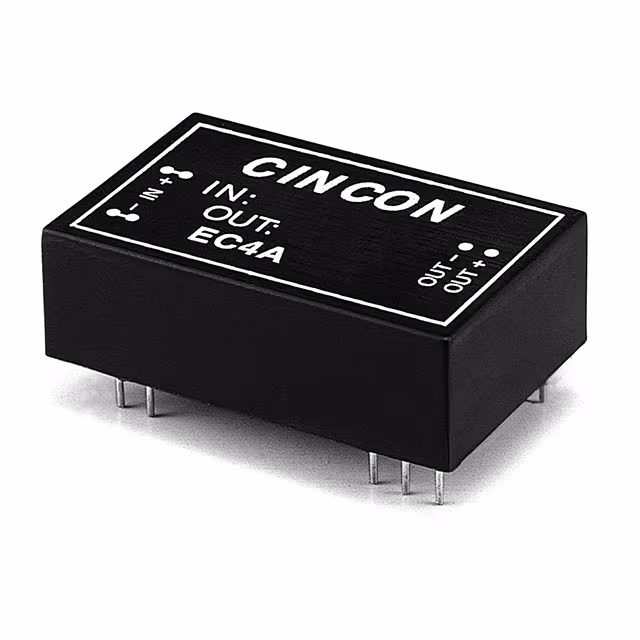

EC4A17MDC DC CONVERTER 3.3V 3.3W |
23 |
|
Datasheet |
EC4A (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 1A | 3.3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 74% | - | - | Through Hole | - | - | - | - | |
|

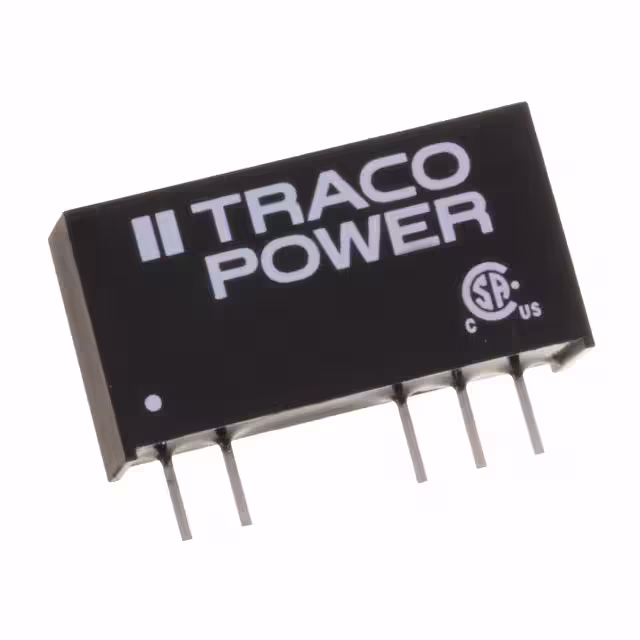

TMV 24159HIDC DC CONVERTER 15V -9V 990MW |
22 |
|
Datasheet |
TMV-HI (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -9V | - | - | 33mA, 55mA | 990 mW | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 75% | - | - | Through Hole | - | - | - | - | |
|
TMR 1-0523DC DC CONVERTER +/-15V 990MW |
19 |
|
Datasheet |
TMR 1 (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 33mA, 33mA | 990 mW | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | Module | - | CB, CSA | - | |
|

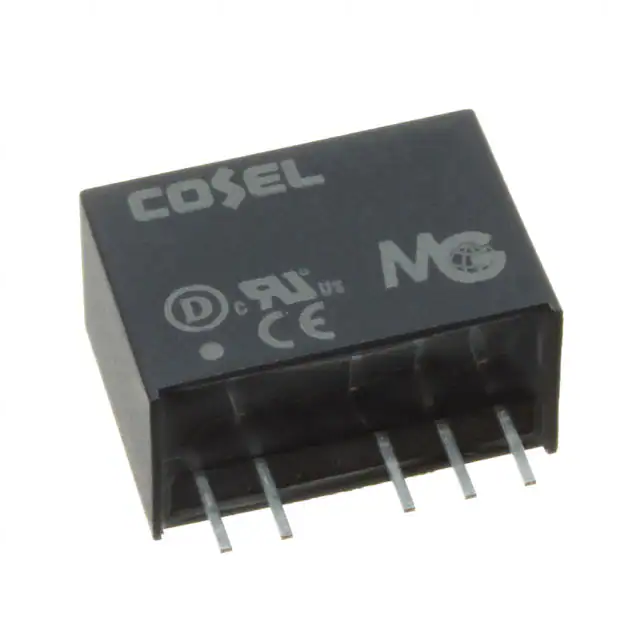

MGW1R54812DC DC CONVERTER +/-12V |
16 |
|
Datasheet |
MGW (1.5W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 36V | 76V | 12V | -12V | - | - | 65mA, 65mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | - | - | |
|
|
MGS1R51205DC DC CONVERTER 5V |
15 |
|
Datasheet |
MGS (1.5W) | 4-SIP Module | Box | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 300mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | - | - | - | - | |
|
TMR 1-4813DC DC CONVERTER 15V 1W |
24 |
|
Datasheet |
TMR 1 (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | Module | - | CB, CSA | - | |
|
R-78B6.5-1.0LDC DC CONVERTER 6.5V 6.5W |
62 |
|
Datasheet |
INNOLINE R-78B-1.0 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 9V | 32V | 6.5V | - | - | - | 1A | 6.5 W | - | ITE (Commercial), Medical | OTP, SCP | -40°C ~ 85°C | 94% | - | - | Through Hole, Right Angle | - | - | - | - | |
|
R0.25S-0505/HDC DC CONVERTER 5V 250MW |
43 |
|
Datasheet |
ECONOLINE R0.25S (0.25W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 50mA | 250 mW | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 60 ~ 70% | - | - | Surface Mount | - | - | - | - | |
|

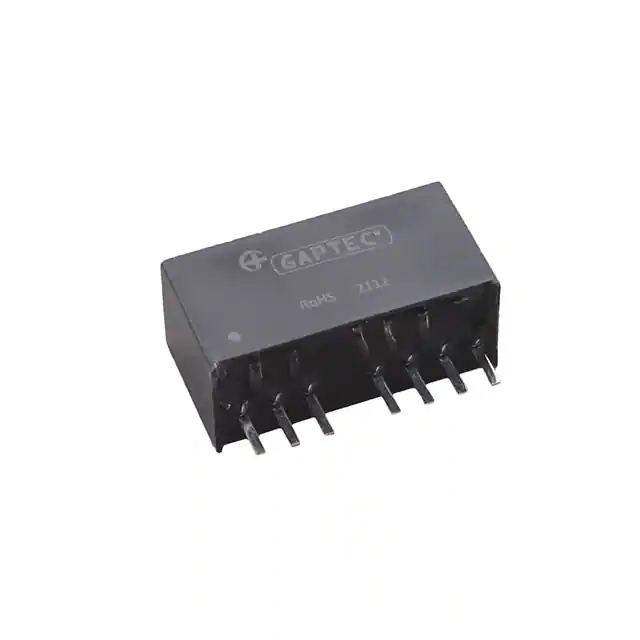

1S8W_1203S4RPISOLATED MODULE DC DC CONVERTERS |
27 |
|
Datasheet |
1S8W_4RP (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 200mA | 660 mW | 2 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C | 78% | - | - | Through Hole | - | - | - | - | |
|
EC2SA-24S05NDC DC CONVERTER 5V 2W |
15 |
|
Datasheet |
EC2SA (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | - | - | CE | 60950-1 | |
|
TRN 1-1213DC DC CONVERTER 15V 1.1W |
10 |
|
Datasheet |
TRN 1 (1W) | 5-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 70mA | 1.1 W | 1.6 kV | ITE (Commercial) | SCP | -40°C ~ 90°C | 83% | - | - | Through Hole | - | - | - | - | |
|
R2S-1205DC DC CONVERTER 5V 2W |
19 |
|
Datasheet |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | - | - | - | - | |
|
|
R2S-1212DC DC CONVERTER 12V 2W |
29 |
|
Datasheet |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | - | - | - | - | |
|

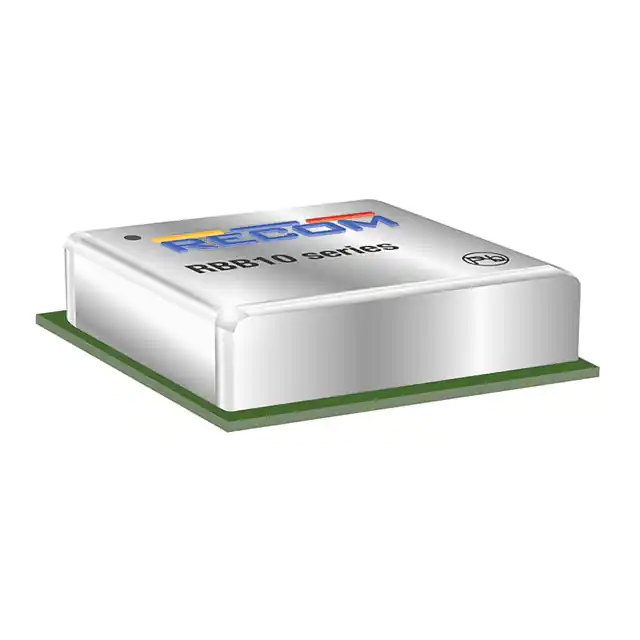

RBB10-2.0-CTDC DC CONVERTER 5V 10W |
43 |
|
Datasheet |
INNOLINE RBB10-2.0 | 25-BLGA Module | Tube | Active | Non-Isolated PoL Module | 1 | 2.3V | 5.5V | 5V | - | - | - | 2A | 10 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 96% | - | - | Surface Mount | - | - | - | - | |
|
RKZ-0505S/HPDC DC CONVERTER 5V 2W |
55 |
|
Datasheet |
ECONOLINE RKZ (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|
RY-0505S/PDC DC CONVERTER 5V 1W |
25 |
|
Datasheet |
ECONOLINE RY (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.75V | 5.25V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 70°C | 60% | - | - | Through Hole | - | - | - | - | |
|
MEE3S1209SCDC DC CONVERTER 9V 3W |
60 |
|
Datasheet |
MEE3 (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 333mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | - | - | - | - |
