DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

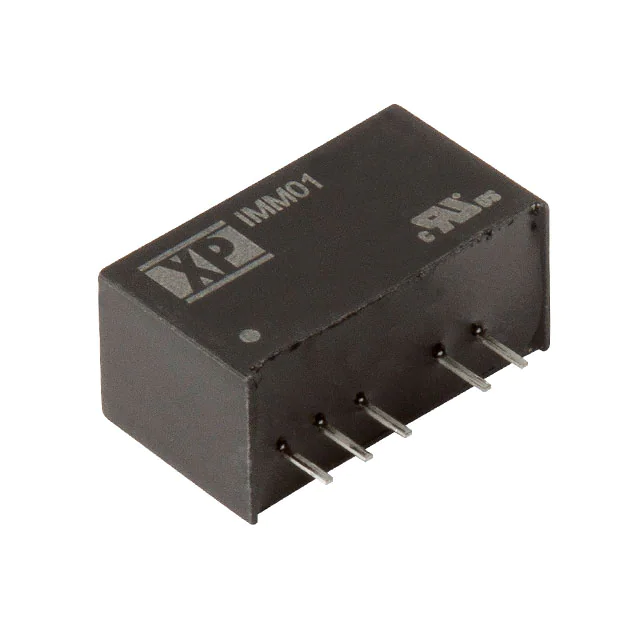

IMM0105S05DC DC CONVERTER 5V 1W |
20 |
|
Datasheet |
IMM01 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | Medical | Remote On/Off, SCP | -20°C ~ 100°C | 81% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|

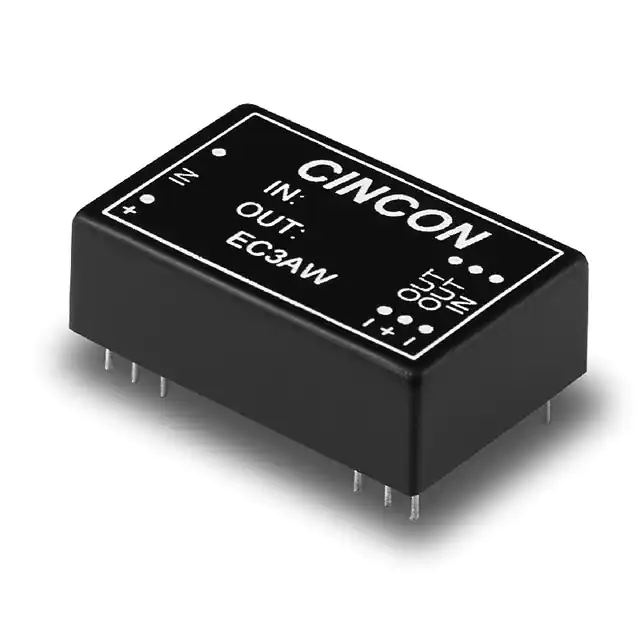

EC3AW02DC DC CONVERTER 12V 3W |
31 |
|
Datasheet |
EC3AW (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 250mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 76% | - | - | Through Hole | - | - | CE | - | |
|
TES 2-0512HDC DC CONVERTER 12V 2W |
26 |
|
Datasheet |
TES 2H (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 165mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Surface Mount | - | - | - | - | |
|
|
EC3AW11DC DC CONVERTER 5V 3W |
11 |
|
Datasheet |
EC3AW (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 72V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 72% | - | - | Through Hole | - | - | CE | - | |
|
TMV 2-1209DHIDC DC CONVERTER +/-9V 2W |
30 |
|
Datasheet |
TMV 2HI (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 9V | -9V | - | - | 112mA, 112mA | 2 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | - | - | - | - | |
|
TEC 2-2423WIDC DC CONVERTER +/-15V 2W |
90 |
|
Datasheet |
TEC 2WI (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 93°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - | |
|
TEC 2-2421WIDC DC CONVERTER +/-5V 2W |
44 |
|
Datasheet |
TEC 2WI (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 93°C (With Derating) | 79% | - | - | Through Hole | - | - | - | - | |
|
|
TEC 2-2422WIDC DC CONVERTER +/-12V 2W |
30 |
|
Datasheet |
TEC 2WI (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 93°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
TEC 2-1222WIDC DC CONVERTER +/-12V 2W |
22 |
|
Datasheet |
TEC 2WI (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 18V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 93°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
TES 2-0511HDC DC CONVERTER 5V 2W |
26 |
|
Datasheet |
TES 2H (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 73% | - | - | Surface Mount | - | - | - | - | |
|
TES 2-1211HDC DC CONVERTER 5V 2W |
22 |
|
Datasheet |
TES 2H (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 75% | - | - | Surface Mount | - | - | - | - | |
|
|
TMV 2-2415DHIDC DC CONVERTER +/-15V 2W |
30 |
|
Datasheet |
TMV 2HI (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - | |
|
|
TMV 2-0515DHIDC DC CONVERTER +/-15V 2W |
21 |
|
Datasheet |
TMV 2HI (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | - | - | - | - | |
|
TMV 0515ENDC DC CONVERTER 15V 1W |
86 |
|
Datasheet |
TMV-EN (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 65mA | 1 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 85°C (With Derating) | 66% | - | - | Through Hole | - | - | - | - | |
.jpg)
|
NMH0505SCDC DC CONVERTER +/-5V 2W |
32 |
|
Datasheet |
NMH (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
RA3-242005D/SMDDC DC CONVERTER 20V 5V 3W |
24 |
|
Datasheet |
RA3 | 16-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 20V | -5V | - | - | 75mA, 300mA | 3 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Surface Mount | - | - | - | - | |
|
|
TMV 1212ENDC DC CONVERTER 12V 1W |
20 |
|
Datasheet |
TMV-EN (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 80mA | 1 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 85°C (With Derating) | 66% | - | - | Through Hole | - | - | - | - | |
|
|
RA3-241503D/SMDDC DC CONVERTER 15V 3V 3W |
17 |
|
Datasheet |
RA3 | 16-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | 3V | - | - | 100mA, 500mA | 3 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Surface Mount | - | - | - | - | |
|
JCB0324S09DC DC CONVERTER 9V 3W |
10 |
|
Datasheet |
JCB (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 9V | - | - | - | 333mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 80% | - | - | Through Hole | - | - | - | - | |
|
TMR 2-1211EDC DC CONVERTER 5V 2W |
33 |
|
Datasheet |
TMR 2E (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Through Hole | - | - | - | - |
