DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGFS1R52405DC DC CONVERTER 5V 1.5W |
72 |
|
Datasheet |
MGFS (1.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 300mA | 1.5 W | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
MGFS1R54805DC DC CONVERTER 5V 1.5W |
67 |
|
Datasheet |
MGFS (1.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 18V | 76V | 5V | - | - | - | 300mA | 1.5 W | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C | 79% | - | - | Through Hole | - | - | - | - | |
.jpg)
|
MGFW1R52415DC DC CONVERTER +/-15V 1.5W |
24 |
|
Datasheet |
MGFW (1.5W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 50mA, 50mA | 1.5 W | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
MGFS1R5483R3DC DC CONVERTER 3.3V 1.3W |
13 |
|
Datasheet |
MGFS (1.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 18V | 76V | 3.3V | - | - | - | 400mA | 1.3 W | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C | 76% | - | - | Through Hole | - | - | - | - | |
|
NSD10-48S9DC DC CONVERTER 9V 10W |
12 |
|
Datasheet |
NSD10-S (10W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 22V | 72V | 9V | - | - | - | 1.1A | 10 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -25°C ~ 70°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - | |
|
|
MGFW1R54815DC DC CONVERTER +/-15V 1.5W |
10 |
|
Datasheet |
MGFW (1.5W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 18V | 76V | 15V | -15V | - | - | 50mA, 50mA | 1.5 W | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C | 79% | - | - | Through Hole | - | - | - | - | |
|
R05P12SDC DC CONVERTER 12V 1W |
23 |
|
Datasheet |
ECONOLINE RxxPxx (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 6.4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 90°C | 75% | - | - | Through Hole | - | - | - | - | |
|
|
MGFS34805DC DC CONVERTER 5V 3W |
57 |
|
Datasheet |
MGFS (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 18V | 76V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - | |
|
EC3A03DC DC CONVERTER 15V 3W |
62 |
|
Datasheet |
EC3A (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 6V | 15V | - | - | - | 200mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 77% | - | - | Through Hole | - | - | - | - | |
|
AYA00B24-LDC DC CONVERTER 12V 2W |
26 |
|
Datasheet |
AYA (2W) | 7-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 167mA | 2 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | - | - | |
|
|
EC3A11DC DC CONVERTER 5V 3W |
16 |
|
Datasheet |
EC3A (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 77% | - | - | Through Hole | - | - | - | - | |
|
|
EC3A02DC DC CONVERTER 12V 3W |
6 |
|
Datasheet |
EC3A (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 6V | 12V | - | - | - | 250mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 79% | - | - | Through Hole | - | - | - | - | |
|

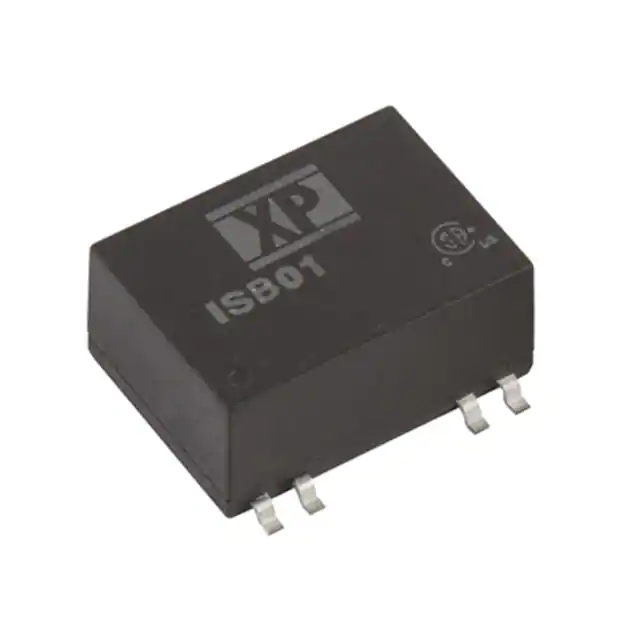

ISB0124S15DC DC CONVERTER 15V 1W |
30 |
|
Datasheet |
ISB01 (1W) | 14-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C | 82% | - | - | Surface Mount | - | Enable, Active Floating | - | 62368-1 | |
|

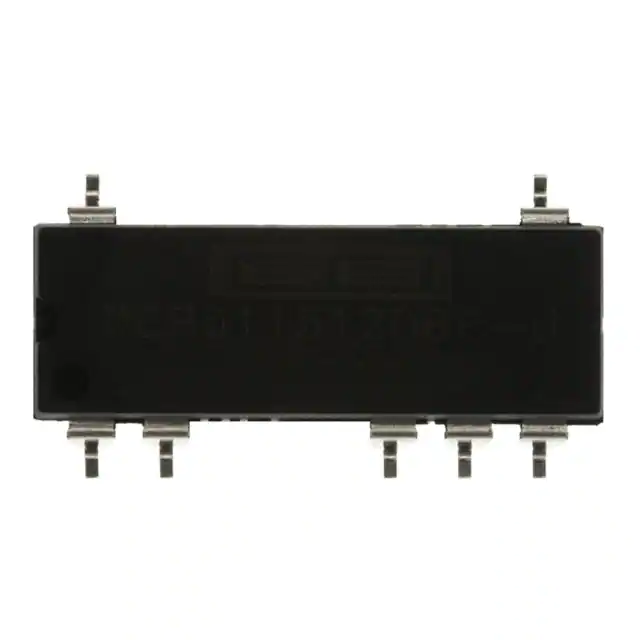

DCP011512DBP-UDC DC CONVERTER +/-12V 1W |
100 |
|
Datasheet |
DCP01B (1W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | - | Enable, Active High | - | - | |
|
R2S-2405DC DC CONVERTER 5V 2W |
45 |
|
Datasheet |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | - | - | - | - | |
|
|
R2S-2412DC DC CONVERTER 12V 2W |
39 |
|
Datasheet |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | - | - | - | - | |
|

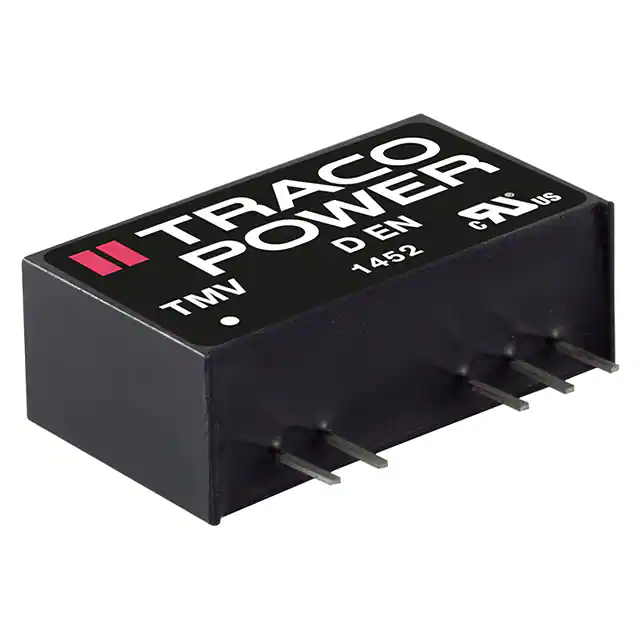

TMV 0515DENDC DC CONVERTER +/-15V 1.1W |
64 |
|
Datasheet |
TMV-EN (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 35mA, 35mA | 1.1 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 85°C (With Derating) | 73% | - | - | Through Hole | - | - | - | - | |
|
|
TMV 0512DENDC DC CONVERTER +/-12V 1W |
30 |
|
Datasheet |
TMV-EN (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 40mA, 40mA | 1 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 85°C (With Derating) | 72% | - | - | Through Hole | - | - | - | - | |
|
|
TMV 1205DENDC DC CONVERTER +/-5V 1W |
15 |
|
Datasheet |
TMV-EN (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 85°C (With Derating) | 66% | - | - | Through Hole | - | - | - | - | |
|
TEM 3-2411NDC DC CONVERTER 5V 3W |
13 |
|
Datasheet |
TEM 3N (3W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 75% | - | - | Through Hole | - | - | - | - |
