DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

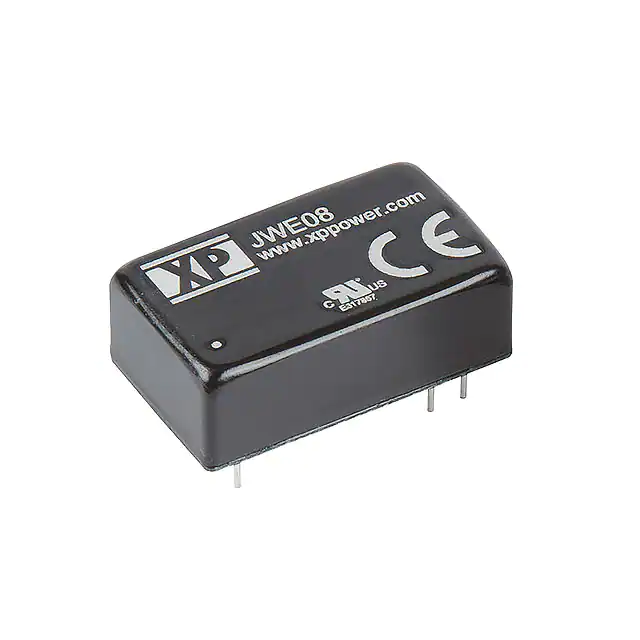

JWE0824S24DC DC CONVERTER 24V 8W |
26 |
|
Datasheet |
JWE08 (8W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 335mA | 8 W | 1.5 kV | ITE (Commercial) | OCP, SCP | - | 86% | - | - | Through Hole | 16-DIP | - | - | 62368-1 | |
|
NCS12S1215CDC DC CONVERTER 15V 12W |
30 |
|
Datasheet |
NCS12 (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 800mA | 12 W | 1.5 kV | ITE (Commercial) | OTP, SCP, UVLO | -40°C ~ 85°C | 85.5% | - | - | Through Hole | - | - | - | - | |
|
|
NCS12S4815CDC DC CONVERTER 15V 12W |
16 |
|
Datasheet |
NCS12 (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 800mA | 12 W | 1.5 kV | ITE (Commercial) | OTP, SCP, UVLO | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - | |
|
TEN 5-4813WIDC DC CONVERTER 15V 6W |
20 |
|
Datasheet |
TEN 5WI (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | Module | - | - | - | |
|
TEN 5-4823DC DC CONVERTER +/-15V 6W |
81 |
|
Datasheet |
TEN 5 (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | Module | - | - | - | |
|
|
TEN 5-4822DC DC CONVERTER +/-12V 6W |
6 |
|
Datasheet |
TEN 5 (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | Module | - | - | - | |
|
REC5-2412DRWZ/H4/ADC DC CONVERTER +/-12V 5W |
29 |
|
Datasheet |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 210mA, 210mA | 5 W | 4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 83% | - | - | Through Hole | - | - | - | - | |
.jpg)
|
REC5-4815SRWZ/H6/ADC DC CONVERTER 15V 5W |
18 |
|
Datasheet |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 72V | 15V | - | - | - | 340mA | 5 W | 6 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 85% | - | - | Through Hole | - | - | - | - | |
|
TDR 2-2412WIDC DC CONVERTER 12V 2W |
60 |
|
Datasheet |
TDR 2WI (2W) | 14-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 167mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
TDR 2-4811WIDC DC CONVERTER 5V 2W |
40 |
|
Datasheet |
TDR 2WI (2W) | 14-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 400mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
|
TDR 2-1211WIDC DC CONVERTER 5V 2W |
33 |
|
Datasheet |
TDR 2WI (2W) | 14-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 400mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 79% | - | - | Through Hole | - | - | - | - | |
|
TEL 12-241212 WATT DC/DC CONVERTER, INDUSTR |
94 |
|
Datasheet |
TEL 12 (12W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 1A | 12 W | 1.8 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | CB, cURus | - | |
|
|
TEL 12-241112 WATT DC/DC CONVERTER, INDUSTR |
18 |
|
Datasheet |
TEL 12 (12W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5.1V | - | - | - | 2.4A | 12 W | 1.8 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | CB, cURus | - | |
|
|
TEL 12-121112 WATT DC/DC CONVERTER, INDUSTR |
16 |
|
Datasheet |
TEL 12 (12W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5.1V | - | - | - | 2.4A | 12 W | 1.8 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | CB, cURus | - | |
|
|
TEL 12-241512 WATT DC/DC CONVERTER, INDUSTR |
13 |
|
Datasheet |
TEL 12 (12W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 500mA | 12 W | 1.8 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C | 88% | - | - | Through Hole | - | - | CB, cURus | - | |
|
|
TEL 12-481212 WATT DC/DC CONVERTER, INDUSTR |
10 |
|
Datasheet |
TEL 12 (12W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 1A | 12 W | 1.8 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | CB, cURus | - | |
|
JTD1524S15DC DC CONVERTER 15V 15W |
20 |
|
Datasheet |
JTD15 (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1A | 15 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C (With Derating) | 86% | - | - | Through Hole | 6-DIP | - | - | 62368-1 | |
|
JTF0824S15DC DC CONVERTER 15V 8W |
19 |
|
Datasheet |
JTF (15W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 535mA | 8 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C | 87% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|
|
JTF0824S12DC DC CONVERTER 12V 8W |
15 |
|
Datasheet |
JTF (15W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 665mA | 8 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C | 87% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|
R5M-2405S/SMD5W DC/DC-CONVERTER 'ECONOLINE' S |
20 |
|
Datasheet |
R5M (5W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1A | 5 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Surface Mount | - | - | - | - |
