DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2098DC DC CONVERTER 5V 1.5W |
75 |
|
Datasheet |
D24V3 | 4-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 6V | 42V | 5V | - | - | - | 300mA | 1.5 W | - | - | - | - | 90% | - | - | Through Hole | - | Enable, Active High | - | - | |
|

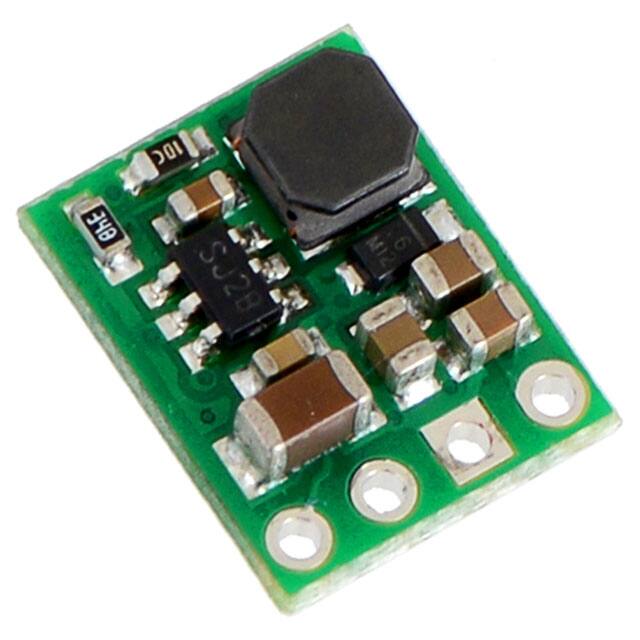

2099DC DC CONVERTER 9V 2.7W |
58 |
|
Datasheet |
D24V3 | 4-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 10.5V | 42V | 9V | - | - | - | 300mA | 2.7 W | - | - | - | - | 90% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
|
PT5111NDC DC CONVERTER 10V 10W |
0 |
|
Datasheet |
PT5100 | 3-SIP Module | Tray | Obsolete | Linear Regulator Replacement | 1 | 14V | 38V | 10V | - | - | - | 1A | 10 W | - | ITE (Commercial) | OCP, OTP | -40°C ~ 85°C | 93% | - | - | Through Hole | - | - | - | - | |
|
|
PT5109NDC DC CONVERTER 5.6V 5W |
0 |
|
Datasheet |
PT5100 | 3-SIP Module | Tray | Obsolete | Linear Regulator Replacement | 1 | 9.6V | 38V | 5.6V | - | - | - | 1A | 5 W | - | ITE (Commercial) | OCP, OTP | -40°C ~ 85°C | 90% | - | - | Through Hole | - | - | - | - | |
|
RTC2-0505SRWDC DC CONVERTER 5V 2W |
30 |
|
Datasheet |
RTC2 (2W) | 5-SMD Module | Tray | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C (With Derating) | 76% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|

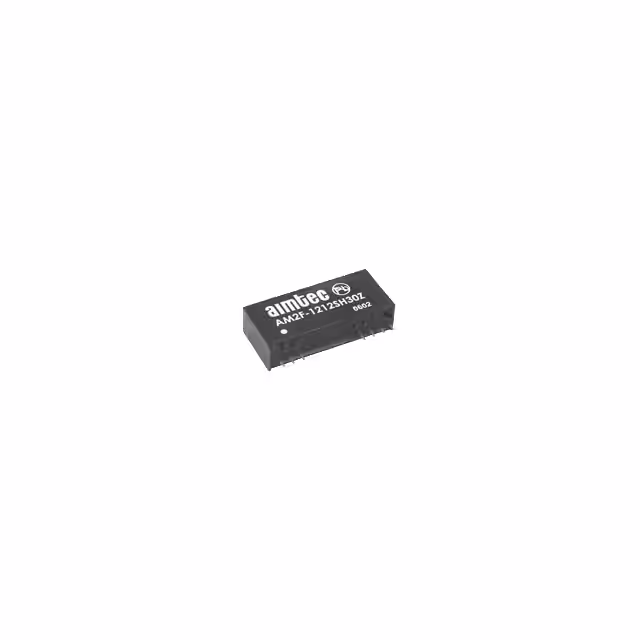

AM2F-0509SH30ZDC DC CONVERTER 9V 2W |
40 |
|
Datasheet |
AM2F-Z (2W) | 12-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 222mA | 2 W | 3 kV | ITE (Commercial) | - | -25°C ~ 85°C | 71% | - | - | Through Hole | - | - | - | - | |
|

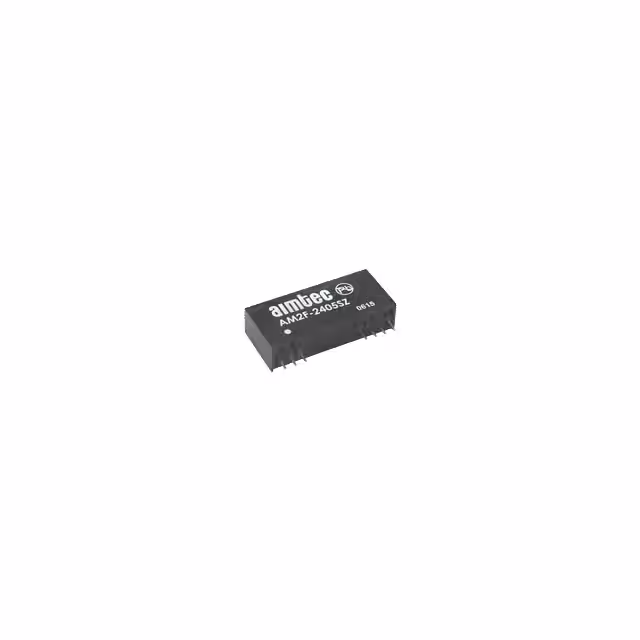

AM2F-0505SZDC DC CONVERTER 5V 2W |
40 |
|
Datasheet |
AM2F-Z (2W) | 12-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -25°C ~ 85°C | 68% | - | - | Through Hole | - | - | - | - | |
|
|
AM2F-0507SZDC DC CONVERTER 7.2V 2W |
40 |
|
Datasheet |
AM2F-Z (2W) | 12-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 7.2V | - | - | - | 278mA | 2 W | 1 kV | ITE (Commercial) | - | -25°C ~ 85°C | 64% | - | - | Through Hole | - | - | - | - | |
|
|
AM2F-0505SH30ZDC DC CONVERTER 5V 2W |
40 |
|
Datasheet |
AM2F-Z (2W) | 12-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | - | -25°C ~ 85°C | 68% | - | - | Through Hole | - | - | - | - | |
|
|
AM2F-0503SH30ZDC DC CONVERTER 3.3V 1.7W |
40 |
|
Datasheet |
AM2F-Z (2W) | 12-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 500mA | 2 W | 3 kV | ITE (Commercial) | - | -25°C ~ 85°C | 59% | - | - | Through Hole | - | - | - | - | |
|
|
AM2F-0507SH30ZDC DC CONVERTER 7.2V 2W |
40 |
|
Datasheet |
AM2F-Z (2W) | 12-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 7.2V | - | - | - | 278mA | 2 W | 3 kV | ITE (Commercial) | - | -25°C ~ 85°C | 64% | - | - | Through Hole | - | - | - | - | |
|
|
AM2F-0503SZDC DC CONVERTER 3.3V 1.7W |
40 |
|
Datasheet |
AM2F-Z (2W) | 12-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 500mA | 2 W | 1 kV | ITE (Commercial) | - | -25°C ~ 85°C | 59% | - | - | Through Hole | - | - | - | - | |
|
|
AM2F-1215SH30ZDC DC CONVERTER 15V 2W |
40 |
|
Datasheet |
AM2F-Z (2W) | 12-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 134mA | 2 W | 3 kV | ITE (Commercial) | - | -25°C ~ 85°C | 68% | - | - | Through Hole | - | - | - | - | |
|
|
AM2F-1209SH30ZDC DC CONVERTER 9V 2W |
40 |
|
Datasheet |
AM2F-Z (2W) | 12-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 222mA | 2 W | 3 kV | ITE (Commercial) | - | -25°C ~ 85°C | 66% | - | - | Through Hole | - | - | - | - | |
|
|
AM2F-1212SZDC DC CONVERTER 12V 2W |
40 |
|
Datasheet |
AM2F-Z (2W) | 12-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | - | -25°C ~ 85°C | 67% | - | - | Through Hole | - | - | - | - | |
|
|
AM2F-1212SH30ZDC DC CONVERTER 12V 2W |
40 |
|
Datasheet |
AM2F-Z (2W) | 12-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 3 kV | ITE (Commercial) | - | -25°C ~ 85°C | 67% | - | - | Through Hole | - | - | - | - | |
|
|
AM2F-1209SZDC DC CONVERTER 9V 2W |
40 |
|
Datasheet |
AM2F-Z (2W) | 12-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 222mA | 2 W | 1 kV | ITE (Commercial) | - | -25°C ~ 85°C | 66% | - | - | Through Hole | - | - | - | - | |
|

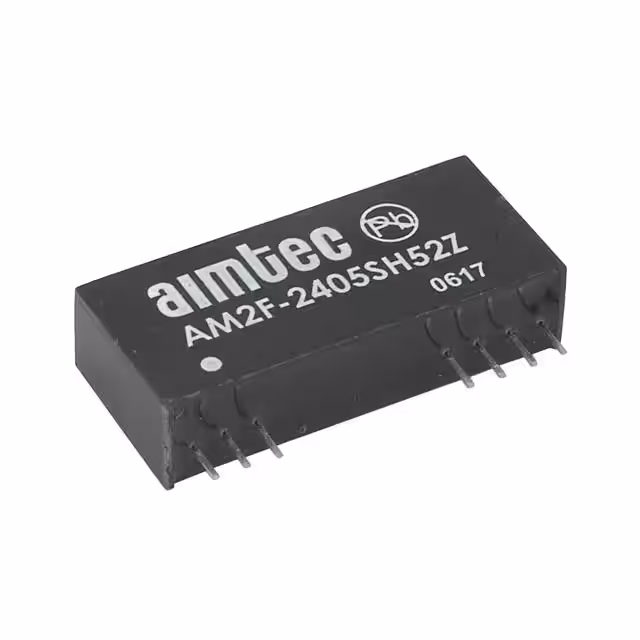

AM2F-2403SZDC DC CONVERTER 3.3V 1.7W |
40 |
|
Datasheet |
AM2F-Z (2W) | 12-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 3.3V | - | - | - | 500mA | 2 W | 1 kV | ITE (Commercial) | - | -25°C ~ 85°C | 54% | - | - | Through Hole | - | - | - | - | |
|
|
AM2F-1215SZDC DC CONVERTER 15V 2W |
40 |
|
Datasheet |
AM2F-Z (2W) | 12-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 134mA | 2 W | 1 kV | ITE (Commercial) | - | -25°C ~ 85°C | 68% | - | - | Through Hole | - | - | - | - | |
|
|
AM2F-1224SH30ZDC DC CONVERTER 24V 2W |
40 |
|
Datasheet |
AM2F-Z (2W) | 12-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 83mA | 2 W | 3 kV | ITE (Commercial) | - | -25°C ~ 85°C | 72% | - | - | Through Hole | - | - | - | - |
