Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A22NL-RPM-TRA-P002-RCPSHIN PRJ MTL BZL RED 1 NC |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 24 VAC/DC | Spring Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPM-TWA-P002-WCPSHIN PRJ MTL BZL WHTE 1 NC |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VAC/DC | Spring Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPM-TWA-P100-WCPSHIN PRJ MTL BZL WHTE 1 NO |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VAC/DC | Spring Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NN-RPA-NAA-P102-NNPSHINPRJ MTL BZL BLUE 1NO/NC |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Blue | - | - | Spring Terminal | - | - | - | -25°C ~ 70°C |
|
|
A22NN-RPA-NWA-P101-NNPSHIN PRJ MTL BZL WHTE 2 NO |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | DPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | White | - | - | Spring Terminal | - | - | - | -25°C ~ 70°C |
|
|
A22NN-RPA-NYA-P101-NNPSHIN PRJ MTL BZL YLLW 2 NO |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | DPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Yellow | - | - | Spring Terminal | - | - | - | -25°C ~ 70°C |
|
|
A22NN-RNA-NAA-P202-NNPSHIN FLT MTL BZL BLUE 2 NO |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | DPST-NC | On-Off | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Blue | - | - | Spring Terminal | - | - | - | -25°C ~ 70°C |
|
|
A22NN-RNA-NAA-P102-NNPSHINFLT MTL BZL BLUE 1 NO/NC |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Blue | - | - | Spring Terminal | - | - | - | -25°C ~ 70°C |
|
|
A22NN-RNA-NRA-P101-NNPSHIN FLT MTL BZL RED 2 NO |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | DPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Red | - | - | Spring Terminal | - | - | - | -25°C ~ 70°C |
|
|
A22NL-RPM-TYA-P002-YCPSHIN PRJ MTL BZL YLLW 1 NC |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 24 VAC/DC | Spring Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NN-RNA-NGA-P101-NNPSHIN FLT MTL BZL GREN 2 NO |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | DPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Green | - | - | Spring Terminal | - | - | - | -25°C ~ 70°C |
|
|
A22NN-RNA-NRA-P102-NNPSHINFLT MTL BZL RED 1 NO/NC |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Red | - | - | Spring Terminal | - | - | - | -25°C ~ 70°C |
|
|
A22NN-RNA-NAA-P101-NNPSHIN FLT MTL BZL BLUE 2 NO |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | DPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Blue | - | - | Spring Terminal | - | - | - | -25°C ~ 70°C |
|
|
A22NL-RPM-TYA-P100-YCPSHIN PRJ MTL BZL YLLW 1 NO |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 24 VAC/DC | Spring Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NN-RNA-NGA-P102-NNPSHINFLT MTL BZL GREEN 1 NO/NC |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Green | - | - | Spring Terminal | - | - | - | -25°C ~ 70°C |
|
|
A22NL-RPA-TYA-P002-YBPSHIN PRJ MTL BZL YLLW 1 NC |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Off | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 12 VAC/DC | Spring Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NN-RNA-NRA-P202-NNPSHIN FLT MTL BZL RED 2 NO |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | DPST-NC | On-Off | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Red | - | - | Spring Terminal | - | - | - | -25°C ~ 70°C |
|
|
A22NN-RNA-NGA-P202-NNPSHIN FLT MTL BZL GREN 2 NO |
0 |
|
- |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | DPST-NC | On-Off | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Green | - | - | Spring Terminal | - | - | - | -25°C ~ 70°C |
|
|
A22NL-RPM-TGA-P100-GCPSHIN PRJ MTL BZL GREN 1 NO |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VAC/DC | Spring Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|

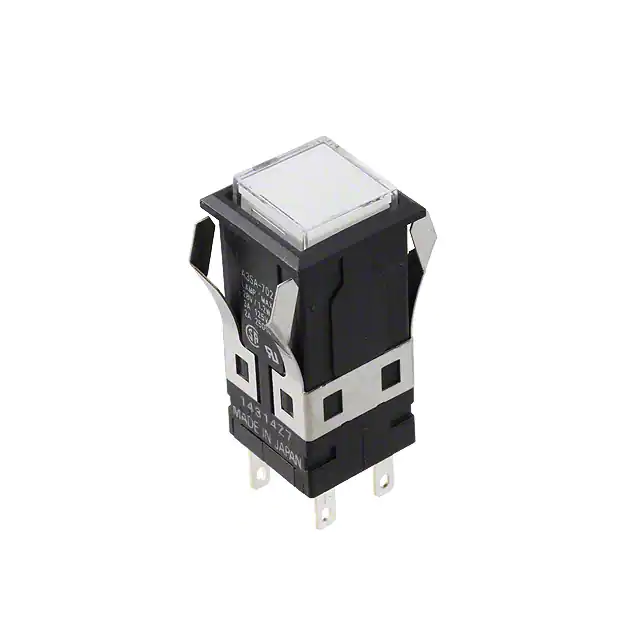

A3SA-90B1-24SWSWITCH PUSHBUTTON SPDT 3A 125V |
5 |
|
Datasheet |
A3S | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button | No Marking | White | LED, Amber | 24 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Square - 16.20mm x 16.20mm | -10°C ~ 50°C |
