Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

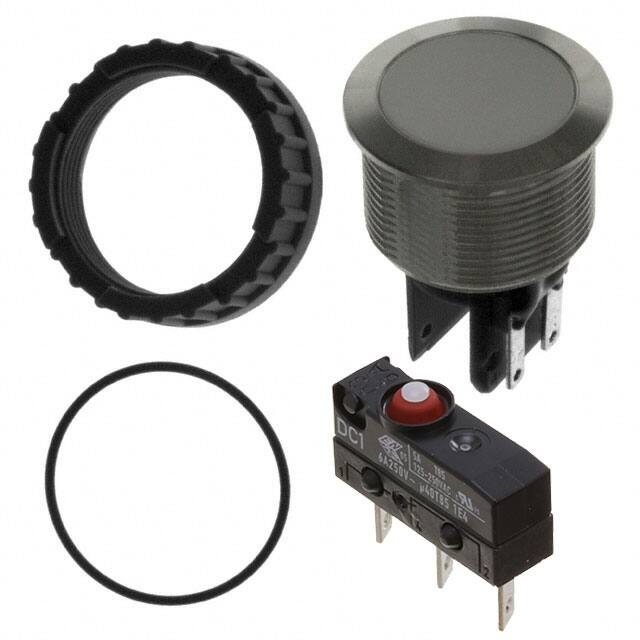

1241.7036.1184000SWITCH PUSHBUTTON SPDT 5A 250V |
1 |
|
Datasheet |
MSM CS | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Ceramic Actuator | Circular - 22.10mm Dia | -25°C ~ 85°C |
|
NX303CB1R-60TACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Red | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
HW4L-M2F01QD-Y-240V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Yellow | LED, Yellow | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-M2F01QD-W-120V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | White | LED, White | 120 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-M2F01QD-R-120V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Red | LED, Red | 120 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-M2F01QD-A-240V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Amber | LED, Amber | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-M2F01QD-R-240V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Red | LED, Red | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-M2F01QD-Y-120V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Yellow | LED, Yellow | 120 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-M2F01QD-G-240V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Green | LED, Green | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-M2F01QD-G-120V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Green | LED, Green | 120 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-M2F01QD-W-240V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | White | LED, White | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-M2F01QD-A-120V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Amber | LED, Amber | 120 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-M2F10QD-R-120V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Red | LED, Red | 120 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-M2F10QD-Y-240V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Yellow | LED, Yellow | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-M2F10QD-R-240V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Red | LED, Red | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-M2F10QD-G-240V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Green | LED, Green | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-M2F10QD-Y-120V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Yellow | LED, Yellow | 120 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-M2F10QD-W-240V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | White | LED, White | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-M2F10QD-A-120V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Amber | LED, Amber | 120 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-M2F10QD-A-240V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Amber | LED, Amber | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
