Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HW4L-MF2F10QD-A-24VHW MTL BZL PB FULL-SHROUD MOM |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Amber | LED, Amber | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-MF2F10QD-R-6V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Red | LED, Red | 6 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-MF2F10QD-G-6V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Green | LED, Green | 6 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-MF2F10QD-R-24VHW MTL BZL ILL PB EXTD W/SHRD |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Red | LED, Red | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-MF2F01QD-W-6V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | White | LED, White | 6 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-MF2F10QD-W-6V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | White | LED, White | 6 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-MF2F10QD-Y-24VHW MTL BZL ILL PB EXTD W/SHRD |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Yellow | LED, Yellow | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-MF2F10QD-G-12VHW MTL BZL ILL PB EXTD W/SHRD |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Green | LED, Green | 12 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-MF2F01QD-W-24V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | White | LED, White | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-MF2F10QD-W-24VHW MTL BZL PB FULL-SHROUD MOM |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | White | LED, White | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-MF2F10QD-W-12V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | White | LED, White | 12 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW2B-M2C2-W22MM PUSHBUTTON WHITE |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
HW4L-MF2F10QD-R-12V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Red | LED, Red | 12 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-MF2F01QD-W-12V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | White | LED, White | 12 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-MF2F10QD-G-24VHW MTL BZL ILL PB EXTD W/SHRD |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Green | LED, Green | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW1B-M2C2V-R22MM PUSHBUTTON RED |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Red | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
LBW6MB-M1T1VRLBW FLUSH PB MOME. RED |
2 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Red | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LBW6MB-M1T5BLBW FLUSH PB MOME. BLACK |
2 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|

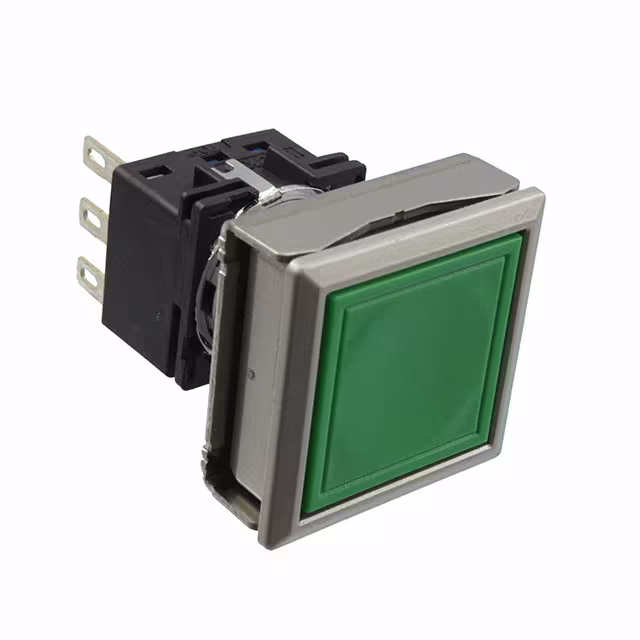

LBW7MB-M1T5GLBW FLUSH PB MOME. GREEN |
2 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
LBW7MB-M1T5RLBW FLUSH PB MOME. RED |
2 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
