Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HW1L-A1F11QD-W-6V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 110 V | 24 V | Round, Button, Flush | - | White | LED, White | 6 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1L-A1F11QD-G-24V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 110 V | 24 V | Round, Button, Flush | - | Green | LED, Green | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
NX301CB1B-60TACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
ALFW29910D-S-6V22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CW4B-A1E22YPUSHBUTTON 22MM 2NO+2NC YELLOW |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Off, Off-On | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button, Flush | - | Yellow | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW4B-A1E22BPUSHBUTTON 22MM 2NO+2NC BLACK |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Off, Off-On | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button, Flush | - | Black | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW4B-A1E22GPUSHBUTTON 22MM 2NO+2NC GREEN |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Off, Off-On | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button, Flush | - | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW4B-A1E22RPUSHBUTTON 22MM 2NO+2NC RED |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Off, Off-On | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW4B-A1E22SPUSHBUTTON 22MM 2NO+2NC BLUE |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Off, Off-On | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button, Flush | - | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW4B-A1E22WPUSHBUTTON 22MM 2NO+2NC WHITE |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Off, Off-On | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button, Flush | - | White | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW4B-A2E22BPUSHBUTTON 22MM 2NO+2NC BLACK |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Off, Off-On | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button | - | Black | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW4B-A2E22GPUSHBUTTON 22MM 2NO+2NC GREEN |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Off, Off-On | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button | - | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW4B-A2E22SPUSHBUTTON 22MM 2NO+2NC BLUE |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Off, Off-On | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button | - | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW4B-A2E22RPUSHBUTTON 22MM 2NO+2NC RED |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Off, Off-On | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button | - | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW4B-A2E22YPUSHBUTTON 22MM 2NO+2NC YELLOW |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Off, Off-On | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button | - | Yellow | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW4B-A2E22WPUSHBUTTON 22MM 2NO+2NC WHITE |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Off, Off-On | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button | - | White | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|

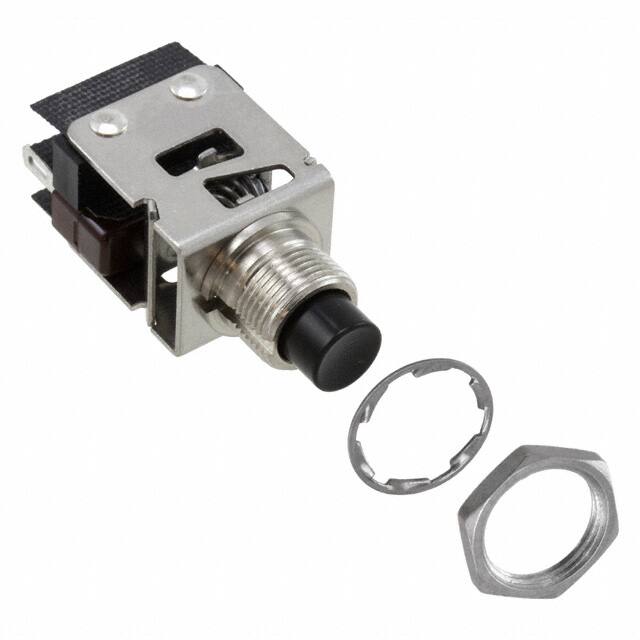

1PB935-H4SWITCH PUSHBUTTON SPDT 5A 250V |
0 |
|
Datasheet |
PB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round, Plunger | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | - | - |
|
|
13445AD24X768SWITCH PUSHBUTTON DPDT 4A 125V |
0 |
|
Datasheet |
13000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | Round, Plunger | No Marking | Silver | - | - | Solder Lug | - | Sealed - Fully | Circular - 12.00mm Dia | -40°C ~ 85°C |
|
|
NX303001B-30TACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Rear | Standard | DPST-NO/NC | On-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
AOLW29910D-A-120V22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
