Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NX301EB1B-01TACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
NX303005B-30TACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Rear | Standard | DPST-NO/NC | On-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
1520149-1SWITCH PUSHBUTTON DPDT 16A 125V |
0 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 16A (AC) | 125 V | - | Round, Button | No Marking | - | - | - | Screw Terminal | - | - | - | - |
|
|
NX303AB1B-ETACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|
3SU11300AB201CA0PUSHBUTTON, MOM, RED, FLUSH |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11300AB601BA0PUSHBUTTON, MOM, WHT, FLUSH |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11300AB401BA0PUSHBUTTON, MOM, GRN, FLUSH |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Green | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11300AB101BA0PUSHBUTTON, MOM, BLK, FLUSH |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11300AB101CA0PUSHBUTTON, MOM, BLK, FLUSH |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11300AB501BA0PUSHBUTTON, MOM, BLU, FLUSH |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11300AB201BA0PUSHBUTTON, MOM, RED, FLUSH |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11300AB301BA0PUSHBUTTON, MOM, YEL, FLUSH |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Yellow | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

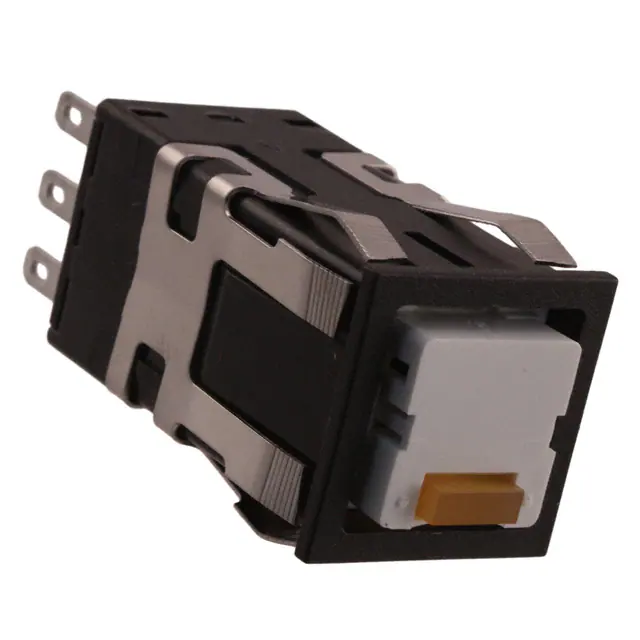

AML22CBM2ABSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Yellow | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
|
AML32FBL7ADSWITCH PUSH DPST-NO 10A 125V |
0 |
|
Datasheet |
AML32 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO (DM) | Off-On | 10A (AC/DC) | 125 V | 30 V | Rectangular, Button (Not Included) | No Marking | - | Neon, Clear | 250 VAC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 29.00mm x 19.00mm | - |
|
|
AML21CBA2BDUNSEALED OI-PB SWITCH |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NX303001W-30TACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Rear | Standard | DPST-NO/NC | On-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
A22NL-RPM-TAA-P002-ADPSHIN PRJ MTL BZL BLUE 1 NC |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 100 ~ 120 VAC | Spring Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPM-TAA-P100-ADPSHIN PRJ MTL BZL BLUE 1 NO |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 100 ~ 120 VAC | Spring Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPM-TGA-P100-GDPSHIN PRJ MTL BZL GREN 1 NO |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 100 ~ 120 VAC | Spring Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPM-TRA-P002-RDPSHIN PRJ MTL BZL RED 1 NC |
0 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 100 ~ 120 VAC | Spring Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
