Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

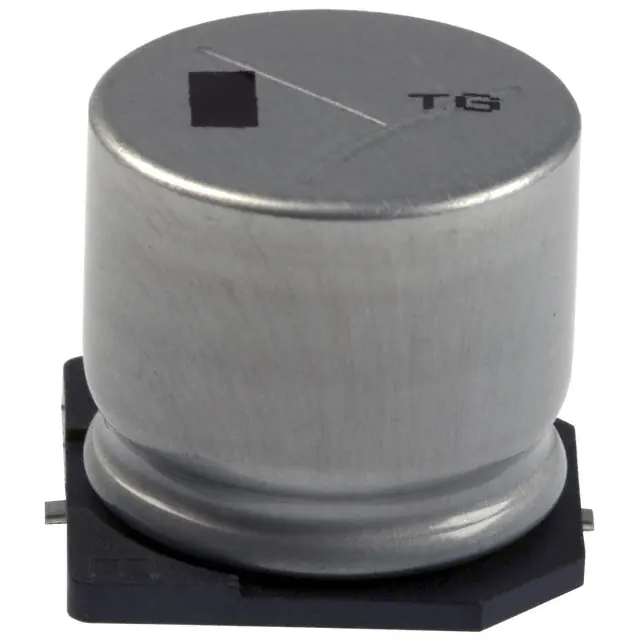

EEV-TG1K331MCAP ALUM 330UF 20% 80V SMD |
0 |
|
Datasheet |
TG | Tape & Reel (TR) | Active | 330 µF | ±20% | 80 V | 280mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 260 mA @ 120 Hz | 400 mA @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
GS2E561MW42535RCAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
GS | Active | 560 µF | ±20% | 250 V | 360mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
30D105F150BA5CAP ALUM 1UF 150V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 1 µF | -10%, +50% | 150 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
|
30D105M150BA6ACAP ALUM 1UF 20% 150V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 1 µF | ±20% | 150 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
|
30D107G025DD2CAP ALUM 100UF 25V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 100 µF | -10%, +75% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.374" Dia x 0.945" L (9.50mm x 24.00mm) | - | - | Through Hole | |
|
|
30D156M160DD2ACAP ALUM 15UF 20% 160V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 15 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.374" Dia x 0.945" L (9.50mm x 24.00mm) | - | - | Through Hole | |
|
|
30D157G016DD2CAP ALUM 150UF 16V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 150 µF | -10%, +75% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.374" Dia x 0.945" L (9.50mm x 24.00mm) | - | - | Through Hole | |
|
|
30D197G012DD2CAP ALUM 190UF 12V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 190 µF | -10%, +75% | 12 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.374" Dia x 0.945" L (9.50mm x 24.00mm) | - | - | Through Hole | |
|
|
30D226M025BA5ACAP ALUM 22UF 20% 25V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 22 µF | ±20% | 25 V | 13.27Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 67 mA @ 120 Hz | 93.8 mA @ 100 kHz | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
|
30D227M035DD2ACAP ALUM 220UF 20% 35V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 220 µF | ±20% | 35 V | 1.25Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 356 mA @ 120 Hz | 498.4 mA @ 100 kHz | - | - | 0.374" Dia x 0.945" L (9.50mm x 24.00mm) | - | - | Through Hole | |
|
|
30D305G050BA5ACAP ALUM 3UF 50V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 3 µF | -10%, +75% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
|
30D396M100DD2ACAP ALUM 39UF 20% 100V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 39 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.374" Dia x 0.945" L (9.50mm x 24.00mm) | - | - | Through Hole | |
|
|
30D405G050BA5ACAP ALUM 4UF 50V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 4 µF | -10%, +75% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
|
30D476M010BA5ACAP ALUM 47UF 20% 10V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 47 µF | ±20% | 10 V | 7.487Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 89 mA @ 120 Hz | 124.6 mA @ 100 kHz | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
|
30D505G025BA5CAP ALUM 5UF 25V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 5 µF | -10%, +75% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
|
30D805G006BA5ACAP ALUM 8UF 6V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 8 µF | -10%, +75% | 6 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
500D105M150BA5CAP ALUM 1UF 20% 150V AXIAL TH |
0 |
|
Datasheet |
500D | Bulk | Active | 1 µF | ±20% | 150 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
500D107M063DD2ACAP ALUM 100UF 20% 63V AXIAL TH |
0 |
|
Datasheet |
500D | Bulk | Active | 100 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.374" Dia x 0.945" L (9.50mm x 24.00mm) | - | - | Through Hole | |
|
|
500D156M150DD2ACAP ALUM 15UF 20% 150V AXIAL TH |
0 |
|
Datasheet |
500D | Bulk | Active | 15 µF | ±20% | 150 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.374" Dia x 0.945" L (9.50mm x 24.00mm) | - | - | Through Hole | |
|
|
500D157G016DD2ACAP ALUM 150UF 16V AXIAL TH |
0 |
|
Datasheet |
500D | Bulk | Active | 150 µF | - | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.374" Dia x 0.945" L (9.50mm x 24.00mm) | - | - | Through Hole |
