Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
200MXG560MEFCSN25X25CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 560 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 2.4 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LSM122M2C---3040SCAP ALUM 160V POLAR |
0 |
|
- |
LSM | Active | 1.2 mF | ±20% | 160 V | 111mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | 3.29 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
EKMZ421VSN221MP35SCAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
KMZ | Bulk | Active | 220 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.13 A @ 120 Hz | 1.6159 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
E82D101VNN472MA50UCAP ALUM SNAP-IN GEN PUR 85C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
450KXF100MEFCSN30X20CAP ALUM 100UF 20% 450V SNAP TH |
0 |
|
Datasheet |
KXF | Bulk | Active | 100 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 610 mA @ 120 Hz | 854 mA @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
PEG124GC322AQT1CAP ALUM AXL 125C |
0 |
|
Datasheet |
PEG124 | Tape & Reel (TR) | Active | 220 µF | -10%, +30% | 16 V | 390mOhm @ 100Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 422 mA @ 100 Hz | 1.4 A @ 5 kHz | - | - | 0.512" Dia x 0.787" L (13.00mm x 20.00mm) | - | - | Through Hole | |
|
397LBB250M2BECAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LBB | Bulk | Active | 390 µF | ±20% | 250 V | 425.09mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.9547 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
SLP182M100E3P3CAP ALUM 1800UF 20% 100V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 1800 µF | ±20% | 100 V | 147mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.75 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
SLPX221M420E3P3CAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 220 µF | ±20% | 420 V | 905mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 2.43 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
SLPX271M350E1P3CAP ALUM 270UF 20% 350V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 270 µF | ±20% | 350 V | 737mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.65 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
SLPX331M315C5P3CAP ALUM 330UF 20% 315V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 330 µF | ±20% | 315 V | 603mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.94 A @ 120 Hz | 2.85 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LQ562M063K042CAP ALUM 5600UF 20% 63V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 5600 µF | ±20% | 63 V | 74mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.11 A @ 120 Hz | 4.72 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
381LQ333M016K032CAP ALUM 33000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 33000 µF | ±20% | 16 V | 23mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.7 A @ 120 Hz | 5.41 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
381LX151M400H022CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 150 µF | ±20% | 400 V | 921mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
381LX272M080J042CAP ALUM 2700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 2700 µF | ±20% | 80 V | 104mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGU2Z681MELCCAP ALUM 680UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LGU | Bulk | Active | 680 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.67 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
BIPOLAR CAPACITOR 100,0 UFCAP ALUM 100UF 10% 63V AXIAL TH |
0 |
|
- |
- | Bulk | Active | 100 µF | ±10% | 63 V | - | - | - | Bi-Polar | - | General Purpose | - | - | - | - | 0.630" Dia x 1.319" L (16.00mm x 33.50mm) | - | - | Through Hole | |
|
|
VPR241U040E1ECAP ALUM 240UF 40V RADIAL TH |
0 |
|
Datasheet |
VPR | Bulk | Obsolete | 240 µF | -10%, +75% | 40 V | 114mOhm @ 10kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 1.61 A @ 10 kHz | - | 0.201" (5.10mm) | 0.512" Dia (13.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|

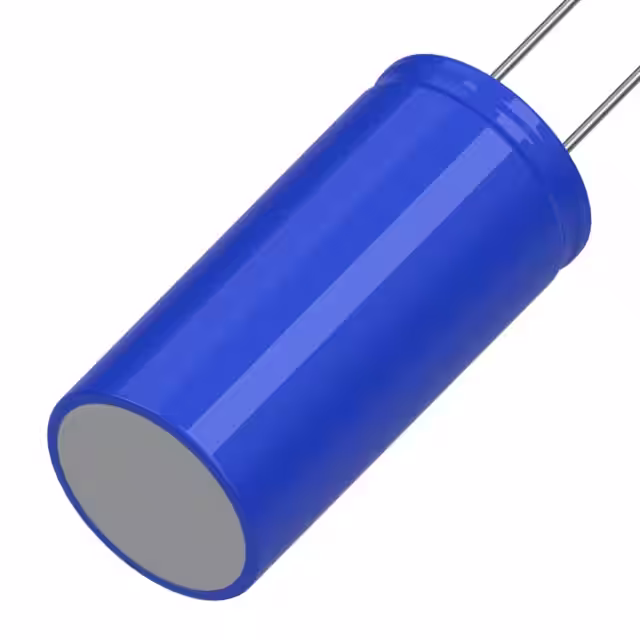

MAL204850472E3CAP ALUM 4700UF 20% 35V RADIAL |
0 |
|
Datasheet |
048 RML | Tape & Box (TB) | Active | 4700 µF | ±20% | 35 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.95 A @ 100 Hz | - | 34 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
LKS1J472MESBCAP ALUM 4700UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 4700 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole |
