Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TVA1408CAP ALUM 15UF 150V AXIAL TH |
0 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 15 µF | - | 150 V | - | - | - | Polar | - | Audio | - | - | - | - | - | - | - | Through Hole | |
|
MAL225056682E3CAP ALUM 6800UF 20% 25V RADIAL |
0 |
|
Datasheet |
250 RMI-V | Box | Active | 6800 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio, Automotive | 2.66 A @ 100 Hz | 3.5 A @ 100 kHz | 18 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
|
MAL225051332E3CAP ALUM 3300UF 20% 50V RADIAL |
0 |
|
Datasheet |
250 RMI-V | Box | Active | 3300 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio, Automotive | 2.432 A @ 100 Hz | 3.2 A @ 100 kHz | 24 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
|
MAL225058222E3CAP ALUM 2200UF 20% 63V RADIAL |
0 |
|
Datasheet |
250 RMI-V | Box | Active | 2200 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio, Automotive | 2.356 A @ 100 Hz | 3.1 A @ 100 kHz | 33 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
MAL225050472E3CAP ALUM 4700UF 20% 35V RADIAL |
0 |
|
Datasheet |
250 RMI-V | Box | Active | 4700 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio, Automotive | 2.508 A @ 100 Hz | 3.3 A @ 100 kHz | 18 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|

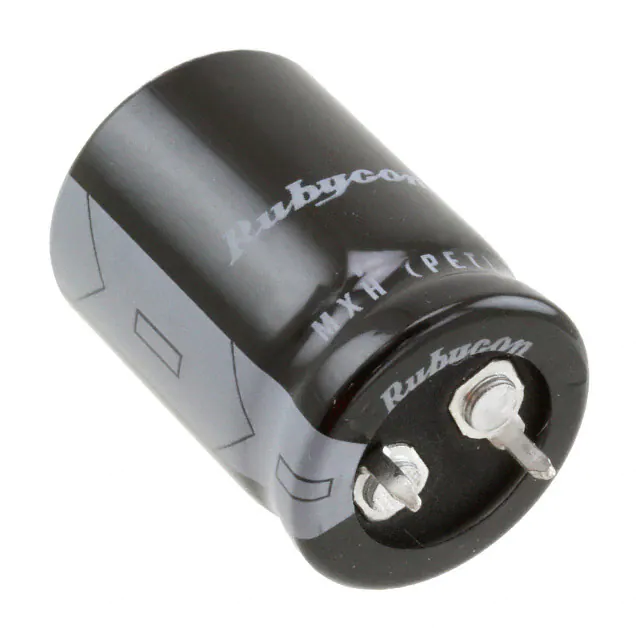

400MXH150MEFCSN20X30CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 150 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
381LX122M100K012CAP ALUM 1200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 1200 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.7 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
381LX681M200J032CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 680 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.4 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43634A9227M000CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
- |
B43634 | Bulk | Active | 220 µF | ±20% | 400 V | 490mOhm @ 100Hz | 8000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.52 A @ 100 Hz | - | 740 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
400BXW150MEFR16X45CAP ALUM 150UF 20% 400V RADIAL |
0 |
|
Datasheet |
BXW | Bulk | Active | 150 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 2.138 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
LSG331M2V---3530SCAP ALUM 350V POLAR |
0 |
|
- |
LSG | Active | 330 µF | ±20% | 350 V | 603mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.21 A @ 120 Hz | 1.7303 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | ||
|
|
LSG102M2D---3040SCAP ALUM 200V POLAR |
0 |
|
- |
LSG | Active | 1 mF | ±20% | 200 V | 199mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.06 A @ 120 Hz | 3.09 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|

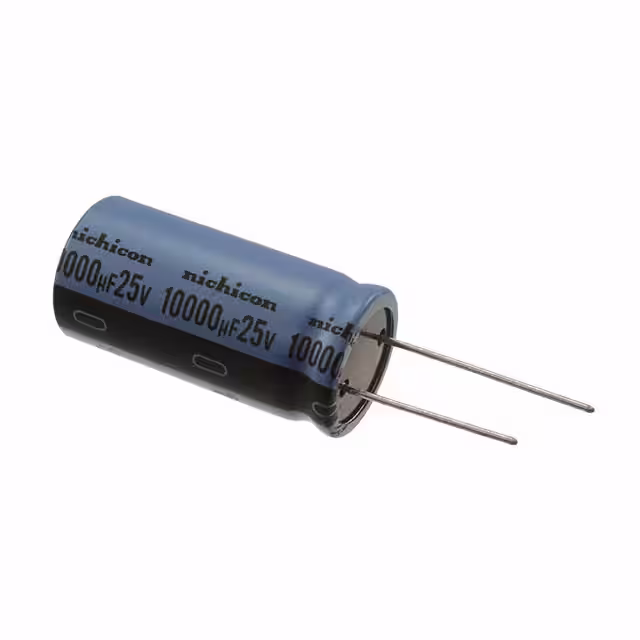

UKT1E103MRDCAP ALUM 10000UF 20% 25V RADIAL |
0 |
|
Datasheet |
UKT | Bulk | Obsolete | 10000 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 2.15 A @ 120 Hz | 2.473 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
LKG1E152MESBCKCAP ALUM 1500UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 1500 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
510D105M063AA3DCAP ALUM 1UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
510D | Bulk | Active | 1 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.100" (2.54mm) | 0.256" Dia (6.50mm) | 0.597" (15.16mm) | - | Through Hole | |
|
|
510D106M035AA4DCAP ALUM 10UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
510D | Bulk | Active | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.100" (2.54mm) | 0.256" Dia (6.50mm) | 0.597" (15.16mm) | - | Through Hole | |
|
|
510D156M025AA3DCAP ALUM 15UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
510D | Bulk | Active | 15 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.100" (2.54mm) | 0.256" Dia (6.50mm) | 0.597" (15.16mm) | - | Through Hole | |
|
|
510D225M063AA3DCAP ALUM 2.2UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
510D | Bulk | Active | 2.2 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.100" (2.54mm) | 0.256" Dia (6.50mm) | 0.597" (15.16mm) | - | Through Hole | |
|
|
510D226M016AA3DCAP ALUM 22UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
510D | Bulk | Active | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.100" (2.54mm) | 0.256" Dia (6.50mm) | 0.597" (15.16mm) | - | Through Hole | |
|
|
510D335M063AA3DCAP ALUM 3.3UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
510D | Bulk | Active | 3.3 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.100" (2.54mm) | 0.256" Dia (6.50mm) | 0.597" (15.16mm) | - | Through Hole |
