Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL215266101E3CAP ALUM 100UF 20% 400V RADIAL |
0 |
|
Datasheet |
152 RMH | Bulk | Active | 100 µF | ±20% | 400 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 380 mA @ 100 Hz | - | 900 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
MAL215267479E3CAP ALUM 47UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
152 RMH | Bulk | Active | 47 µF | ±20% | 450 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 260 mA @ 100 Hz | - | 2 Ohms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|

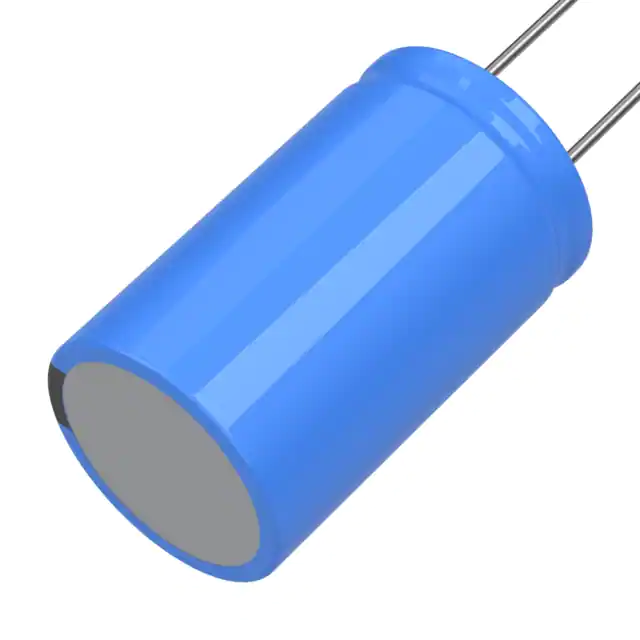

MAL225060472E3CAP ALUM 4700UF 20% 35V RADIAL |
0 |
|
Datasheet |
250 RMI-V | Box | Active | 4700 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio, Automotive | 2.508 A @ 100 Hz | 3.3 A @ 100 kHz | 18 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
MAL225061332E3CAP ALUM 3300UF 20% 50V RADIAL |
0 |
|
Datasheet |
250 RMI-V | Box | Active | 3300 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio, Automotive | 2.432 A @ 100 Hz | 3.2 A @ 100 kHz | 24 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
|
MAL225065822E3CAP ALUM 8200UF 20% 16V RADIAL |
0 |
|
Datasheet |
250 RMI-V | Box | Active | 8200 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio, Automotive | 2.66 A @ 100 Hz | 3.5 A @ 100 kHz | 18 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
|
MAL225068222E3CAP ALUM 2200UF 20% 63V RADIAL |
0 |
|
Datasheet |
250 RMI-V | Box | Active | 2200 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio, Automotive | 2.356 A @ 100 Hz | 3.1 A @ 100 kHz | 33 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
|
MAL225066682E3CAP ALUM 6800UF 20% 25V RADIAL |
0 |
|
Datasheet |
250 RMI-V | Box | Active | 6800 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio, Automotive | 2.66 A @ 100 Hz | 3.5 A @ 100 kHz | 18 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
LKX2E271MESY35CAP ALUM 270UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 270 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.1 A @ 120 Hz | 1.65 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKX2D471MESA30CAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 470 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.48 A @ 120 Hz | 2.22 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LKX2E331MESZ35CAP ALUM 330UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 330 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.2 A @ 120 Hz | 1.8 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKX2E331MESZ25CAP ALUM 330UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 330 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | - | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ELXS251VSN561MQ35SCAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LXS | Bulk | Active | 560 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.79 A @ 120 Hz | 2.685 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.476" (37.50mm) | - | Through Hole | |
|
LSK101M2H---2535SCAP ALUM 500V POLAR |
0 |
|
- |
LSK | Active | 100 µF | ±20% | 500 V | 1.99Ohm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 540 mA @ 120 Hz | 756 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
|
SKA221M050CAP ALUM 220UF 20% 50V AXIAL TH |
0 |
|
Datasheet |
SKA | Bulk | Obsolete | 220 µF | ±20% | 50 V | 670mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 388 mA @ 120 Hz | 446.2 mA @ 1 kHz | - | - | 0.394" Dia x 0.787" L (10.00mm x 20.00mm) | - | - | Through Hole | |
|
B43545A9157M000CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43545 | Tray | Active | 150 µF | ±20% | 400 V | 400mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.04 A @ 100 Hz | - | 550 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
UPW2F221MRDCAP ALUM 220UF 20% 315V RADIAL |
0 |
|
Datasheet |
UPW | Bulk | Obsolete | 220 µF | ±20% | 315 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 540 mA @ 120 Hz | 864 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|

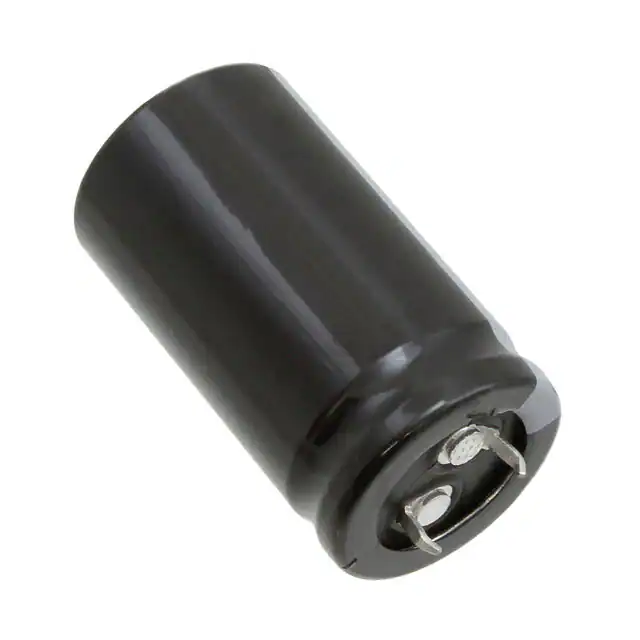

LGU2P681MELACAP ALUM 680UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LGU | Bulk | Active | 680 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.67 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
LKG1E222MESYCKCAP ALUM 2200UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2200 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.85 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
381LX392M063A022CAP ALUM 3900UF 20% 63V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 3900 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
30D206G016BB6ACAP ALUM 20UF 16V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 20 µF | -10%, +75% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.689" L (6.30mm x 17.50mm) | - | - | Through Hole |
