Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50MXC4700MEFC22X45CAP ALUM 4700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 4700 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.43 A @ 120 Hz | 2.7945 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
50VXG2200MEFC22X30CAP ALUM 2200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 2200 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.52 A @ 120 Hz | 1.748 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
450USC180MEFCSN30X30CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 2.03 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LKSA2682MESZCAP ALUM 6800UF 20% 42V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 6800 µF | ±20% | 42 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.9 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
LSM332M2A---3535SCAP ALUM 100V POLAR |
0 |
|
- |
LSM | Active | 3.3 mF | ±20% | 100 V | 80mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.07 A @ 120 Hz | 4.298 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
|
LSG332M2A---3535SCAP ALUM 100V POLAR |
0 |
|
- |
LSG | Active | 3.3 mF | ±20% | 100 V | 80mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.99 A @ 120 Hz | 3.588 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
LASW6101MELA25CAP ALUM 100UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LAS | Bulk | Active | 100 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 793.5 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
SLPX152M200H4P3CAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Obsolete | 1500 µF | ±20% | 200 V | 133mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.26 A @ 120 Hz | 6.26 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
380LQ472M080K022CAP ALUM 4700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Obsolete | 4700 µF | ±20% | 80 V | 71mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.09 A @ 120 Hz | 4.7 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ELXM221VSN561MR30SCAP ALUM 560UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 560 µF | ±20% | 220 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.62 A @ 120 Hz | 2.43 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

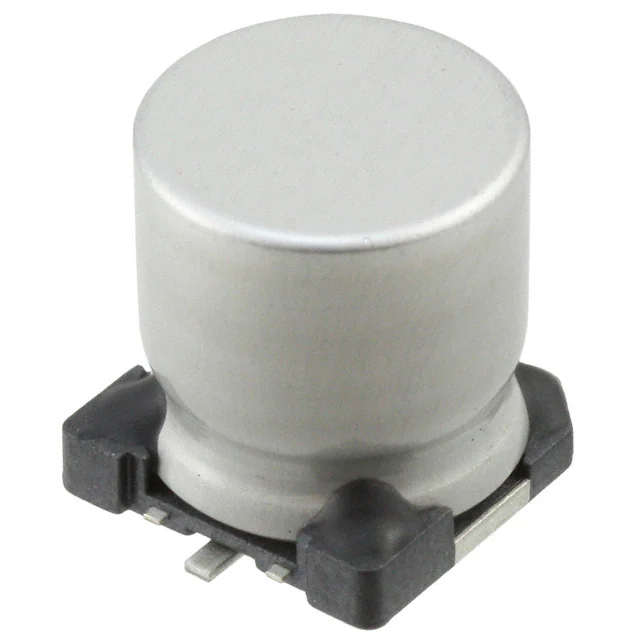

MAL214699005E3CAP ALUM 330UF 20% 35V SMD |
0 |
|
Datasheet |
146 CTI | Tape & Reel (TR) | Active | 330 µF | ±20% | 35 V | - | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 715 mA @ 100 Hz | 1.1 A @ 100 kHz | 75 mOhms | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Surface Mount | |
|
MAL214699706E3CAP ALUM 100UF 20% 80V SMD |
0 |
|
Datasheet |
146 CTI | Tape & Reel (TR) | Active | 100 µF | ±20% | 80 V | - | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 348 mA @ 100 Hz | 580 mA @ 100 kHz | 350 mOhms | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Surface Mount | |
|
450USC180MEFCSN25X35CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.96 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL216065272E3CAP ALUM 2700UF 20% 16V RADIAL |
0 |
|
Datasheet |
160 RLA | Bulk | Active | 2700 µF | ±20% | 16 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | - | - | 25 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
MAL216061102E3CAP ALUM 1000UF 20% 50V RADIAL |
0 |
|
Datasheet |
160 RLA | Bulk | Active | 1000 µF | ±20% | 50 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | - | - | 62 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
MAL209353221E3CAP ALUM 220UF 20% 250V SNAP TH |
0 |
|
Datasheet |
093 PMG-SI | Tape & Box (TB) | Active | 220 µF | ±20% | 250 V | 500mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.18 A @ 120 Hz | - | 320 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UVZ1C223MRDCAP ALUM 22000UF 20% 16V RADIAL |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 22000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 3.45 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
180MXC820MEFCSN30X30CAP ALUM 820UF 20% 180V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 820 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ELG187M450AS3AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.2325 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LQ221M400H042CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 220 µF | ±20% | 400 V | 900mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.49 A @ 120 Hz | 2.09 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole |
