Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLPX681M250C7P3CAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 680 µF | ±20% | 250 V | 293mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.67 A @ 120 Hz | 3.92 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
SLP473M016E9P3CAP ALUM 47000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 47000 µF | ±20% | 16 V | 14mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.27 A @ 120 Hz | 6.59 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
SLPX823M010H9P3CAP ALUM 82000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 82000 µF | ±20% | 10 V | 9mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.5 A @ 120 Hz | 10.63 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
SLP331M315C7P3CAP ALUM 330UF 20% 315V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 330 µF | ±20% | 315 V | 1.005Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.33 A @ 120 Hz | 1.96 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
380LQ392M080K042CAP ALUM 3900UF 20% 80V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 3900 µF | ±20% | 80 V | 85mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.59 A @ 120 Hz | 4.13 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGN2W221MESB30CAPACITOR |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
ALP22A102AB100CAP ALUM 1000UF 20% 100V SLD LUG |
0 |
|
Datasheet |
ALP22 | Box | Active | 1000 µF | ±20% | 100 V | - | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LLS2W181MELBCAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 2.0735 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
LGU1V103MESBCAPACITOR |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

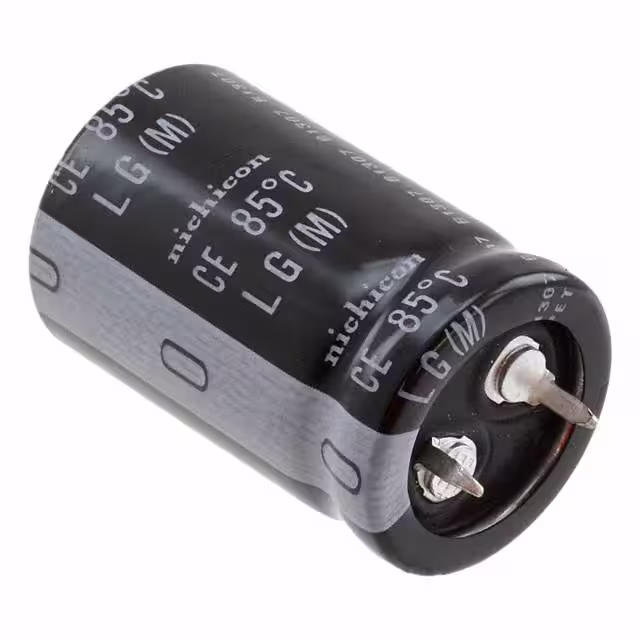

LLG2W181MELZ35CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.859 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LLS2E821MELBCAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 820 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.98 A @ 120 Hz | 4.47 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
200MXC220MEFCSN22X25CAP ALUM 220UF 20% 200V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 220 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EKMS251VSN561MP45SCAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 560 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.79 A @ 120 Hz | 2.685 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
ELXM351VSN221MR30SCAP ALUM 220UF 20% 350V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 220 µF | ±20% | 350 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.11 A @ 120 Hz | 1.5873 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL204248159E3CAP ALUM 15UF 385V AXIAL TH |
0 |
|
Datasheet |
042 ASH | Tape & Box (TB) | Active | 15 µF | -10%, +50% | 385 V | 10Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 210 mA @ 100 Hz | - | 6 Ohms | 0.689" (17.50mm) | 0.591" Dia (15.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
ALC80A392BB040CAP ALUM 3900UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 3900 µF | ±20% | 40 V | 134mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.26 A @ 100 Hz | 4.52 A @ 10 kHz | 108 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80D392BB040CAP ALUM 3900UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 3900 µF | ±20% | 40 V | 134mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.26 A @ 100 Hz | 4.52 A @ 10 kHz | 108 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LSM331M2V---3035SCAP ALUM 350V POLAR |
0 |
|
- |
LSM | Active | 330 µF | ±20% | 350 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.24 A @ 120 Hz | 1.736 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
380LQ271M400J032CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Obsolete | 270 µF | ±20% | 400 V | 737mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.67 A @ 120 Hz | 2.34 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
10VXG18000MEFC22X45CAP ALUM 18000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 18000 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 2.76 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole |
