Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LKG1H392MESBBKCAP ALUM 3900UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 3900 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKG1J272MESBAKCAP ALUM 2700UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2700 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.5 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

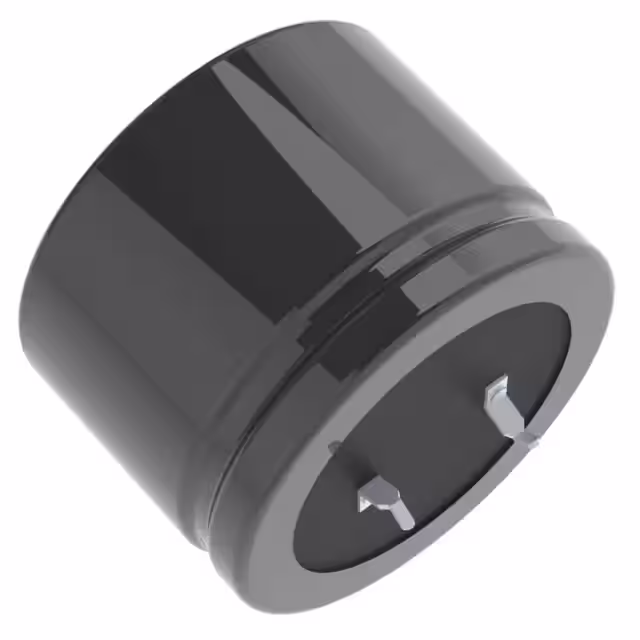

LKG2A821MESBAKCAP ALUM 820UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 820 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.9 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
25USC22000MEFCSN30X35CAP ALUM 22000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 22000 µF | ±20% | 25 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.19 A @ 120 Hz | 5.9685 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LSM271M2G---3530SCAP ALUM 400V POLAR |
0 |
|
- |
LSM | Active | 270 µF | ±20% | 400 V | 737mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.31 A @ 120 Hz | 1.834 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | ||
|
EKMS201VSN821MR25SCAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 820 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.26 A @ 120 Hz | 3.39 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
10MXC27000MEFCSN30X30CAP ALUM 27000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 27000 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.95 A @ 120 Hz | 3.3925 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LKL(R) J4001H362MFTMCAP ALUM 50V POLAR |
20 |
|
Datasheet |
LKL(R) | Case | Active | 3.6 mF | ±20% | 50 V | - | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 3.7 A @ 100 kHz | 30 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
PK2W151MND2530RYCAP ALUM 150UF 20% 450V SNAP TH |
17 |
|
Datasheet |
PK | Bulk | Active | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.573 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LSK271M2G---3035SCAP ALUM 400V POLAR |
0 |
|
- |
LSK | Active | 270 µF | ±20% | 400 V | 737mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.06 A @ 120 Hz | 1.484 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
MAL213849221E3CAP ALUM 220UF 20% 100V SNAP TH |
0 |
|
Datasheet |
138 AML | Tape & Reel (TR) | Active | 220 µF | ±20% | 100 V | 540mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 650 mA @ 100 Hz | - | 330 mOhms | - | 0.591" Dia (15.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
|
PEH536YAF3100M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 100 µF | ±20% | 450 V | 720mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 100 Hz | 5.4 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
AFK227M2AR44VT-FCAP ALUM 220UF 20% 100V SMD |
0 |
|
Datasheet |
AFK_V | Tape & Reel (TR) | Active | 220 µF | ±20% | 100 V | 150mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 687.75 mA @ 120 Hz | - | 150 mOhms | - | 0.709" Dia (18.00mm) | 0.681" (17.30mm) | 0.748" L x 0.827" W (19.00mm x 21.00mm) | Surface Mount | |
|
|
AFK687M63R44VT-FCAP ALUM 680UF 20% 63V SMD |
0 |
|
Datasheet |
AFK_V | Tape & Reel (TR) | Active | 680 µF | ±20% | 63 V | 80mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 1.268 A @ 120 Hz | - | 80 mOhms | - | 0.709" Dia (18.00mm) | 0.681" (17.30mm) | 0.748" L x 0.827" W (19.00mm x 21.00mm) | Surface Mount | |
|
|
LSG152M2C---3045SCAP ALUM 160V POLAR |
0 |
|
- |
LSG | Active | 1.5 mF | ±20% | 160 V | 133mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.82 A @ 120 Hz | 4.23 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
|
LSK821M2D---3040SCAP ALUM 200V POLAR |
0 |
|
- |
LSK | Active | 820 µF | ±20% | 200 V | 243mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|

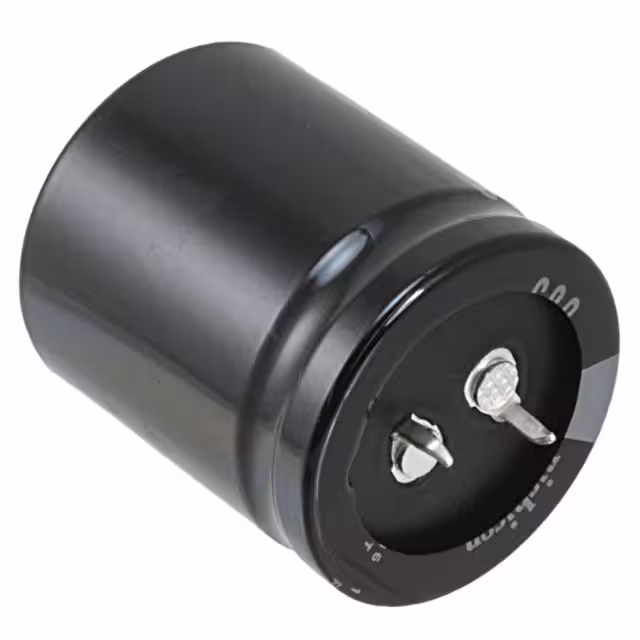

LGR2E561MELB35CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LGR | Bulk | Active | 560 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.25 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
200MXC820MEFCSN25X40CAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 820 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | 2.925 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
450VXR100MEFCSN25X40CAP ALUM 100UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 100 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 896 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80A131BB350CAP ALUM 130UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 130 µF | ±20% | 350 V | 1.048Ohm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 100 Hz | 2.62 A @ 10 kHz | 549 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole |
