Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGJ2E271MELC15CAP ALUM 270UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LGJ | Bulk | Active | 270 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.5 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
LSG122M2D---3045SCAP ALUM 200V POLAR |
0 |
|
- |
LSG | Active | 1.2 mF | ±20% | 200 V | 166mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.37 A @ 120 Hz | 3.555 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|

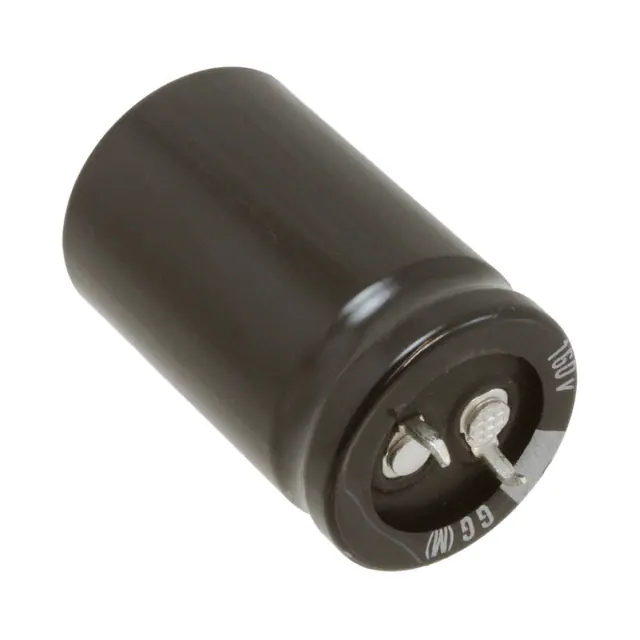

LGG2P821MELA40CAP ALUM 820UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LGG | Bulk | Active | 820 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.93 A @ 120 Hz | 2.895 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B41505A0228M000CAP ALUM 2200UF 20% 80V SNAP TH |
0 |
|
Datasheet |
B41505 | Bulk | Not For New Designs | 2200 µF | ±20% | 80 V | 56mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | 60 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL226066152E3CAP ALUM 1500UF 20% 25V RADIAL |
0 |
|
- |
260 RLA-V | Box | Active | 1500 µF | ±20% | 25 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.12 A @ 100 Hz | 1.6 A @ 100 kHz | 25 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
MAL226065272E3CAP ALUM 2700UF 20% 16V RADIAL |
0 |
|
- |
260 RLA-V | Box | Active | 2700 µF | ±20% | 16 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.12 A @ 100 Hz | 1.6 A @ 100 kHz | 25 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
MAL226061102E3CAP ALUM 1000UF 20% 50V RADIAL |
0 |
|
- |
260 RLA-V | Box | Active | 1000 µF | ±20% | 50 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 500 mA @ 100 Hz | 1 A @ 100 kHz | 62 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
LGJ2E271MELBCAP ALUM 270UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LGJ | Bulk | Active | 270 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.56 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|

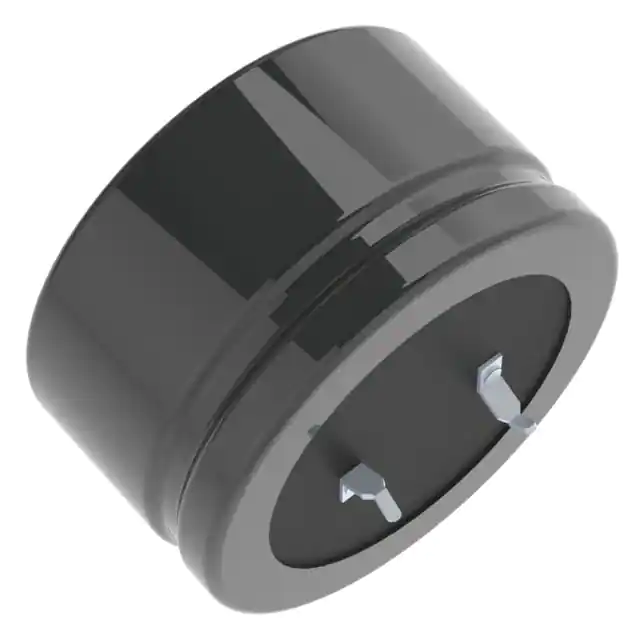

LGJ2G680MELB15CAP ALUM 68UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LGJ | Bulk | Active | 68 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 450 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
|
ALC70A560BB630CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ALC70 | Box | Active | 56 µF | ±20% | 630 V | 2.331Ohm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 750 mA @ 100 Hz | 1.65 A @ 10 kHz | 1.604 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
B43547A6107M007CAP ALUM 100UF 20% 500V SNAP TH |
0 |
|
Datasheet |
B43547 | Bulk | Active | 100 µF | ±20% | 500 V | 630mOhm @ 100Hz | 8000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 770 mA @ 100 Hz | - | 840 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ERLA201LIN901KR35MCAP ALUM 900UF 10% 200V SNAP TH |
0 |
|
Datasheet |
RLA | Bulk | Active | 900 µF | ±10% | 200 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.66 A @ 120 Hz | 6.99 A @ 50 kHz | - | 0.559" (14.20mm) | 1.181" Dia (30.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
LGY1E183MELB40CAP ALUM 18000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LGY | Bulk | Active | 18000 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 3.565 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
SLP473M016H4P3CAP ALUM 47000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 47000 µF | ±20% | 16 V | 14mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 6.88 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
SLPX152M180E7P3CAP ALUM 1500UF 20% 180V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 1500 µF | ±20% | 180 V | 133mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.1 A @ 120 Hz | 6.03 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
SLPX332M100H5P3CAP ALUM 3300UF 20% 100V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 3300 µF | ±20% | 100 V | 80mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.07 A @ 120 Hz | 5.09 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
SLP151M450A4P3CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 150 µF | ±20% | 450 V | 2.212Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.29 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
380LQ183M035K452CAP ALUM 18000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 18000 µF | ±20% | 35 V | 32mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.68 A @ 120 Hz | 6.53 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
381LQ682M063K042CAP ALUM 6800UF 20% 63V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 6800 µF | ±20% | 63 V | 49mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.14 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
381LX471M250J032CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 470 µF | ±20% | 250 V | 423mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole |
