Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC80D131BB350CAP ALUM 130UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 130 µF | ±20% | 350 V | 1.048Ohm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 100 Hz | 2.62 A @ 10 kHz | 549 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80D331BB200CAP ALUM 330UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 330 µF | ±20% | 200 V | 645mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.31 A @ 100 Hz | 2.85 A @ 10 kHz | 388 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC80F131BB350CAP ALUM 130UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 130 µF | ±20% | 350 V | 1.048Ohm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 100 Hz | 2.62 A @ 10 kHz | 549 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80F331BB200CAP ALUM 330UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 330 µF | ±20% | 200 V | 645mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.31 A @ 100 Hz | 2.85 A @ 10 kHz | 388 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B41789L8757Q001ALUMINIUM ELECTROLYTIC AXIAL 63V |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
450HXG150MEFCSN35X25CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
HXG | Bulk | Active | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

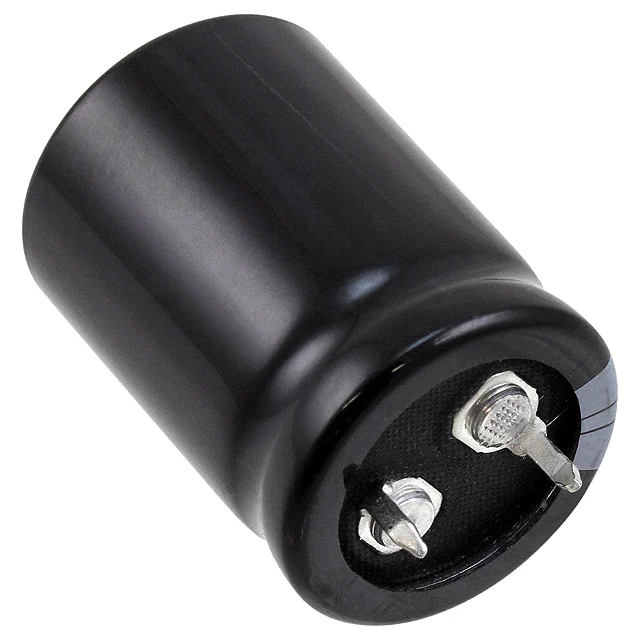

400HXG180MEFC22X35CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
HXG | Bulk | Active | 180 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
420USG270MEFC25X35CAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 270 µF | ±20% | 420 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.94 A @ 120 Hz | 2.716 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
450HXG150MEFC22X40CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
HXG | Bulk | Active | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 2.24 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
450USH330MEFC25X40CAP ALUM 330UF 20% 450V RADIAL |
0 |
|
Datasheet |
USH | Bulk | Active | 330 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.22 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
450VXG150MEFC25X30CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 150 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.526 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
50VXG4700MEFC30X30CAP ALUM 4700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 4700 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.22 A @ 120 Hz | 2.553 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
80VXG4700MEFC35X45CAP ALUM 4700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 4700 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.44 A @ 120 Hz | 3.956 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
B43654A5157M060CAP ALUM 450V POLAR |
0 |
|
Datasheet |
B43654 | Bulk | Active | 150 µF | ±20% | 450 V | 680mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 940 mA @ 100 Hz | - | 1.02 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LKG1C472MESACKCAP ALUM 4700UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 4700 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.7 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
LSK561M2E---3035SCAP ALUM 250V POLAR |
0 |
|
- |
LSK | Active | 560 µF | ±20% | 250 V | 355mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.25 A @ 120 Hz | 1.75 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
200HXC470MEFCSN22X40CAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 470 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.41 A @ 120 Hz | 3.615 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
380LX153M016A202CAP ALUM 15000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 15000 µF | ±20% | 16 V | 55mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 3.7 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
380LX391M350K452CAP ALUM 390UF 20% 350V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 390 µF | ±20% | 350 V | 510mOhm | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
381LX471M250J042CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 470 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole |
