Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL214099811E3CAP ALUM 100UF 20% 63V SMD |
0 |
|
Datasheet |
140 CRH | Tape & Reel (TR) | Active | 100 µF | ±20% | 63 V | - | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | 500 mA @ 100 kHz | 250 mOhms | - | 0.492" Dia (12.50mm) | 0.512" (13.00mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Surface Mount | |
|

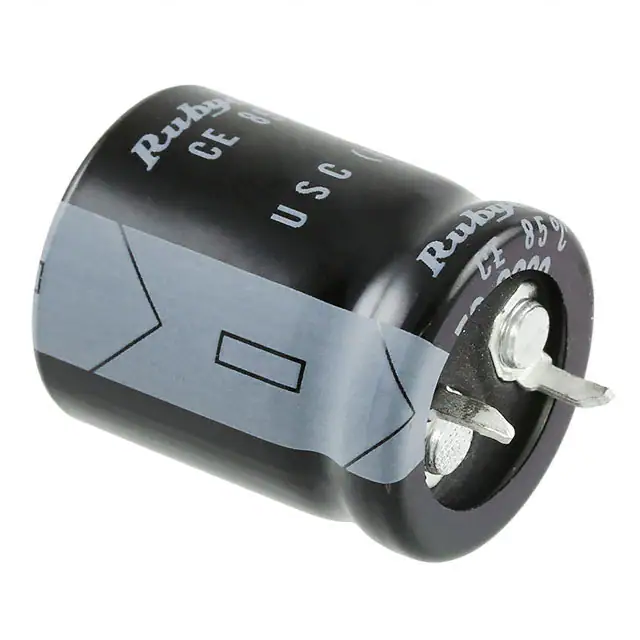

400USC68MEFCSN22X25CAP ALUM 68UF 20% 400V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 68 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
630D226M025BB2TCAP ALUM 22UF 20% 25V AXIAL TH |
0 |
|
Datasheet |
630D | Bulk | Active | 22 µF | ±20% | 25 V | - | - | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.689" L (6.30mm x 17.50mm) | - | - | Through Hole | |
|
MAL214656562E3CAP ALUM 5600UF 20% 25V RADIAL |
0 |
|
Datasheet |
146 RTI | Bulk | Active | 5600 µF | ±20% | 25 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3.1 A @ 100 kHz | 19 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
PEH534MBC4220M2CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH534 | Box | Active | 2.2 mF | ±20% | 63 V | 92mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 100 Hz | 6.9 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LGN2D102MESB30CAPACITOR |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
381LX122M160K042CAP ALUM 1200UF 20% 160V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 1200 µF | ±20% | 160 V | 166mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.2 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
381LX151M450H052CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.1 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC80A111BB400CAP ALUM 110UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 110 µF | ±20% | 400 V | 1.106Ohm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 100 Hz | 2.62 A @ 10 kHz | 567 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80D111BB400CAP ALUM 110UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 110 µF | ±20% | 400 V | 1.106Ohm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 100 Hz | 2.62 A @ 10 kHz | 567 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC80F111BB400CAP ALUM 110UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 110 µF | ±20% | 400 V | 1.106Ohm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 100 Hz | 2.62 A @ 10 kHz | 567 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LSG821M2E---3045SCAP ALUM 250V POLAR |
0 |
|
- |
LSG | Active | 820 µF | ±20% | 250 V | 243mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
EKMS251VSN561MR25SCAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 560 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.87 A @ 120 Hz | 2.805 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
MAL209446121E3CAP ALUM 120UF 20% 400V SNAP TH |
0 |
|
Datasheet |
094 PME-SI | Tape & Box (TB) | Active | 120 µF | ±20% | 400 V | 1.17Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | - | 890 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL209456121E3CAP ALUM 120UF 20% 400V SNAP TH |
0 |
|
Datasheet |
094 PME-SI | Tape & Box (TB) | Active | 120 µF | ±20% | 400 V | 1.16Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | - | 870 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ELXS161VSN152MQ45SCAP ALUM 1500UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LXS | Bulk | Active | 1500 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.05 A @ 120 Hz | 4.575 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.870" (47.50mm) | - | Through Hole | |
|
SLPX391M315C7P3CAP ALUM 390UF 20% 315V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 390 µF | ±20% | 315 V | 510mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.11 A @ 120 Hz | 3.1 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
381LX151M420H042CAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 150 µF | ±20% | 420 V | 1.33Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
381LX271M315J032CAP ALUM 270UF 20% 315V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 270 µF | ±20% | 315 V | 740mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKG1C472MESZCKCAP ALUM 4700UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 4700 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.75 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole |
