Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
277LMH350M2BFCAP ALUM 270UF 20% 350V SNAP TH |
0 |
|
Datasheet |
LMH | Bulk | Active | 270 µF | ±20% | 350 V | 921.04mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.617 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL225913331E3CAP ALUM 330UF 20% 250V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 330 µF | ±20% | 250 V | 290mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.82 A @ 100 Hz | 2.73 A @ 10 kHz | 170 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKG1H122MESCCKCAP ALUM 1200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 1200 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.9 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
381LR471M250H452CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
381LR | Bulk | Obsolete | 470 µF | ±20% | 250 V | 317mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 2.64 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
228LBB100M2DDCAP ALUM 2200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LBB | Bulk | Active | 2200 µF | ±20% | 100 V | 113.04mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.09 A @ 120 Hz | 3.8625 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
128LBB160M2DECAP ALUM 1200UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LBB | Bulk | Active | 1200 µF | ±20% | 160 V | 138.16mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.48 A @ 120 Hz | 5.1156 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EMVY630GRA331MLH0SCAP ALUM 330UF 20% 63V SMD |
0 |
|
Datasheet |
Alchip™- MVY | Tape & Reel (TR) | Active | 330 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 422.5 mA @ 120 Hz | 845 mA @ 100 kHz | 120 mOhms | - | 0.630" Dia (16.00mm) | 0.650" (16.50mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
MAL217250122E3CAP ALUM 820UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
172 RLX | Bulk | Active | 820 µF | ±20% | 35 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.08 A @ 100 Hz | 3.2 A @ 100 kHz | 19 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ELXM221VSN681MQ45SCAP ALUM 680UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 680 µF | ±20% | 220 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.87 A @ 120 Hz | 2.805 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ELXM451VSN151MQ40SCAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 150 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 940 mA @ 120 Hz | 1.3442 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.654" (42.00mm) | - | Through Hole | |
|
200USG680MEFCSN20X40CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 680 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.68 A @ 120 Hz | 4.02 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
250MXG560MEFCSN22X45CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 560 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.16 A @ 120 Hz | 3.24 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

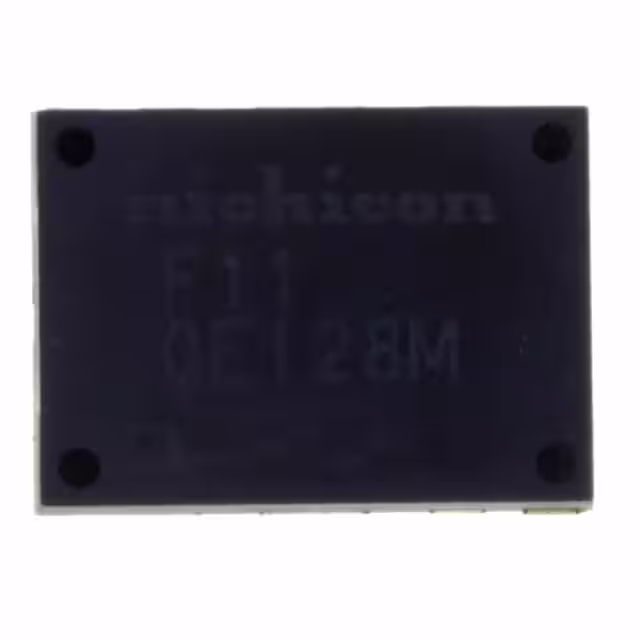

F110E128MFKCAP ALUM 1200UF 20% 2.5V SMD |
0 |
|
Datasheet |
F11 | Tape & Reel (TR) | Obsolete | 1200 µF | ±20% | 2.5 V | 5mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 6.3 A @ 100 kHz | - | - | 0.658" L x 0.477" W (16.70mm x 12.10mm) | 0.098" (2.50mm) | 0.657" L x 0.476" W (16.70mm x 12.10mm) | Surface Mount | |
|

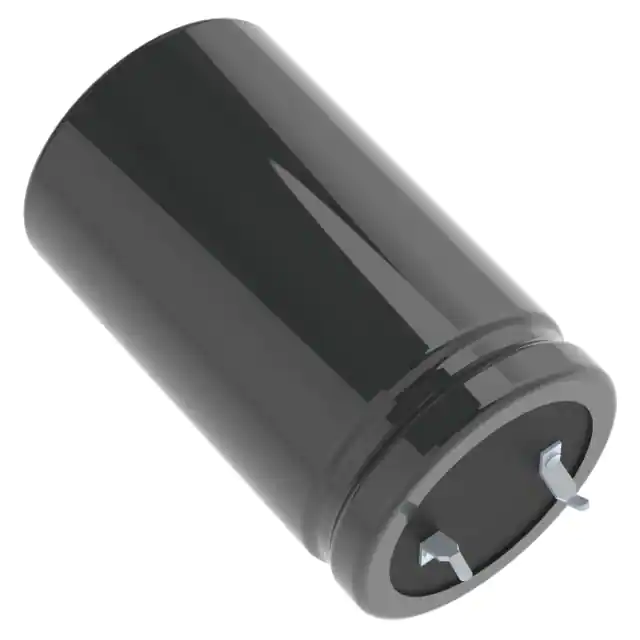

LAS2G151MELZ35CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAS | Bulk | Active | 150 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.012 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ESMH101VNN682MA50UCAP ALUM 6800UF 20% 100V SNAP TH |
0 |
|
- |
SMH | Bulk | Obsolete | 6800 µF | ±20% | 100 V | 37mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | - | 6.5 A @ 120 Hz | 7.8 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
381LX181M400J022CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 180 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
380LX331M315J042CAP ALUM 330UF 20% 315V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 330 µF | ±20% | 315 V | 600mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.82 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGU2P681MELCCAP ALUM 680UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LGU | Bulk | Active | 680 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.67 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
250MXC390MEFC30X25CAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 390 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.49 A @ 120 Hz | 2.235 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
400SXG180MEFC30X25CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SXG | Bulk | Active | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.33 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole |
