Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
250VXG560MEFC22X50CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 560 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.29 A @ 120 Hz | 3.435 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
450USG220MEFC22X45CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 220 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.66 A @ 120 Hz | 2.324 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LKS1V682MESCCAP ALUM 6800UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 6800 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.5 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|

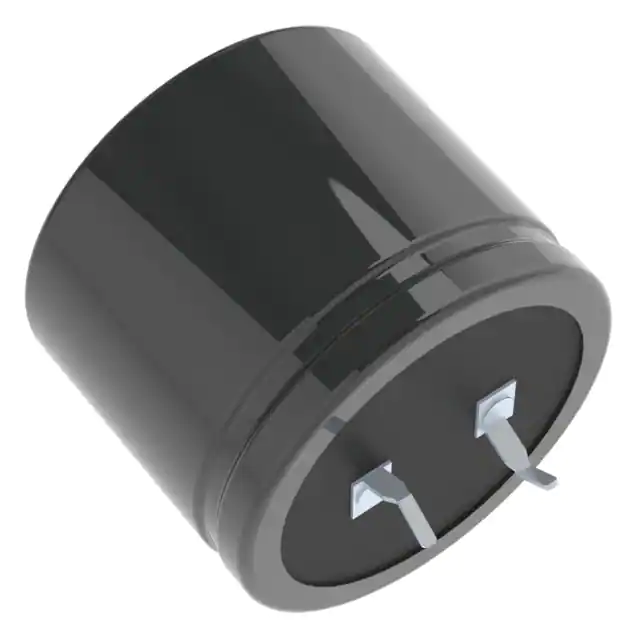

LKS1V822MESBCAP ALUM 8200UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 8200 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.7 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
LKS1H392MESCCAP ALUM 3900UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 3900 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|

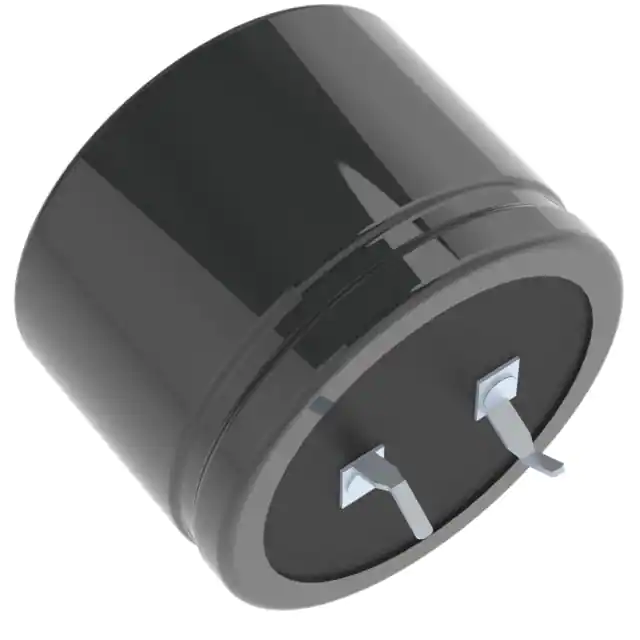

LKS2A102MESBCAP ALUM 1000UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 1000 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.95 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
LKSA2472MESCCAP ALUM 4700UF 20% 42V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 4700 µF | ±20% | 42 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.5 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
LKSA2562MESBCAP ALUM 5600UF 20% 42V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 5600 µF | ±20% | 42 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.7 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
LKSN2332MESCCAP ALUM 3300UF 20% 56V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 3300 µF | ±20% | 56 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.35 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
LSK331M2G---2550SCAP ALUM 400V POLAR |
0 |
|
- |
LSK | Active | 330 µF | ±20% | 400 V | 603mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | 1.722 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
|
B43548B9187M060CAP ALUM 400V POLAR |
0 |
|
Datasheet |
B43548 | Bulk | Active | 180 µF | ±20% | 400 V | 480mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | 710 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LGUW6181MELBCAP ALUM 180UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LGU | Bulk | Active | 180 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.3585 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
MAL224699608E3CAP ALUM 2200UF 20% 25V SMD |
0 |
|
Datasheet |
246 CTI-V | Box | Active | 2200 µF | ±20% | 25 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.05 A @ 100 Hz | 1.5 A @ 100 kHz | 50 mOhms | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
MAL224699909E3CAP ALUM 220UF 20% 100V SMD |
0 |
|
Datasheet |
246 CTI-V | Box | Active | 220 µF | ±20% | 100 V | - | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 390 mA @ 100 Hz | 650 mA @ 100 kHz | 300 mOhms | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
MAL224699009E3CAP ALUM 1200UF 20% 35V SMD |
0 |
|
Datasheet |
246 CTI-V | Box | Active | 1200 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 975 mA @ 100 Hz | 1.5 A @ 100 kHz | 50 mOhms | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
MAL224699508E3CAP ALUM 3300UF 20% 16V SMD |
0 |
|
Datasheet |
246 CTI-V | Box | Active | 3300 µF | ±20% | 16 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.05 A @ 100 Hz | 1.5 A @ 100 kHz | 50 mOhms | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
MAL224699112E3CAP ALUM 1000UF 20% 50V SMD |
0 |
|
Datasheet |
246 CTI-V | Box | Active | 1000 µF | ±20% | 50 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 780 mA @ 100 Hz | 1.3 A @ 100 kHz | 70 mOhms | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|

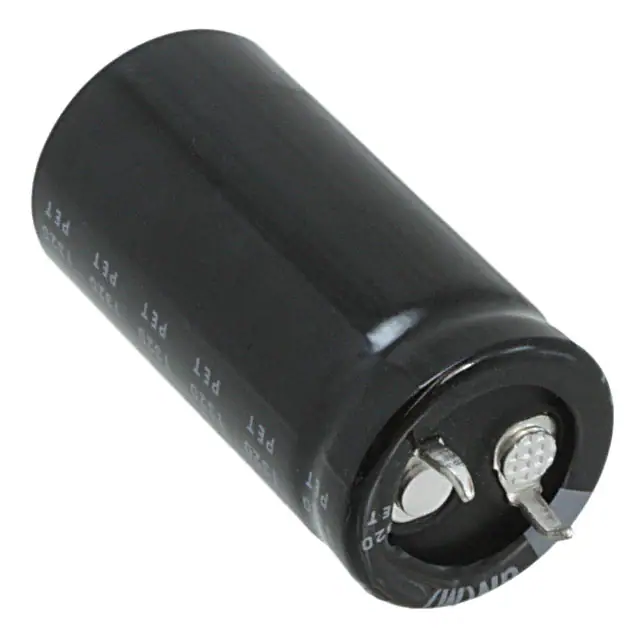

LKX2E331MESY40CAP ALUM 330UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 330 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.2 A @ 120 Hz | 1.8 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL211914222E3CAP ALUM 2200UF 10V AXIAL TH |
0 |
|
Datasheet |
119 AHT-DIN | Tape & Reel (TR) | Active | 2200 µF | -10%, +50% | 10 V | 190mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 1.19 A @ 100 Hz | - | 170 mOhms | - | 0.709" Dia x 1.181" L (18.00mm x 30.00mm) | - | - | Through Hole | |
|
MAL214099012E3CAP ALUM 330UF 20% 35V SMD |
0 |
|
Datasheet |
140 CRH | Tape & Reel (TR) | Active | 330 µF | ±20% | 35 V | - | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | 750 mA @ 100 kHz | 120 mOhms | - | 0.492" Dia (12.50mm) | 0.512" (13.00mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Surface Mount |
