Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSG472M1K---3050SCAP ALUM 80V POLAR |
0 |
|
- |
LSG | Active | 4.7 mF | ±20% | 80 V | 71mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.97 A @ 120 Hz | 3.564 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
MAL225742561E3CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 560 µF | ±20% | 200 V | 280mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.06 A @ 100 Hz | 2.884 A @ 10 kHz | 200 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL225762561E3CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 560 µF | ±20% | 200 V | 260mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.13 A @ 100 Hz | 2.982 A @ 10 kHz | 190 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL225782561E3CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 560 µF | ±20% | 200 V | 310mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.99 A @ 100 Hz | 2.786 A @ 10 kHz | 230 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL225732561E3CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 560 µF | ±20% | 200 V | 310mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.99 A @ 100 Hz | 2.786 A @ 10 kHz | 230 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL225752561E3CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 560 µF | ±20% | 200 V | 260mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.13 A @ 100 Hz | 2.982 A @ 10 kHz | 190 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL225772561E3CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 560 µF | ±20% | 200 V | 280mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.06 A @ 100 Hz | 2.884 A @ 10 kHz | 200 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
400MXH270MEFCSN25X35CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 270 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.49 A @ 120 Hz | 2.086 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B41252B398MCAP ALUM 3900UF 20% 80V SNAP TH |
0 |
|
Datasheet |
B41252 | Bulk | Active | 3900 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
GM2E821MND2545CAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
GM | Active | 820 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.485 A @ 120 Hz | 3.728 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
|
ELG108M200AS5AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 1 mF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LKS1K272MESYCAP ALUM 2700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 2700 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.7 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LKS1K272MESZCAP ALUM 2700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 2700 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.7 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LKS2A152MESYCAP ALUM 1500UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 1500 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.45 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

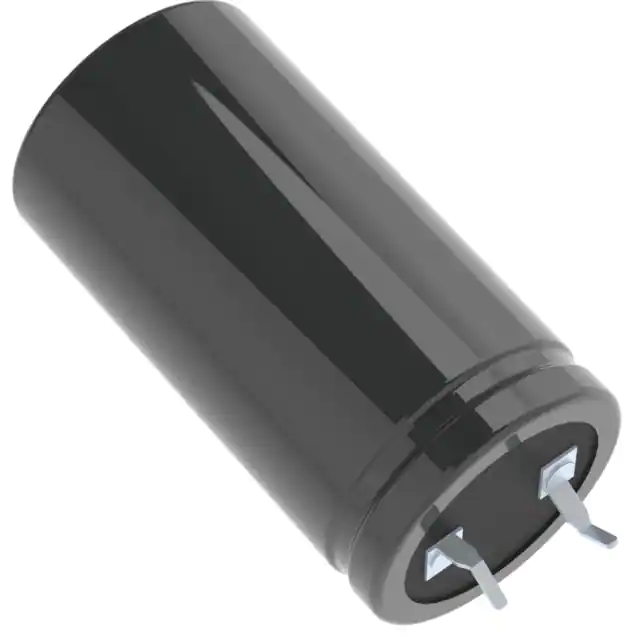

LKS2A152MESZCAP ALUM 1500UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 1500 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.45 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LKSN2562MESZCAP ALUM 5600UF 20% 56V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 5600 µF | ±20% | 56 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
B43641B0227M052CAP ALUM 420V POLAR |
0 |
|
Datasheet |
B43641 | Bulk | Active | 220 µF | ±20% | 420 V | 540mOhm @ 100Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.15 A @ 100 Hz | - | 840 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL212017681E3CAP ALUM 680UF 20% 40V AXIAL TH |
0 |
|
Datasheet |
120 ATC | Bulk | Active | 680 µF | ±20% | 40 V | 75mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.84 A @ 10 kHz | 55 mOhms | - | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole | |
|
|
500MXH120EFCSN22X40CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 120 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.03 A @ 120 Hz | 1.442 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
380LX222M100J042CAP ALUM 2200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 2200 µF | ±20% | 100 V | 121mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.14 A @ 120 Hz | 3.61 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole |
