Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LKX2D681MESZ45CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 680 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.75 A @ 120 Hz | 2.625 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LKX2E391MESY45CAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 390 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.3 A @ 120 Hz | 1.95 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LKX2E391MESZ40CAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 390 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.3 A @ 120 Hz | 1.95 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LKX2G181MESY50CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 950 mA @ 120 Hz | 1.3585 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

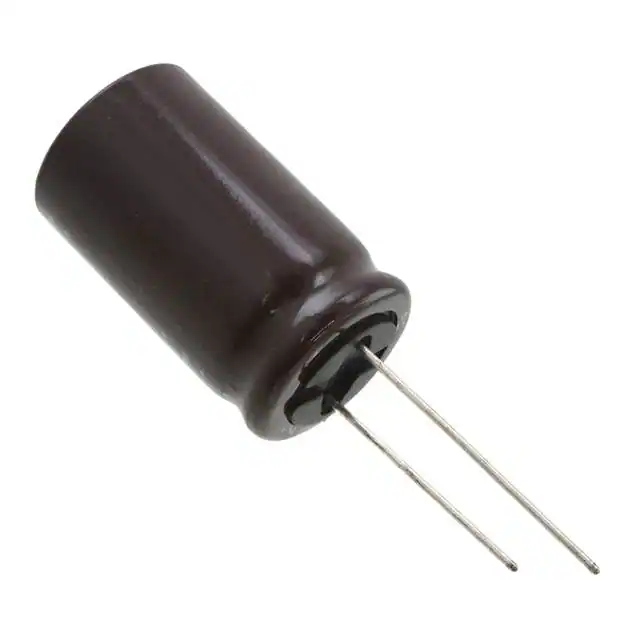

UCA2D221MHDCAP ALUM 220UF 20% 200V RADIAL |
12 |
|
Datasheet |
UCA | Bulk | Obsolete | 220 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.7 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
EKMG201ELL221MMP1SCAP ALUM 220UF 20% 200V RADIAL |
0 |
|
Datasheet |
KMG | Bulk | Discontinued at Digi-Key | 220 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 575 mA @ 120 Hz | 862.5 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

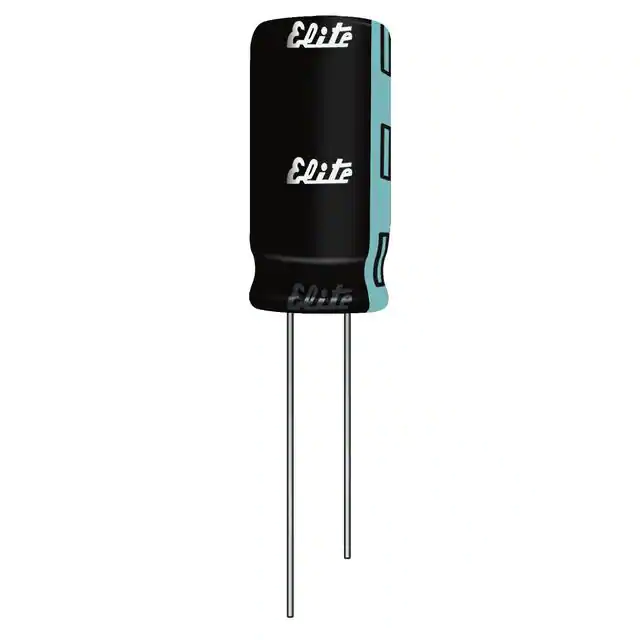

PJ2W151MRT1845CAP ALUM 150UF 20% 450V RADIAL |
0 |
|
Datasheet |
PJ | Active | 150 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.5 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.831" (46.50mm) | - | Through Hole | ||
|
LSM122M2D---3045SCAP ALUM 200V POLAR |
0 |
|
- |
LSM | Active | 1.2 mF | ±20% | 200 V | 111mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 4.2 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
|
510D107M035CC4DCAP ALUM 100UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
510D | Bulk | Active | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.200" (5.08mm) | 0.414" Dia (10.52mm) | 0.650" (16.50mm) | - | Through Hole | |
|
|
510D156M063CC3DCAP ALUM 15UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
510D | Bulk | Active | 15 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.200" (5.08mm) | 0.414" Dia (10.52mm) | 0.650" (16.50mm) | - | Through Hole | |
|
|
510D157M6R3CC3DCAP ALUM 150UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
510D | Bulk | Active | 150 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.200" (5.08mm) | 0.414" Dia (10.52mm) | 0.650" (16.50mm) | - | Through Hole | |
|
|
510D226M050CC3DCAP ALUM 22UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
510D | Bulk | Active | 22 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.200" (5.08mm) | 0.414" Dia (10.52mm) | 0.650" (16.50mm) | - | Through Hole | |
|
|
510D476M035CC5DCAP ALUM 47UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
510D | Bulk | Active | 47 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.200" (5.08mm) | 0.414" Dia (10.52mm) | 0.650" (16.50mm) | - | Through Hole | |
|
|
510DX107M025CC2DCAP ALUM 100UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
510DX | Bulk | Active | 100 µF | ±20% | 25 V | 1.459Ohm @ 120Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 268 mA @ 120 Hz | 428 mA @ 40 kHz | 514 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
|
510DX107M035CC4DCAP ALUM 100UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
510DX | Bulk | Active | 100 µF | ±20% | 35 V | 1.326Ohm @ 120Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 281 mA @ 120 Hz | 421 mA @ 40 kHz | 534 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
|
511D107M035CC4DCAP ALUM 100UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 100 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.563" (14.30mm) | - | Through Hole | |
|
|
511D107M040CC4DCAP ALUM 100UF 20% 40V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 100 µF | ±20% | 40 V | 1.939Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 232 mA @ 120 Hz | 323 mA @ 40 kHz | 981 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.563" (14.30mm) | - | Through Hole | |
|
|
511D127M050CD4DCAP ALUM 120UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 120 µF | ±20% | 50 V | 1.32Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 302 mA @ 120 Hz | 509 mA @ 40 kHz | 488 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
|
511D227M016CC4DCAP ALUM 220UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 220 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.563" (14.30mm) | - | Through Hole | |
|
|
511D227M020CC4DCAP ALUM 220UF 20% 20V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 220 µF | ±20% | 20 V | 1.472Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 266 mA @ 120 Hz | 331 mA @ 40 kHz | 900 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.563" (14.30mm) | - | Through Hole |
